Floe VSD6000 - Page 2

SHEET 2 OF 16
BILL OF MATERIALS
P/N 511-02477-00 BUNKS, FULL LEN. 8K PONTOON – 239.5”
NUMBER PART NUMBER QTY. DESCRIPTION
1 001-70118-00 8 HHCS, 3/8-16 x 3 ¾” 18-8 ss
2 001-70119-00 16 HHCS, 3/8-16 x 4” 18-8 ss
3 001-70305-00 16 HHCS, 5/8-11 x 1” 18-8 ss
4 001-71025-00 16 FLAT WASHER, 5/8” SAE 18-8 ss
5 001-76349-00 24 NUT, 3/8-16 ALUM.
6 001-76351-00 16 NUT, 5/8-11 ALUM
7 002-00123-00 8 TUBE, BUNK SUPPORT – 17.938” LG. LIFT
8 002-04285-00 8 CLAMP, BUNK CRADLE (MALE)
9 111-00359-00 8 WELD’T, LG. BUNK TUBE CLAMP 2 HOLE
10 111-00499-00 4 ASS’Y, FL 8K PONTOON BUNK – 239.5”

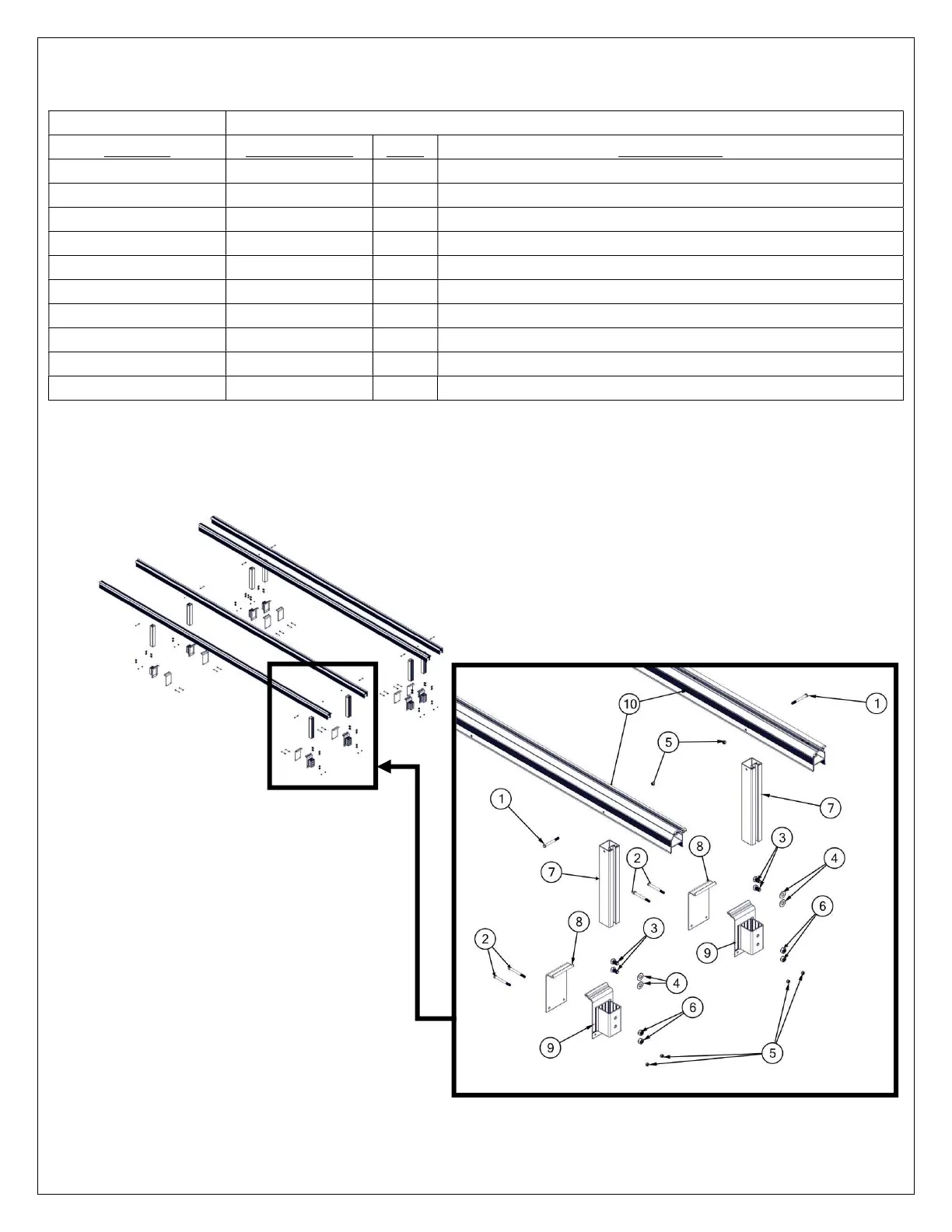

EXPLODED VIEW
4X
