BILL OF MATERIALS
P/N 511-02489-00 BUNKS, TRI-TOON ADD ON 6-10K - 203.5”
NUMBER PART NUMBER QTY. DESCRIPTION
1 001-70118-00 4 HHCS, 3/8-16 x 3 ¾” 18-8 ss
2 001-70119-00 8 HHCS, 3/8-16 x 4” 18-8 ss
3 001-70305-00 8 HHCS, 5/8-11 x 1” 18-8 ss
4 001-71025-00 8 FLAT WASHER, 5/8” SAE 18-8 ss
5 001-76349-00 12 NUT, 3/8-16 ALUM.
6 001-76351-00 8 NUT, 5/8-11 ALUM
7 002-00123-00 4 TUBE, BUNK SUPPORT – 17.938” LG. LIFT
8 002-04285-00 4 CLAMP, BUNK CRADLE (MALE)
9 111-00359-00 4 WELD’T, LG. BUNK TUBE CLAMP 2 HOLE
10 111-00452-00 2 ASS’Y, FL PON. BUNK – 203.5”

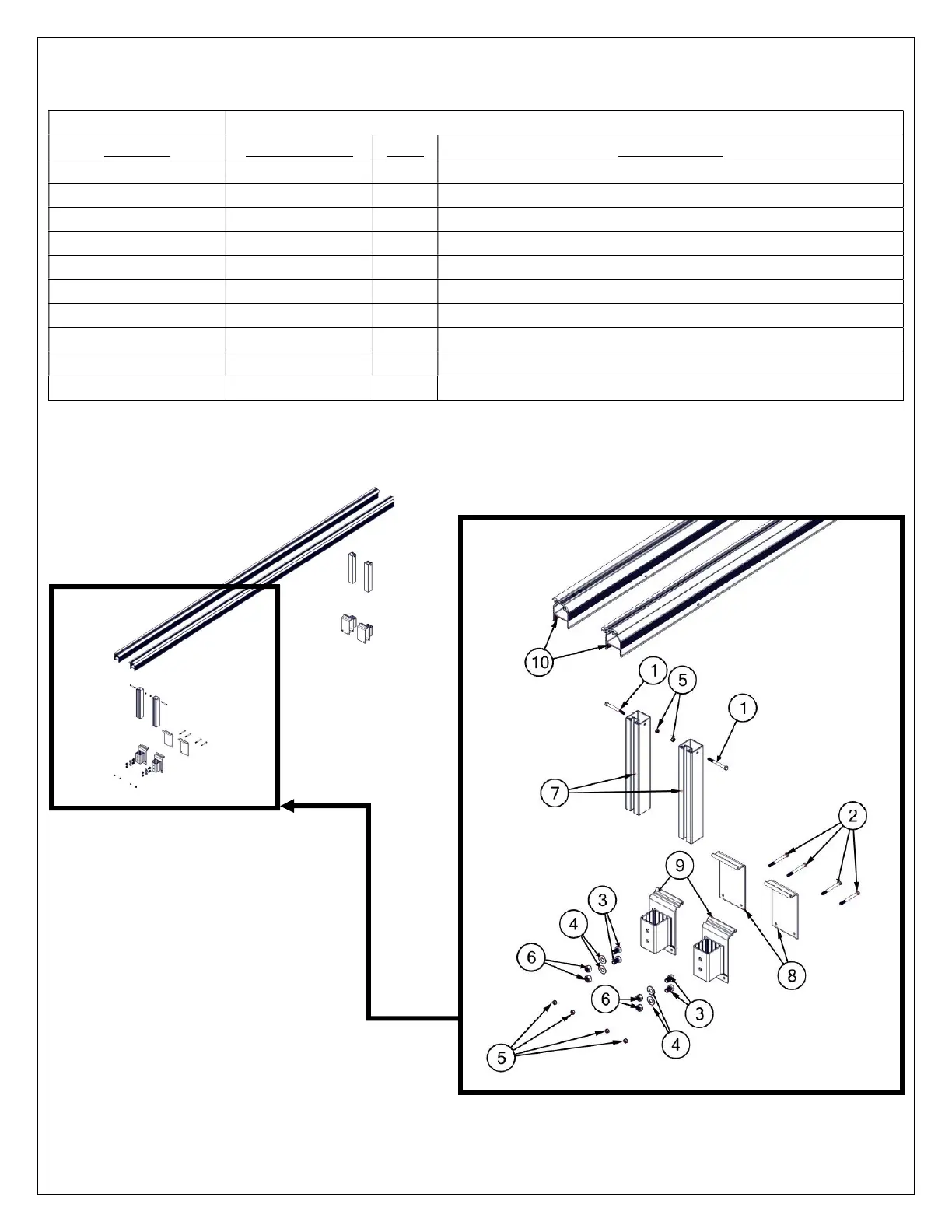

EXPLODED VIEW
2X
