SHEET 2 OF 12
BILL OF MATERIALS
P/N 511-02484-00 GI/BUNK, VSD6500/8000 PONTOON – 22’
NUMBER PART NUMBER QTY. DESCRIPTION
1 001-70114-00 4 HHCS, 3/8-16 x 2 ¾” 18-8 ss
2 001-70119-00 8 HHCS, 3/8-16 x 4” 18-8 ss
3 001-70305-00 8 HHCS, 5/8-11 x 1” 18-8 ss
4 001-71025-00 8 FLAT WASHER, 5/8” SAE 18-8 ss
5 001-76349-00 12 NUT, 3/8-16 ALUM.
6 001-76351-00 8 NUT, 5/8-11 ALUM.
7 002-04287-00 4 CLAMP, BUNK CRADLE (MALE)
8 111-00001-00 4 WELD’T, BUNK UPRIGHT (LARGE)
9 111-00006-01 2 WELD’T, POCKET – CLAMP SIDE (1) 2 HOLE
10 111-00009-01 2 WELD’T, POCKET – CLAMP SIDE (2) 2 HOLE
11 111-00491-00 1 ASS’Y, GUIDE BUNK PONTOON “A” - 264”
12 111-00492-00 1 ASS’Y, GUIDE BUNK PONTOON “B” - 264”

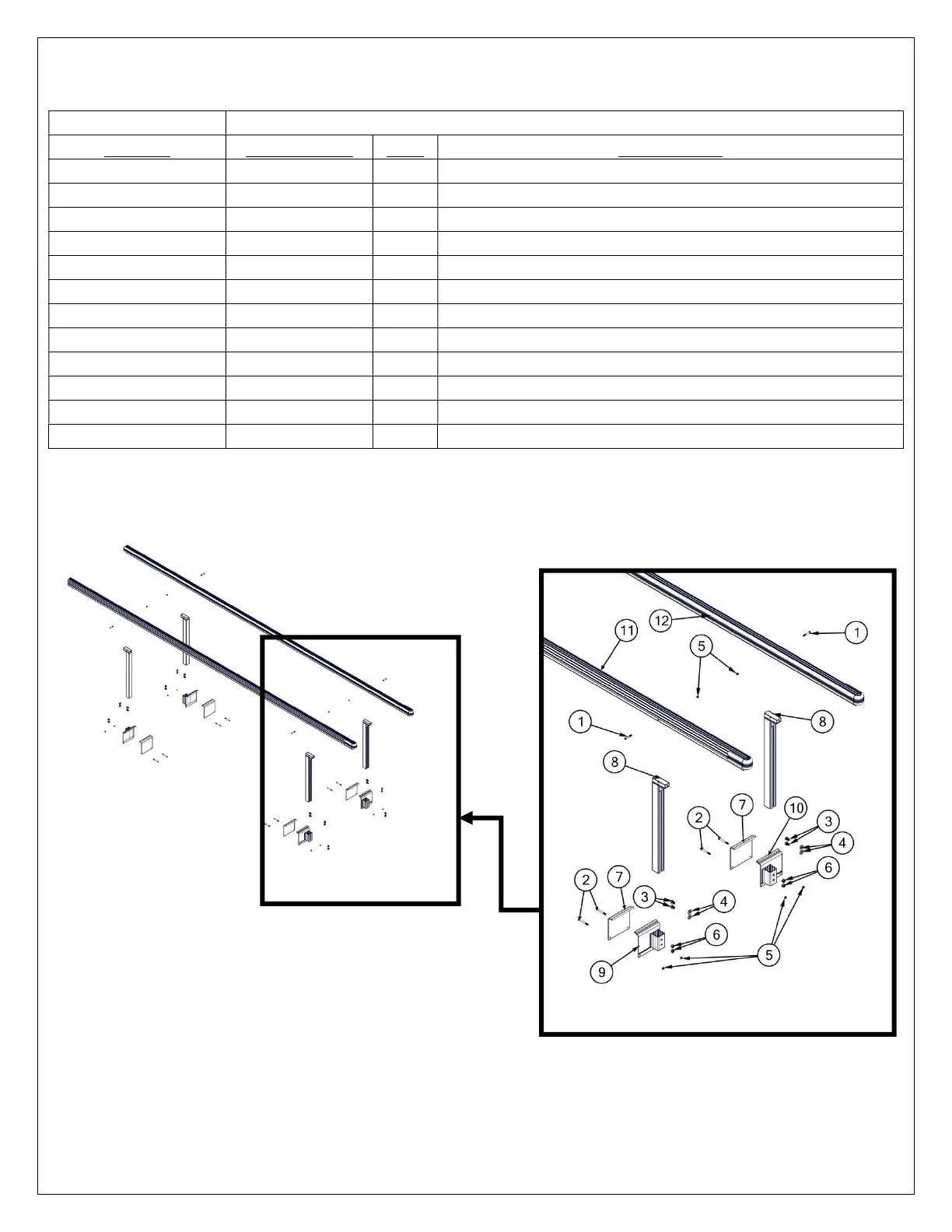

EXPLODED VIEW
2X
