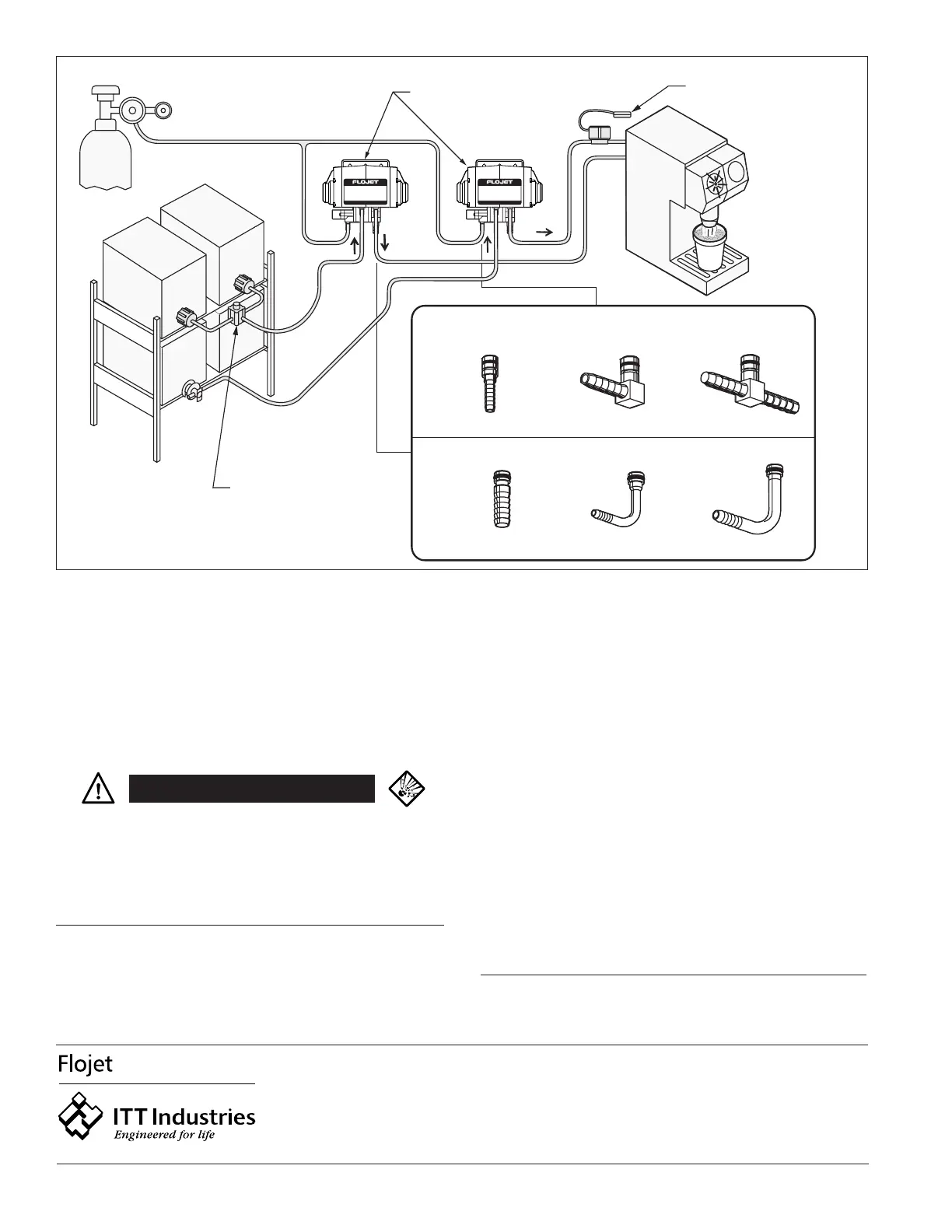

The above diagram shows a “typical bag-in-box installation” with a single
bag connection and multiple bag connection with the FLOJET Transfer
Valve assembly.
The FLOJET Part No. 1510-000, or 1520-000, or 1521-000 CO
2
shutoff
disconnect (options) is recommended to simplify pump servicing. When
the gas “IN” port is removed, the CO
2
is shut off at the port fitting. This
eliminates the need to shut off the gas supply to other systems in use. Gas
pressure is restored when the port is again plugged into the pump.
The FLOJET Part No. 1500-030, or 1500-031 transfer valve is recom-
mended for automatic unattended changeover from empty to full bag.
FLOJET Part No. 2095-502 automatic syrup sold out switch. Automatically
shuts off electric dispensing valve when syrup is sold out and turns on
“Sold-Out” light.
TROUBLE SHOOTING
1. Pump does not operate when dispensing valve opened.
• No gas pressure or obstruction in gas supply line.
• Obstruction in product discharge line or dispensing valve.
• Empty product bag has activated the automatic shut-off control.
• Bag fitment not fully engaged.
• Faulty Pump.
2. Pump operates but no flow.
• Leak or break in product inlet or discharge line.
• Empty product bag and faulty automatic shutoff.*
• Faulty pump.
3. Pump continues to operate when product is “sold out”
• Leak in suction line or faulty automatic shutoff.*
4. Low pressure at dispensing valve.
• Excessive line restriction due to undersize tubing or fittings.
• Gas pressure set too low.
5. Pump fails to restart automatically after bag replacement
• Bag fitment not fully engaged.
6. Pump fails to stop when dispensing valve is closed.
• Leak in discharge line.
• Empty product bag and faulty automatic shutoff.*
• Faulty pump.
* order FLOJET Part No. 20308-130 Auto Shutoff Valve Replacement Kit
TYPICAL BAG-IN-BOX INSTALLATION
WARRANTY
FLOJET warrants this product to be free of defects in material and/or workman-
ship for a period of five (5) years after purchase by the customer from FLOJET.
During this five (5) year warranty period, FLOJET will at its option, at no charge
to the customer, repair or replace this product if found defective, with a new or
reconditioned product, but not to include costs of removal or installation. No
product will be accepted for return without expressed authorization. All returned
goods must be shipped with transportation charges prepaid. This is only a sum-
mary of our Limited Warranty. For a copy of our complete warranty, please
request Form No. F100-248.
RETURN PROCEDURE
Prior to returning any product to Flojet, call customer service for an authoriza-
tion number. This number must be written on the outside of the shipping pack-
age. Place a note inside the package with an explanation regarding the reason
for return as well as the authorization number. Include your name, address and
phone number.
Optional stainless steel product out barb ports are available. –
3/8” (9.5 mm) Part No. 20325-030, 1/4” (6.3 mm) Part No. 20324-030,
1/2” (12.7 mm) Part No. 20606-100, 1/4” (6.3 mm) elbow Part No. 20607 - 100,
3/8” (9.5 mm) elbow Part No. 20608-100.
IF USED WITH CO
2
OR N
2
BE SURE THE AREA IS
WELL VENTILATED
ONLY USE PUMPS WITH SPECIFIED PRODUCTS. DO
NOT PUMP FLAMMABLE LIQUIDS OR USE WHERE
FLAMMABLE VAPORS ARE PRESENT
WARNING
