Operation • Repair Parts 6
For parts or assistance, call Flotec Customer Service at 1-800-365-6832
1
2
4
3

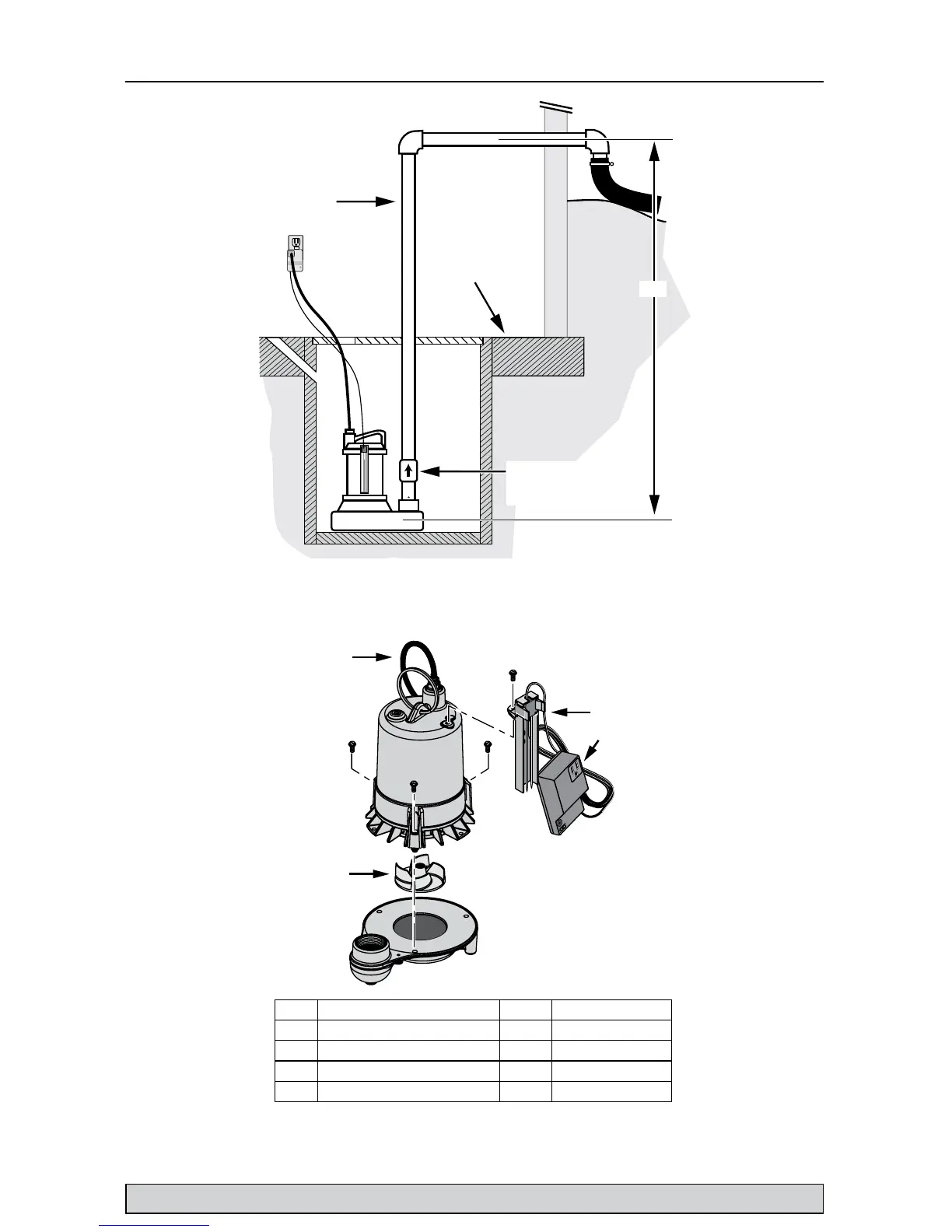

Ref. Part Description Qty. E100ELT
1 Power Cord Assembly 1 PW17-281-TSU
2 Bracket 1 PS19-102
3 IntelliShield Switch Ass’y 1 PS17-1560
4 Impeller† 1 PS5-35P
NOTICE: If motor fails, replace entire pump.
† See Page 8 for impeller replacement instructions.
Sump
Pit
Check Valve
(Install Vertically)
Basement
Floor
Discharge
Pipe
Lift
Figure 12 – LIFT: Lift is the vertical distance the
pump actually lifts water. The higher the lift, the
lower the flow.
NOTICE: The friction caused by water running
through the pipe will also, on longer pipe runs,
reduce the flow.
