Flotec FP4155 User Manual

For parts or assistance, call Flotec Customer Service at 1-800-365-6832
Installation 5
 • One1-1/4"PVCelbow
 • Onedischargetee
 • Onepressuregauge
 • Onemale1"PVCadapter
 • Enoughrigid1"PVCpipetoreachfrompumptopressure
tank to service line
 • Onefemale1"PVCadapter
 • One1"tankcross(fordiaphragmtanks)
 • Two1/4"plugs
 • One1/2"draincock
 • One10"x1"nipple
In addition to General Materials, for the FP4205,
FP4207, or FP4210 Convertible only
One ejector kit; includes ejector, venturi tube, gasket, bolts,
plug, tubing, and fittings.
Tools needed for all pump installations
Pipe wrench, pipe clamp, crescent wrench, slot screwdriver,
24-tooth hacksaw, knife or round file.
Reminder: All joints and connections must be airtight. A single pinhole leak will prevent the
proper operation of the pump. Use thread compound on all threaded connections unless
specified otherwise.

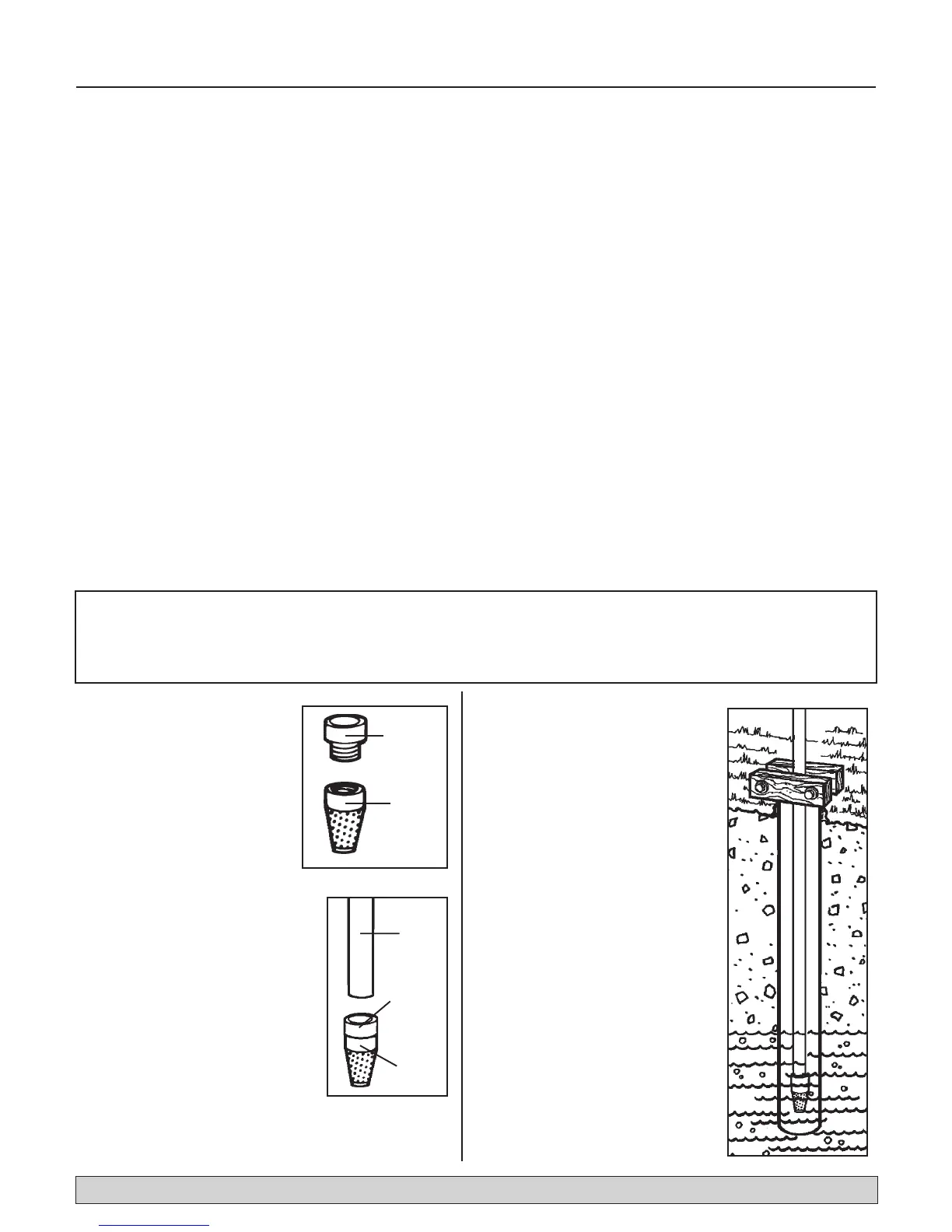

1. Thread 1-1/4" male PVC
adapter into foot valve. Hand
tighten, then tighten 1/4 turn
with crescent wrench. Seal
the threaded pipe joints with
1
Teflon™ tape or Teflon™
based pipe joint compound
approved for use on PVC.
1
E. I. DuPont de Demours and Company
Corporation, Delaware
3. Cement as many couplings and
sections of rigid PVC pipe as it
takes to equal the depth of your
well minus five feet, then firmly
clamp the assembly with a pipe
clamp to prevent the assembly
from sliding down into the well.
FOOT
VALVE
1-1/4"
MALE PVC
ADAPTER
1-1/4"
MALE PVC
ADAPTER
PVC
P PE
SECTION
FOOT
VALVE
2. Subtract five feet from the depth of
your well (see page 2 “Determine
the Depth of Your Well"). This is
the total length of rigid PVC pipe
and couplings to cement onto the
1-1/4" male PVC adapter. Cement
one section of rigid PVC pipe to the
PVC adapter which is connected
to the foot valve, then lower the
whole assembly into the well, foot
valve first. Firmly clamp the end
of the rigid PVC pipe with a pipe
clamp to prevent the assembly
from sliding down into the well.
Process C. 1. Install a shallow well pump
(FP4155, FP4157, FP4150)
Draining For Servicing or For Winter
The pump should be drained before it is disconnected for
servicing or if it is in danger of freezing. To drain:
 • Removedrainplugfrombottomofpumpcase.
 • Removedischargeteetoventthepump.
 • Drainallpipingtoapoint3feet(1meter)below
ground level.
For wells 25 feet or less in depth, the 1/2 HP FP4155, 3/4 HP
FP4157 and 1 HP FP4150 pumps are recommended. However,
the 1/2 HP FP4205, 3/4 HP FP4207, and 1 HP FP4210
convertible pumps may be adapted to shallow wells with an
ejector kit.
General Materials Required
 • OnecanPVCcement(readinstructionscarefully)
 • Onecanthreadcompound(readinstructionscarefully)
 • One1-1/4"footvalve
 • Twomale1-1/4"PVCadapters
 • Enoughrigid1-1/4"PVCpipeandcouplingstoreachfrom
bottom of well to pump
 • Onewellsealwithventplug
