Flotec FP4155 User Manual

For parts or assistance, call Flotec Customer Service at 1-800-365-6832
Installation 8
Process C. 2. Install a deep well pump
(FP4205, FP4207, FP4210)
Deep Well Pump Installation
(4" or Larger Diameter Cased Well)
For wells over 25, but not exceeding 70 feet in depth, the
1 HP Convertible Deep Well Pump is recommended. However,
the 1/2 HP or 3/4 HP Deep Well Pump may also be used for
depths not exceeding 70 feet.
General materials needed for the convertible pumps:
 • OnecanPVCcement(readinstructionscarefully)
 • Onecanthreadcompound(readinstructionscarefully)
 • Two1"femalePVCadapters
 • Enoughrigid1-1/4"and1"PVCpipeandcouplingsto
reach from bottom of well to pump (delivery pipe)
 • One1-1/4"PVCelbow
 • One1-1/4"malePVCadapter
 • OnepressureregulatorKit(includesttings,tubing,and
1/4" plug)
 • Onepressuregauge
 • Twomale3/4"PVCadapters
 • Enoughrigid3/4"PVCpipetoreachfrompumptopressure
tank to service line
 • Tanktee(fordiaphragmpressuretanks)
 • Two1/4"plugs
 • One1/2"draincock
In addition to General Materials for Deep Well Pumps
 • One1-1/4"footvalve
 • One1-1/4"closenipple
 • Oneejector
 • One1"x5"nipple
 • One1-1/4"femaleadapter
 • Onewellseal
 • Enoughrigid1"PVCpipeandcouplingstoreachfrom
bottom of well to pump (pressure pipe)
 • One1"PVCelbow
 • Two1-1/4"malePVCadapters
 • One1"x4"nipple
Reminder: All joints and connections must be airtight. A single pinhole leak will prevent the
proper operation of the pump. Use thread compound on all threaded connections unless
specified otherwise.

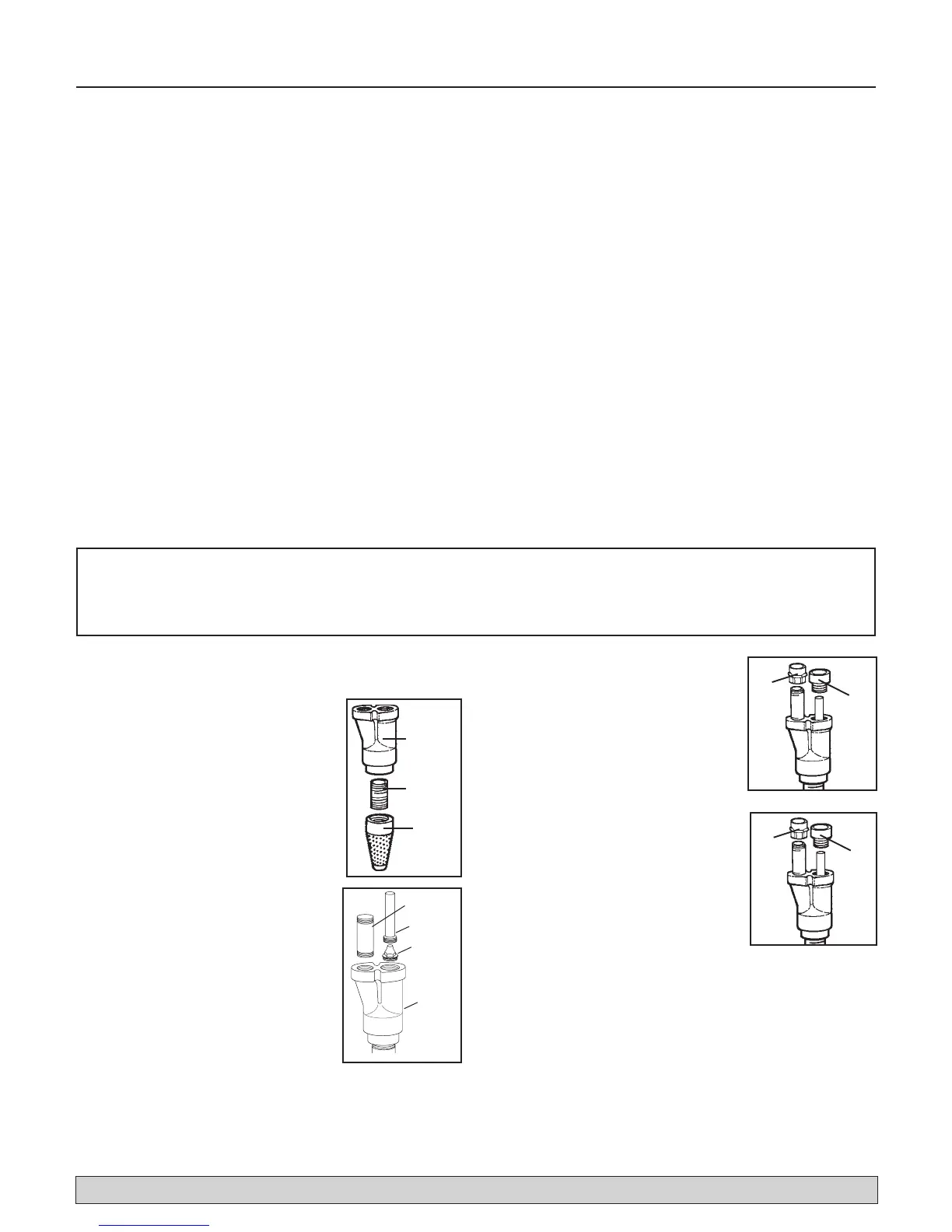

1. Thread 1-1/4" close nipple into foot
valve. Thread the other end of 1-1/4"
close nipple into bottom of deep well
ejector. Hand tighten, then tighten
1/4 turn with pipe wrench.
2. The ejector has two holes in the top
of it. Confirm nozzle is installed.
Thread deep well venturi tube (longer
tube) into larger hole until snug.
Thread 1" x 5" nipple into smaller
hole. Only hand tighten venturi tube.
Hand tighten nipple 1/4 turn with
pipe/crescent wrench.
1-1/4"
CLOSE
NIPPLE
EJECTOR
FOOT
VALVE
6392 0211
To Install A Convertible Jet Pump:
3. Thread a 1-1/4" male PVC adapter
over the venturi tube and into
ejector. Thread a 1" female PVC
adapter onto the 1" x 5" nipple.
Hand tighten adapters 1/4 turn with
pipe/crescent wrench.
1" FEMALE
PVC
ADAPTER
1-1/4" MALE
PVC
ADAPTER
4. Subtract five feet from the depth of
your well. This is the total length
of PVC pipe and couplings to
cement onto both 1-1/4" male and
1" female PVC adapters. Cement
a section of PVC pipe to each
adapter, then lower the whole
assembly into the well, foot valve
first. Firmly clamp the end of the
PVC pipes with a pipe clamp to prevent the assembly from
sliding down into well.
1" FEMALE
PVC
ADAPTER
1-1/4" MALE
PVC
ADAPTER
Ejector
Nozzle
Venturi
1" x 5"
Nipple
