Flow ESL INTENSIFIER - Sub-assemblies: Piston Assemblies; 60 K Piston Assembly; 40 K Piston Assembly

010561-1 (Rev. D)

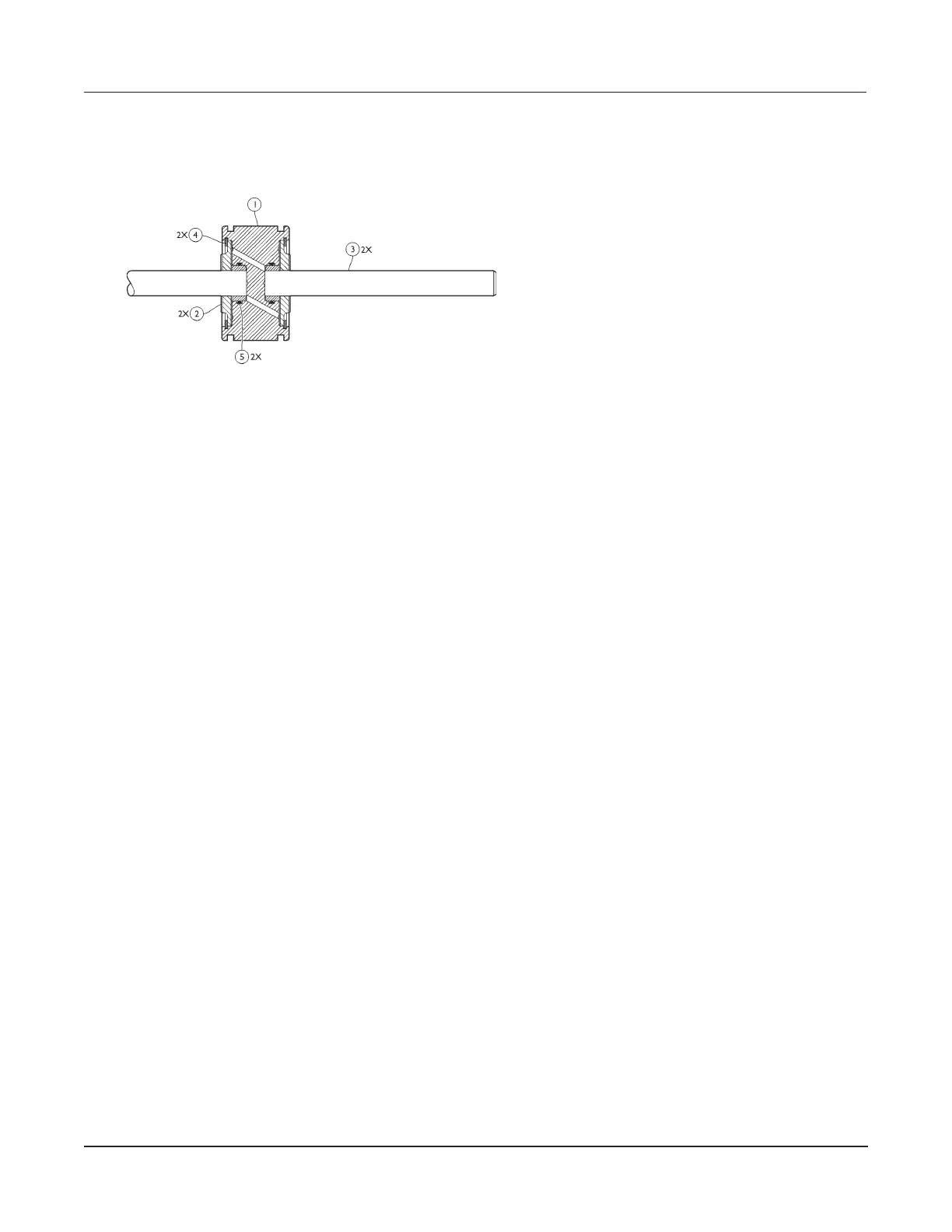

60K piston assembly
Item Part # Qty Description
1 007026-1 1 Piston biscuit
2 007029-1 2 Biscuit spacer
3 010253-1 2 Ceramic plunger assy
4 A-0270-300 2 Snap ring
5 A-00251-18 2 T-seal
013763-1 (Rev. A)
40K piston assembly
Item Part # Qty Description
1 007201-1 1 Piston biscuit
2 006881-1 2 Biscuit spacer
3 013458-1 2 Ceramic plunger assy
4 A-0270-300 2 Snap ring
5 A-00251-22 2 T-seal
36 | M-310 © Flow International Corporation
ESL Intensifier
