Flow ESL INTENSIFIER - Sub-assemblies; Check Valve Assembly

Sub-assemblies
010559-X (Rev. G)

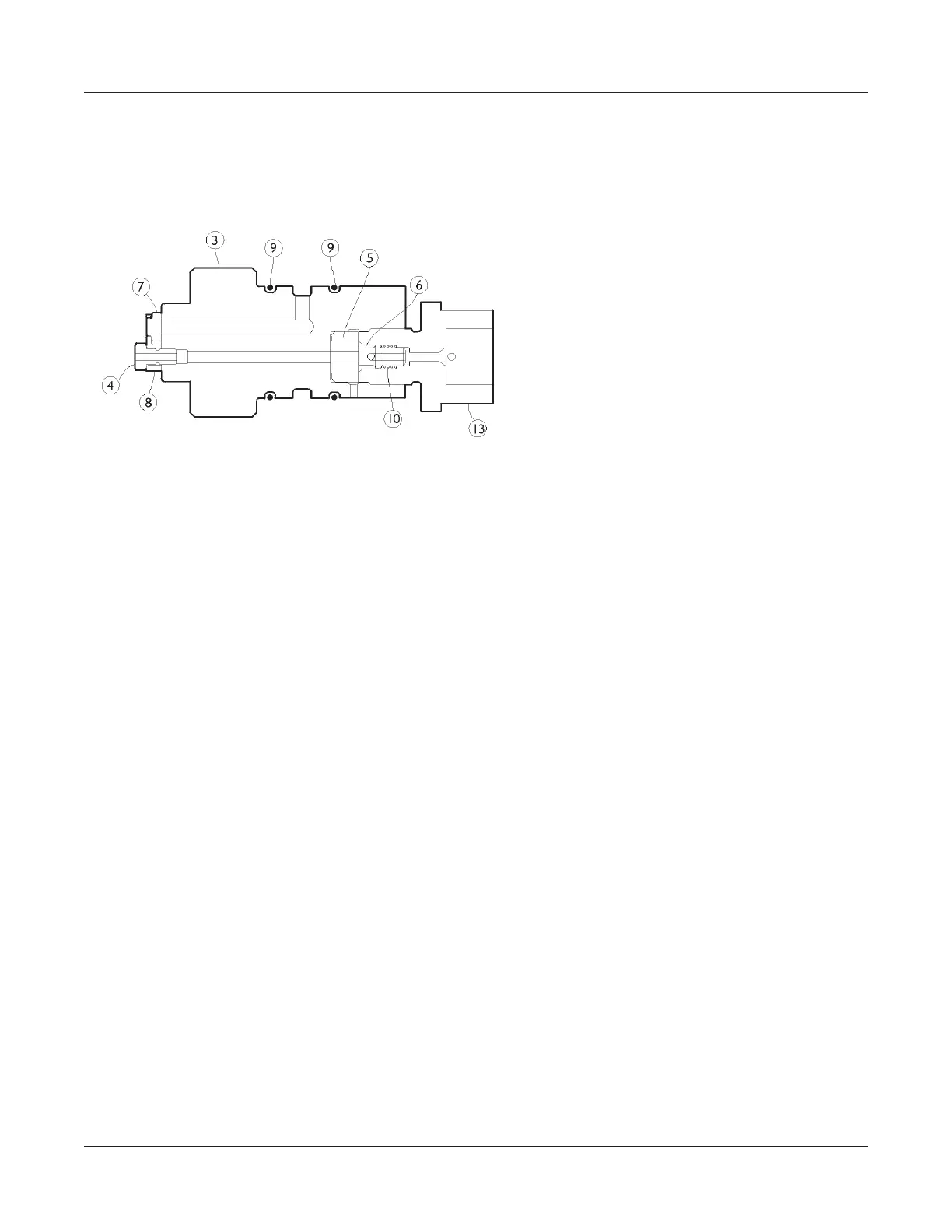

Check valve assembly
Item Part # Qty Description
2 004383-2 1 Check valve body (-2 only)
3 004383-3 1 Check valve body (-3 only)
4 004380-1 1 Inlet retaining screw
5 004382-1 1 Insert
6 005917-1 1 Outlet poppet
7 015384-1 1 Inlet poppet
8 010564-1 1 Support assembly
9 A-0275-125 2 O-ring
10 A-1606 1 Compression spring
11 A-2185 AR Blue Lubricant *
12 A-3202 AR Loctite #242 *
13 C-1313-1 1 Outlet body
* not shown
010559-2 40,000 psi valve
010559-3 60,000 psi valve
