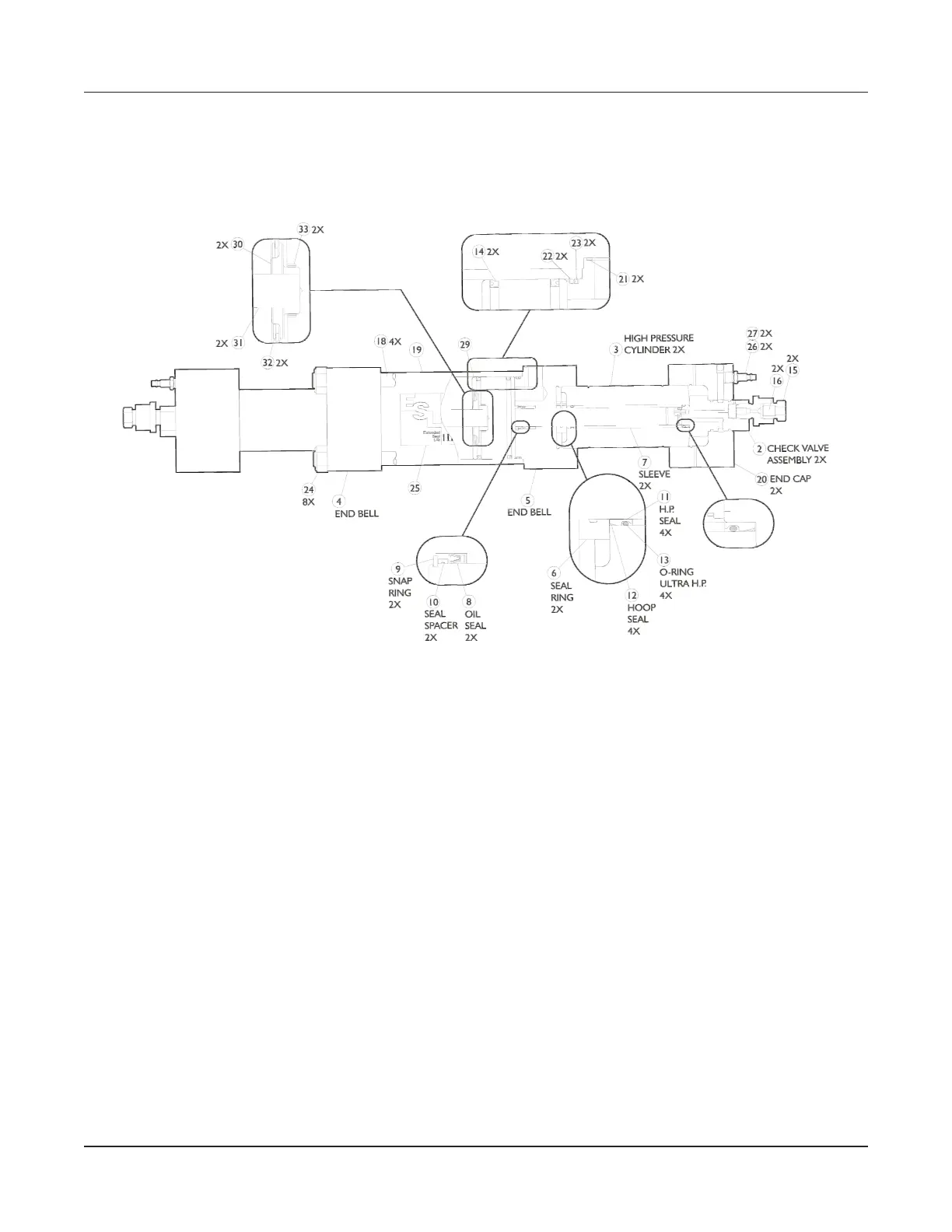

Top assemblies
010558-3 (Rev. O)
60K intensifier assembly
Item Part # Qty Description
3 007038-3 2 Cylinder end
4 007303-2 1 End bell assembly
5 007303-1 1 End bell assembly
6 B-1465-1 2 Seal ring
7 B-1002-2 2 Seal backup sleeve
8 A-11275 2 Rod seal
9 A-0264-112 2 Snap ring
10 010276-1 2 Oil seal spacer
11 004406-1 4 High-pressure seal
12 004407-1 4 Hoop seal
13 B-8075-119 4 Ultra HP o-ring
14 A-1001 2 Poly pak seal
15 A-2838 2 High-pressure gland
16 A-2839 2 High-pressure collar
17 A-4689 AR Food grade grease
18 B-1000-2 4 Tie rod
19 C-1000-1 1 Low-pressure cylinder
20 321276 2 End cap
21 A-00633-023 2 O-ring
22 A-0275-240 2 O-ring
23 A-00250-240 2 Backup ring
Item Part # Qty Description
24 A-1000 8 Hex nut
25 010640-1 1 Label
26 004345-1 2 Quick coupling nipple
27 A-0274-6 2 O-ring
28 A-2185-2 AR High friction lubricant*
29 007026-1 1 Piston biscuit
30 007029-1 2 Biscuit spacer
31 010253-1 2 Plunger assembly
32 A-0270-300 2 Snap ring
33 A-00251-18 2 Rod T-seal
38 004383-3 2 Check valve body
39 004380-1 2 Retaining screw
40 004382-1 2 Intensifier insert
41 005917-1 2 Outlet poppet
42 010564-1 2 Inlet support
43 A-0275-125 4 O-ring
44 A-1606 2 Compression spring
45 C-1313-1 2 OUtlet body
46 015384-1 2 Inlet poppet
47 A-2185 AR Blue Lubricant*
48 A-3202 AR Loctite*
* not shown
© Flow International Corporation M-310 | 33
ESL Intensifier
