Flow ESL INTENSIFIER - Manifold Assembly, Mechanical Shift

010639-X (Rev. H)

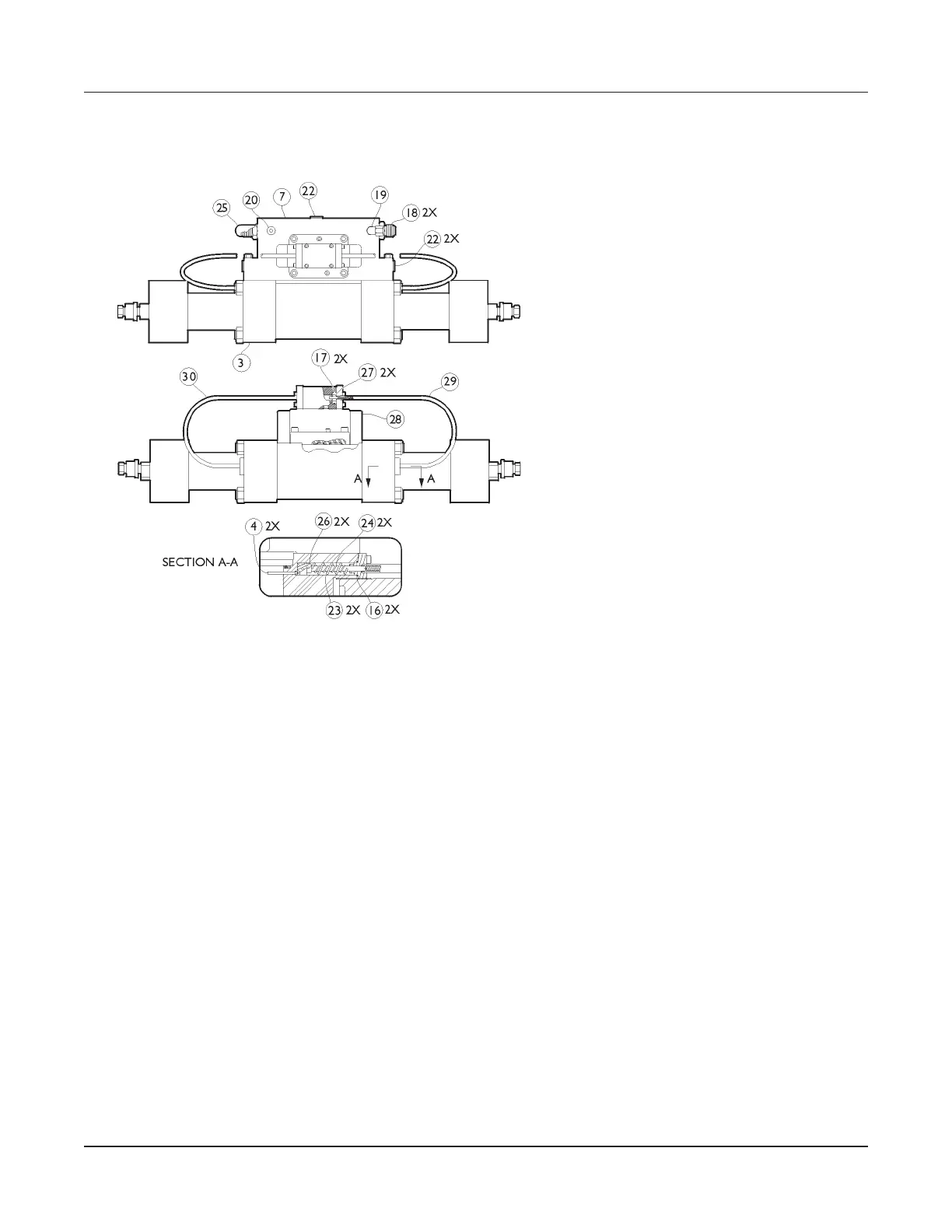

Manifold assembly, mechanical shift
Item Part # Qty Description
3 010558-30 1 Intensifier assembly
4 002226-1 2 Actuator pin
7 013403-1 1 Manifold
16 A-0275-014 2 O-ring
17 A-0275-019 2 O-ring
18 A-0636-23 2 Connector
19 A-0638-3 1 Elbow
20 A-0641-6 1 Plug
22 A-0641-7 3 Plug
23 A-1012 2 Spring
24 A-1713 2 Compression spring
26 B-1007-1 2 Actuating plunger
27 B-1611-1 2 Shift pin
28 A-11215 1 Shift valve/pilot valve assy
(C-2743-1, shift valve & 006869-1, pilot valve)
29 C-5461 1 Cable guide assembly, RH
30 C-5462 1 Cable guide assembly, LH
ESL Intensifier
