INSTALLATION INSTRUCTIONS
62
REMOTE "OPEN THERM"
A
SeSe
TaNL
B
Ta
Outside
temperature
sensor (option)
Ta
B
L
N Ta
Se Se
A
REMOTE "OPEN THERM"
Telephone control

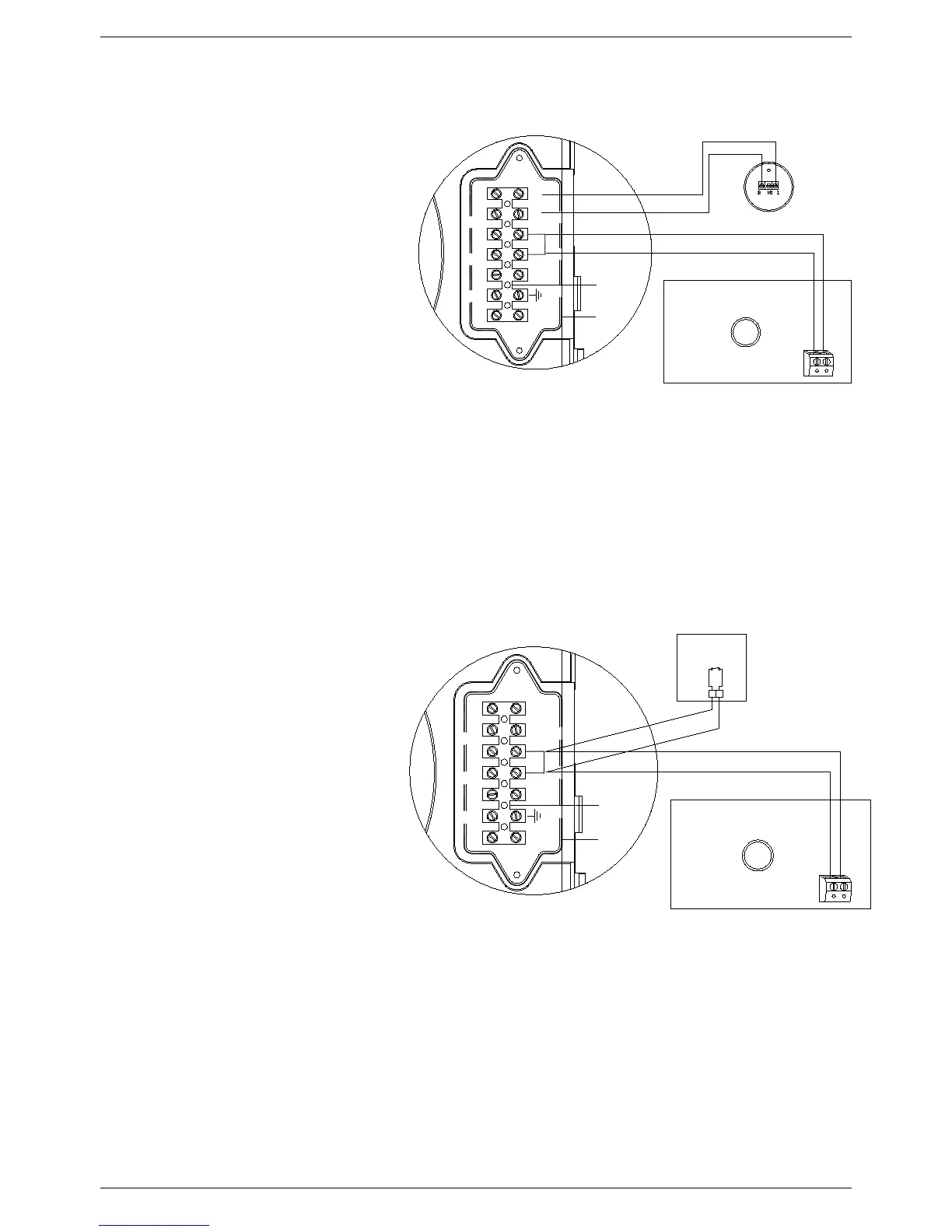

Connecting the remote controller the outside temperature sensor (option)
Connect the wires to the terminal board
inside the instrument panel as follows:
a. switch off the power supply at the main
switch.
b. remove the front case panel of the water
heater.
c. slacken the screws and remove plate A
(see fig.1).
d. remove jumper TA-TA from the terminal
board B;
e. connect the remote controller wires;
f. connect the outside temperature sensor on
contacts marked as SE-SE on the terminal
board B.
When the wires have been connected, place plate “A" back to position and then the front case panel.
Connecting the remote controller and the telephone control (option)
Connect the wires to the terminal board inside the instrument panel as follows:
a. switch off the power supply at the main
switch.
b. remove the front case panel of the water
heater.
c. slacken the screws and remove plate A
(see fig.1).
d. remove jumper TA-TA from the terminal
board B;
e. connect the remote controller and the
telephone control wires;
f. Active the telephone control through the
parameter no.16 (see 5.1 “Parameters
Table”)
When the wires have been connected, place
plate “A" back to position and then the front
case panel.
Fig. 2
Fig. 1
