5.0 ELECTRICAL WIRING

Warning: Electrical Hazard

Disconnect power before beginning installation.

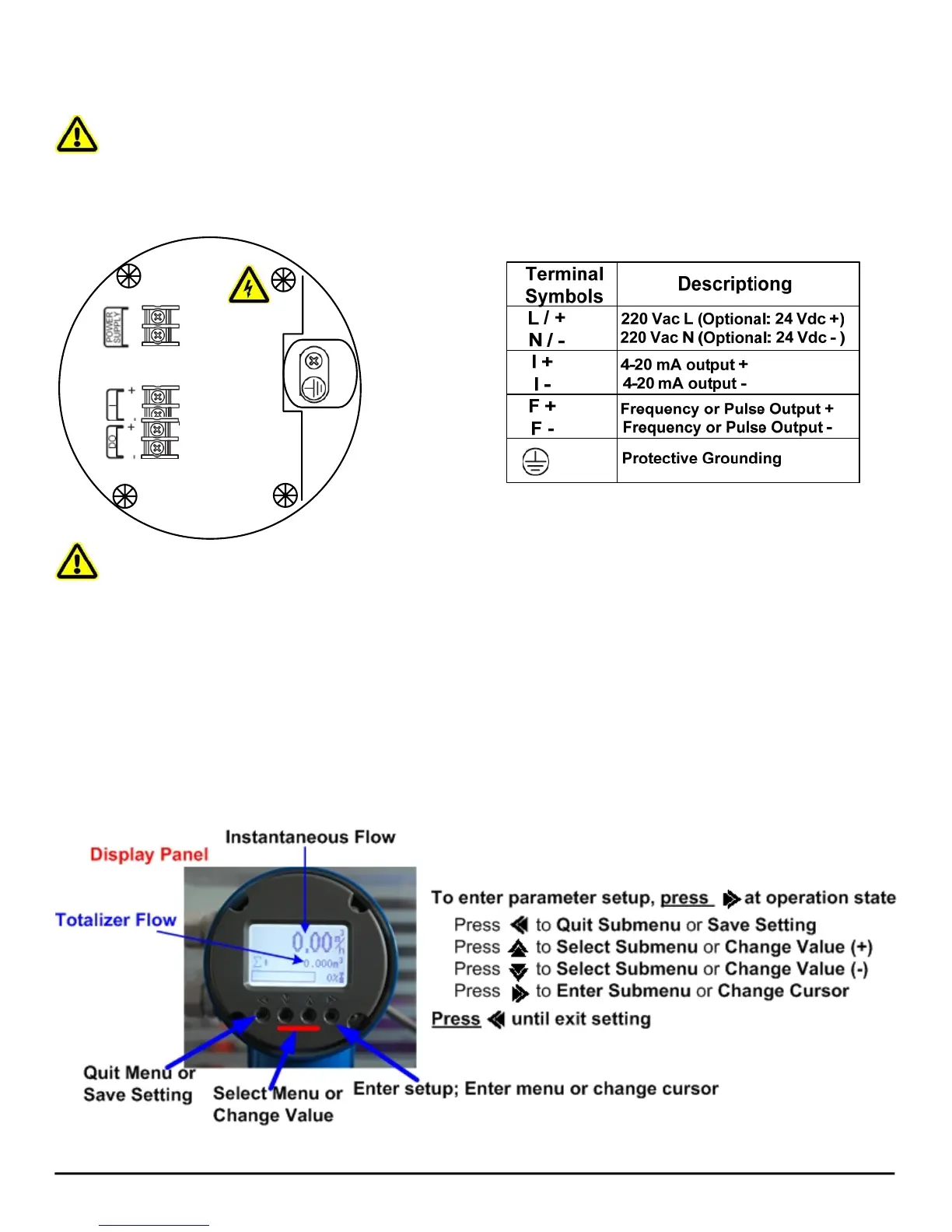

Terminal Configuration

Electrical

Shock Hazard

L/+

N/-

F+

F -

I+

I -

Terminal Wiring

Warning: The mag flow meter is powered by EITHER 220Vac OR 24V DC. Please use

right power supply or maybe cause permanent damage on meter.

6.0 PROGRAMMING AND SETUP

The display panel comes preprogrammed from the factory and in most instances will not require

any additional manipulation. However, if you will be using the flow signal outputs or need to

reprogram the meter to suit your particular needs, it will be necessary to familiarize yourself

with the programming procedures.

Figure 2. Enter Parameter and Display Panel Illustration
