Flowserve FlowAct Series User Manual

FlowAct Diaphragm Linear Actuator FCD VLENIMFACTA4 10/16
61
flowserve.com
Item #
Part
WW EU
202 6.1 Diaphragm Casing
203 6.2 Diaphragm Casing
211 6.12 Stem
220 6.14 Disk (2x)
225 6.16 Diaphragm (2x)
227 6.15 Diaphragm Plate (2x)
228 6.13 Spacer Bushing (2x)
229 6.21 Actuator Spring
231 6.22 Distance Plate (2x)
253 6.8 Lower Guide Bushing
254 6.80 Plain Bearing (2x)
255 6.18 Thrust Washer (2x)
258 6.26 Vent Plug (2x)
272 6.17 O-Ring (2x)
273 6.11 Scraper Ring
275 6.10 O-Ring (2x)
276 6.9 O-Ring (3x)
279 6.46 O-Ring (18x)
326 6.23 Spring Adjusting Plate (2x)
334 6.45 Hexagon Bolt (18x)
335 6.3.1 Hexagon Bolt - short (40x)
1)
336 6.3.2 Hexagon Bolt - long (8x)
1)
337 6.5 Plain Washer (48x)
1)
339 6.25 Protection Sleeve (8x)
348 6.20 Special Nut
349 6.19 Lock Washer (2x)
351 6.4 Hexagon Nut (48x)
373 6.82 Intermediate Guide Bushing
374 6.47 Distance Bushing (2x)
380 6.81 Stem Extension
1)
Alternatively, hex head assembled screws with captive flat washers are used for this application.
380
349
374
228
227
220
272
225
255
211
336
335
337
203
258
202
276
279
334
202
373
254
258
276
279
334
351
339
273
275
229
326
231
275
202
253
254
276
279
334
348
374

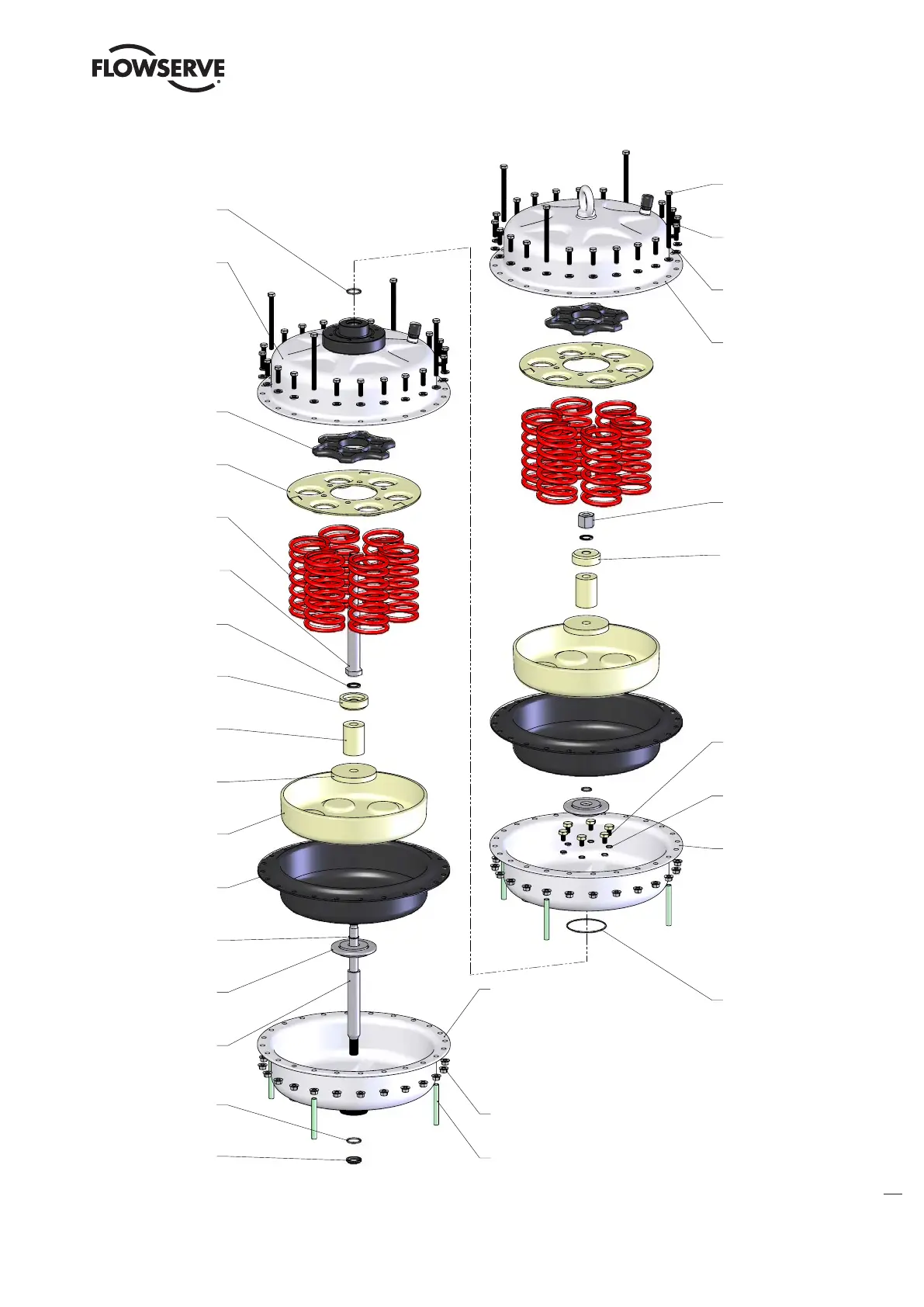

Table 36: Actuator parts Figure 33: Actuator parts
