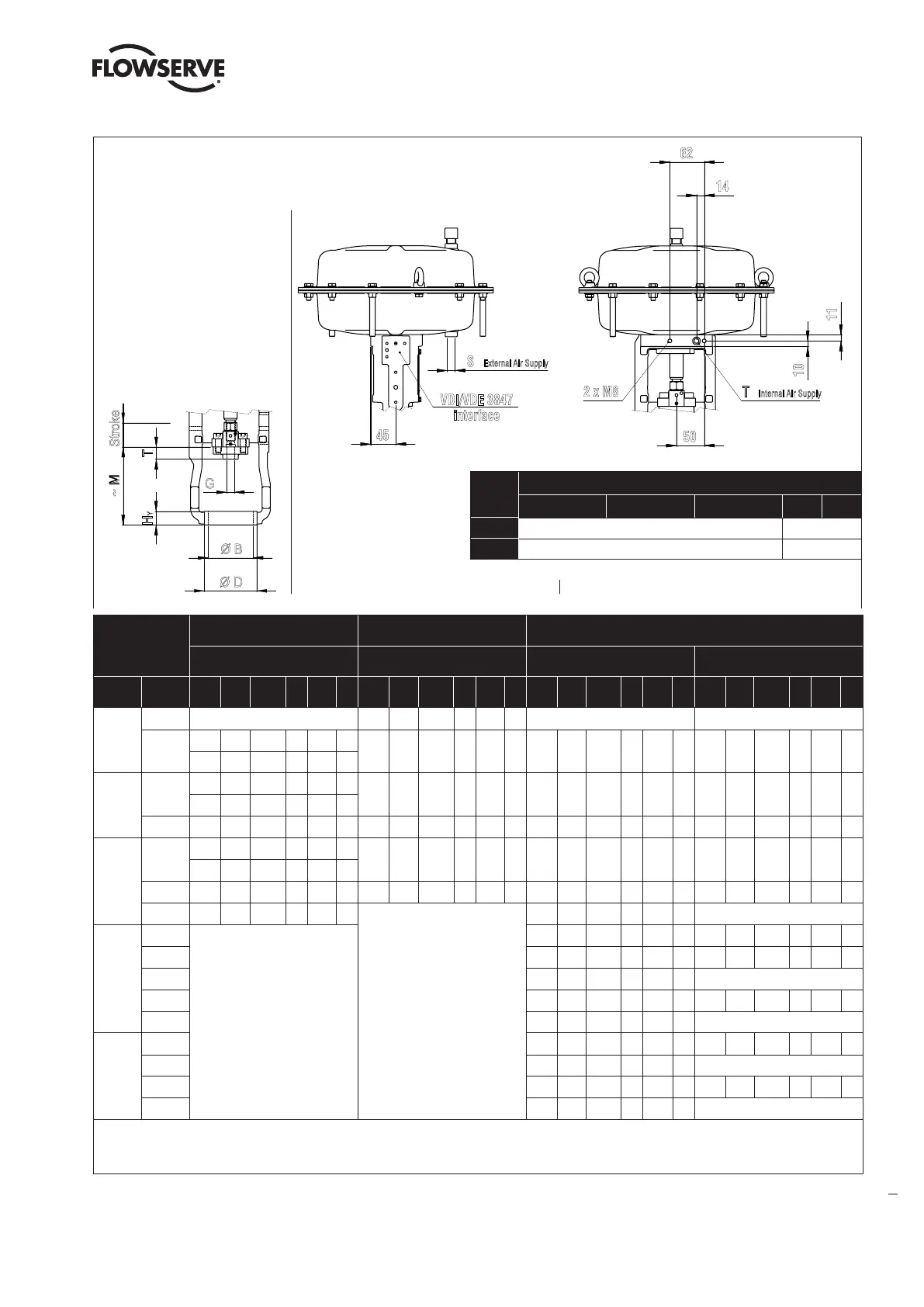

Yoke - connection dimensions (mm)
50
62
10
11
14
2 x M8
T Internal Air Supply
VDI/VDE 3847
interface
45
S External Air Supply
Ø B
G
T
~ M
HY
Ø D
Stroke
50
62
10
11
14
2 x M8
T Internal Air Supply
VDI/VDE 3847
interface
45
S External Air Supply
Additional interface for MULTI function yoke only Additional internal air supply for IAS and MULTI-yoke only
Yoke dimen-
sions
IAS-Yoke for MULTI-Yoke for NAMUR-Yoke for
Valtek GS FlowTop, Valtek CS FlowTop FlowPro
1)
, VariCool
Size Stroke Ø B ~ M G T Ø D H
Y Ø B ~ M G T Ø D HY Ø B ~ M G T Ø D HY Ø B ~ M G T Ø D HY
250
10 - 65 110 M12 23 95 20 - -
20
49 106 M12 18 75 20
65 105 M12 23 95 20 65 105 M12 12 95 20 82 150 M16 16 115 25
65 106 M16 18 90 20
500
20
49 144 M12 54 75 20
65 105 M12 23 115 20 65 105 M12 16 95 20 82 150 M16 16 115 25
65 145 M16 59 90 20
40 82 140 M20 22 110 25 82 140 M16 25 115 25 82 140 M16 16 115
25 82 140 M20 20 115 25
700
20
49 144 M12 54 75 20
65 105 M12 23 115 20 65 105 M12 16 95 20 82 150 M16 16 115 25
65 145 M16 59 90 20
40 82 140 M20 22 110 25 82 140 M16 25 115 25 82 140 M16 16 115 25 82 140 M20 20 115 25
60 82 148 M20 34 110 25
-
82 150 M20 20 125 25 -
1500 20
-
65 105 M12 29 110 20 82 150 M16 20 110 20
40 82 140 M16 29 105 25 82 140 M20 29 105 25
60 82 150 M20 29 105 25 -
80 82 140 M20 29 105 25 82 140 M20 29 105 25
100 82 140 M20 29 105
25 -
3000 40 82 140 M16 29 105 25 82 140 M20 29 105 25
60 82 150 M20 29 105 25 -
80 82 140 M20 29 105 25 82 140 M20 29 105 25
100 82 140 M20 29 105 25 -
1)
ATTENTION: FlowPro with Nominal Size DN 25 or 1”, Stroke 20 mm:
Packing Design -> adjustable -> Ø B = 65 mm, M = 105 mm, G = M12, Ø D = 95 mm and HY = 20 mm only !
Packing Design -> spring loadet -> Ø B = 82 mm, M = 170 mm, G = M12 only !
Table 2: Basic safety massages for installing the actuator
Air
Supply
Actuator Size
250 500 700 1500 3000
T
G 3/8 (Plug acc. to DIN 908 & O-ring 10x2 mm - if appl.) -
S
G 1/4 (Plug acc. to DIN 906 - if applicable, G 1/2 - DVGW) G 1/2
