12

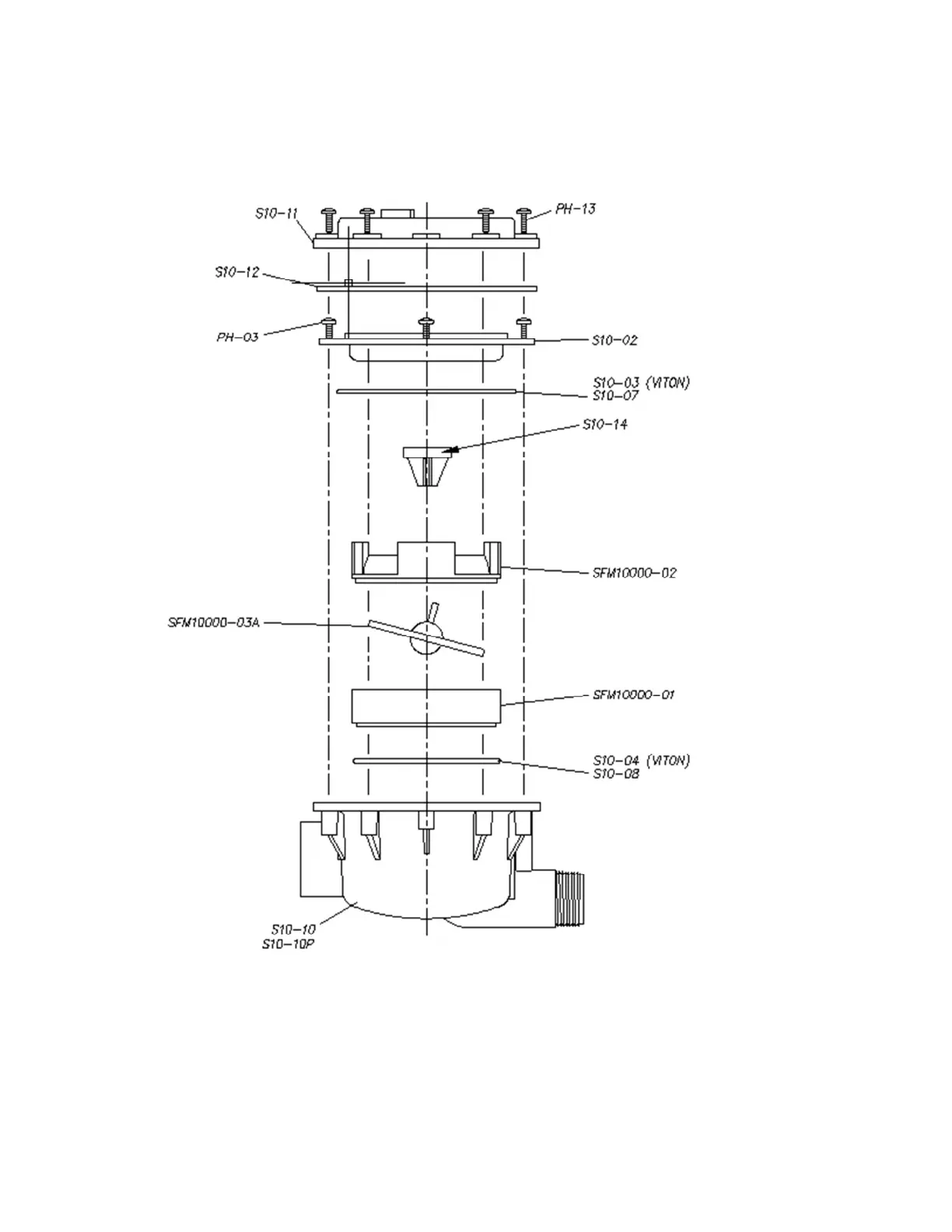

Figure 3: SEM-10 and SEM-10FT Parts Diagram
Note:
S10-05N is 90° Nylon Housing
S10-10 is Nylon flow through Housing
S10-10P is Polypropylene flow through Housing
