STEP 3: INSTALL FLUSH VALVE (CONTINUED)

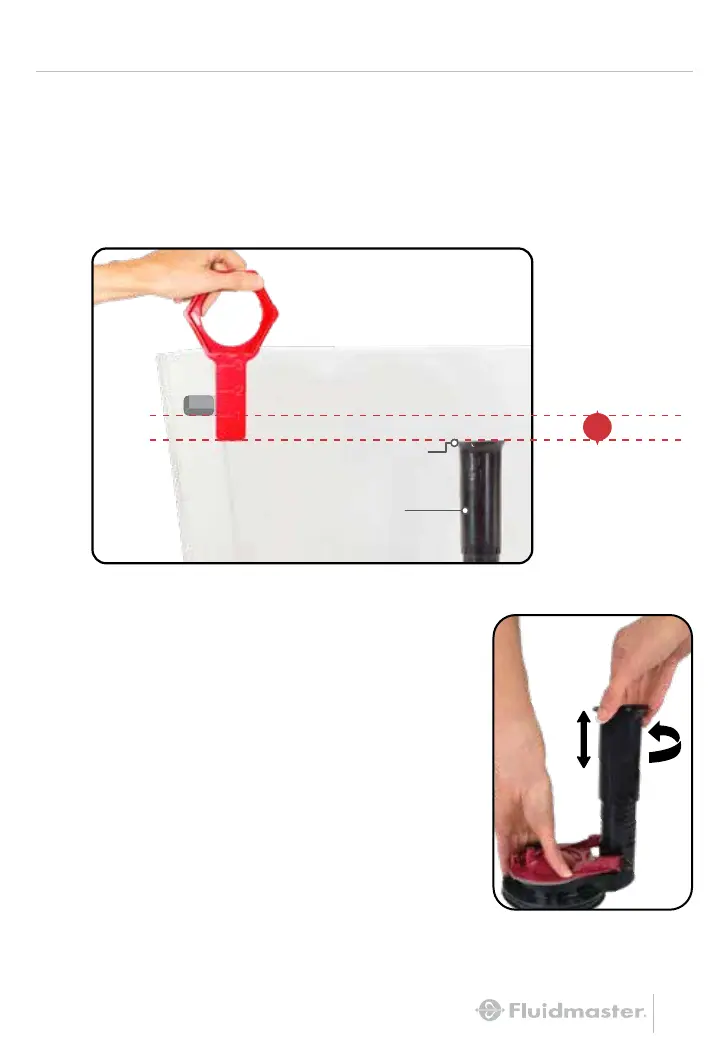

B: USE RULER ON THE RED WRENCH TO MEASURE
AND ADJUST NEW FLUSH VALVE
Mark the ush valve 1” below bottom of tank lever hole.
NOTE: The top of the overow pipe must be at minimum of 1” below
the tank lever hole.
TOP OF
OVERFLOW PIPE
Overow
Pipe
Lever Hole
1"
BOTTOM OF
TANK LEVER HOLE
Adjusted
Height
C: ADJUST FLUSH VALVE HEIGHT
Twist to unlock, pull or push to correct
height, twist to lock in place.
