TROUBLESHOOTING
STEP 8: AT TACH /
RE-SECURE LID
TURN
COUNTER-
CLOCKWISE
STEP 5: WATER SUPPLY CONNECTION
& FINE-TUNE TANK WATER LEVEL
A: Turn on water & flush
water supply line.
B: Turn off water & connect
water supply line to cistern
with approved fittings.
Hand-tighten only.
DO NOT OVERTIGHTEN.
C: Turn on water & check
for leaks.
D. FLUSH THE CISTERN TO CHECK THE TANK WATER LEVEL
After the water stops filling the tank, the water level should be at
water line “WL” mark (255mm) to ensure a proper flush.
WL
255mm
Tank Water Level
Adjustment Screw
+
–
STEP 6: AT TACH LINK (IF REQUIRED)
A: Secure link into position.
B: Set seat onto link to mark desired seat end point & cut point.
C: If cut required, cutting line guides reference on back of link
as needed.
Mini Hack Saw
Seat End
Point
Cut Point
23mm
IF THE INLET VALVE:
• DOES NOT TURN ON
• WON’T TURN OFF
• WON’T REFILL TANK
REMOVE CAP AND CHECK FOR DEBRIS
A: Turn off water supply.
B: Flush cistern.
C: With right hand push float up, grip and hold shaft under float.
D: With left hand twist cap and lever arm counterclockwise to
unlock cap. Let cap hang on float cup.
E: Hold empty cup upside down over uncapped valve to prevent
splashing.
F: Turn water supply on and off a few times.
G: Turn water supply off.
H: Replace valve cap.
• Place cap assembly on top of gray valve body
by aligning cap arm and adjustment rod.
• Press down on top cap while rotating top & arm
clockwise to locked position.
See Our Troubleshooting
HOW-TO VIDEO
http://bit.ly/2yAdZn7
VIDEO
* Always use genuine Fluidmaster parts when installing or repairing. Fluidmaster will not be responsible or liable
for use of non-Fluidmaster parts during installation or repair.
STEP 3: INSTALL FLUSH PIPES
A: Trim / Cut Flush Pipe as needed.
B: Lubricate kee-seal with soap and water. Insert flush
pipe and connect to pan.
C: Fit Flush pipe coupling nut and double cone washer
wedge seal onto flush pipe. Hand-tighten Flush pipe
coupling nut and secure flush pipe to outlet valve shank.
DO NOT OVERTIGTHEN
90° Elbow Flush Pipe
(FM10)
Cut this
side only
Flush Pipe
Coupling Nut
(FM9)
Double Cone Washer
Flush Pipe Wedge Seal
(FM8)
Fluidmaster Australia Holdings Pty Ltd
5B/100 New Street
Ringwood, Victoria 3134
Australia
Phone: +61 (03) 8870 2555 | Toll Free: 1 800 931 166
IN NEW ZEALAND Call 09 415 5585
Email: salesau@fluidmaster.com
Website: www.Fluidmaster.com.au
WARRANTY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
To present claims under this warranty, please contact your place of purchase or contact Fluidmaster Australia
Holdings Pty Ltd. NOTE: Original proof of purchase required.
Warranty excludes incorrect installation. Installation shall be in accordance with AS/NZS 3500.1 and AS/NZS
3500.2 (Install with licensed plumber; any installation processed without licensed plumber will void warranty)
5 Year Parts Replacement / 1 Year Parts & Labor. For Commercial = 1 Year Parts Replacement.
Only clean with soap and warm water to maintain quality finish. Do not use harsh chemical cleaners.
DO NOT USE IN-CISTERN DROP-IN TOILET BOWL CLEANERS CONTAINING BLEACH OR
CHLORINE. Use of such products will: (1) RESULT IN DAMAGE to Cistern components and
MAY CAUSE FLOODING and PROPERTY DAMAGE and (2) VOID FLUIDMASTER WARRANTY.
DO NOT overtighten nuts or cistern/bowl may crack. Always use quality Fluidmaster
parts when installing or repairing. Fluidmaster will not be responsible or liable for use of
non-Fluidmaster parts during installation or repair.
WARNING
20-0032 Grev. 1, 11/20
ADDITIONAL QUESTIONS?
For installation assistance, contact our
technical services department.
EMAIL, or CALL our toll-free number.
INSTALLATION
STEP 7: INSTALL SEAT
A: Insert Seat Bolt Plates in Connection
plate (follow arrow guides).
For Link Application
Insert link to seat connection plate.
Set seat bolts into pan holes and
hand-tighten seat bolt nuts.
For Non-Link Application
Set seat bolts into pan holes and
hand-tighten seat bolt nuts.
20mm
Seat Bolt
(FM13)
Seat Plate
(FM14)
STEP 4: HANG CISTERN TANK
FIXED HOLE
RIGHT
www.Fluidmaster.com.au

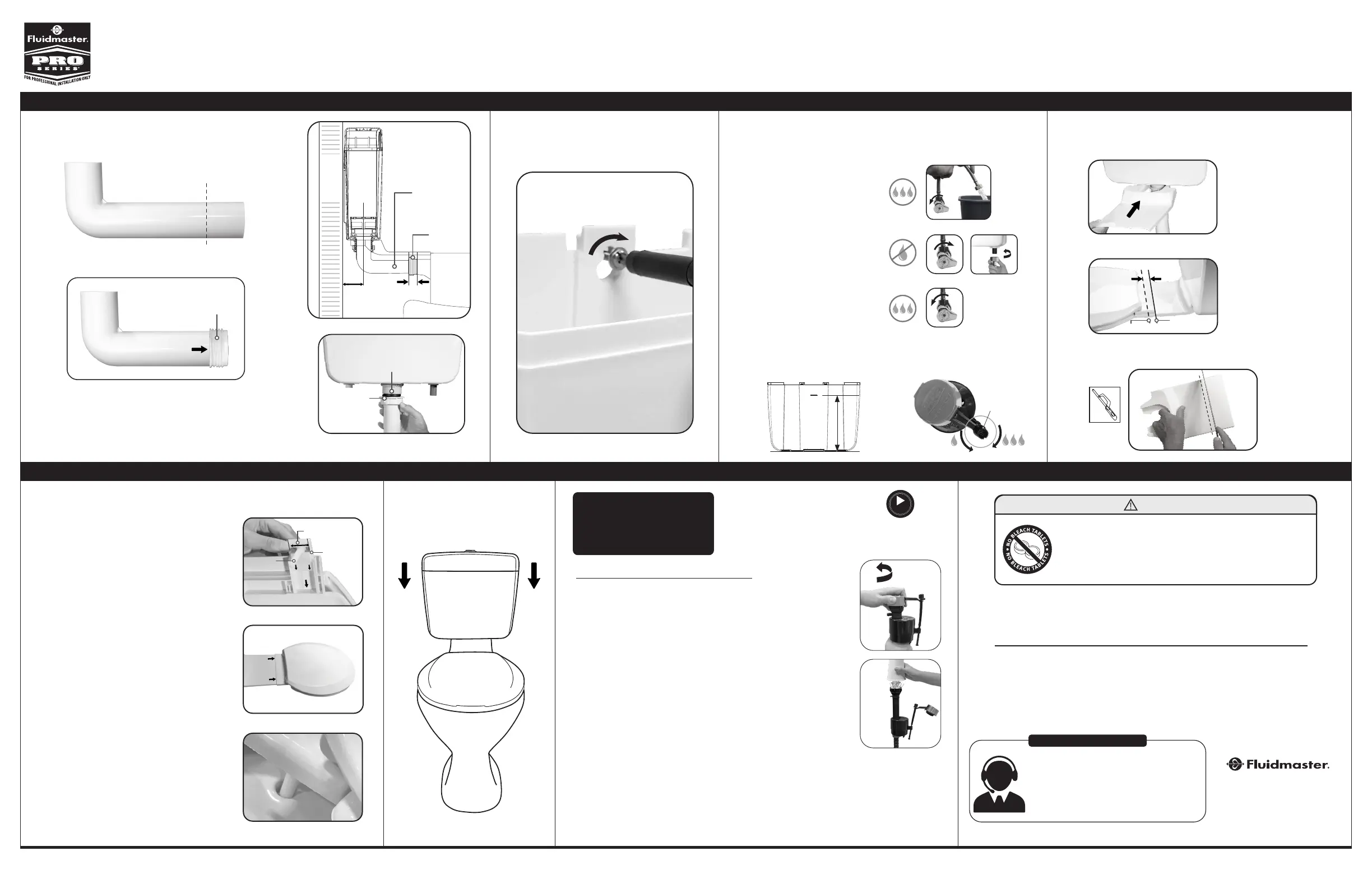

PRO SERIES CISTERN WITH LINK & SEAT
PRO1000A-004 QUICK Install Guide
90° Elbow
Flush Pipe
(FM10)
Kee-Seal
(FM7)
68mm
27mm
