Introduction and Specifications
Electrical Specifications 1
1-23
Input Voltage ....................................................... 1 V to 10 V rms sine wave (do not exceed 1 V for mV ranges)
Frequency Range ............................................... 10 Hz to 1.1999 MHz
Lock Range ......................................................... ±2 % of frequency
Lock-In Time ....................................................... Larger of 10/frequency or 10 msec
Phase Reference (Selectable Rear Panel BNC Output)
Range ................................................................. ±180 °
Phase Accuracy (except 1100 V range) ............. ±1 ° at quadrature points (0 °, ±90 °, ±180 °) elsewhere ±2 °
Stability ............................................................... ±0.1 °
Resolution ........................................................... 1 °
Output Level ....................................................... 2.5 V rms ±0.2 V
Frequency Range ............................................... 50 kHz to 1 kHz, usable 10 Hz to 1.1999 MHz
1000
100
10
0
3.5 V
10000
50 Hz10 Hz 1 kHz 100 kHz 1 MHz 30 MHz
Voltage
Frequency
40 Hz 30 Hz
2.2 x 10
7
V-Hz
15 Hz

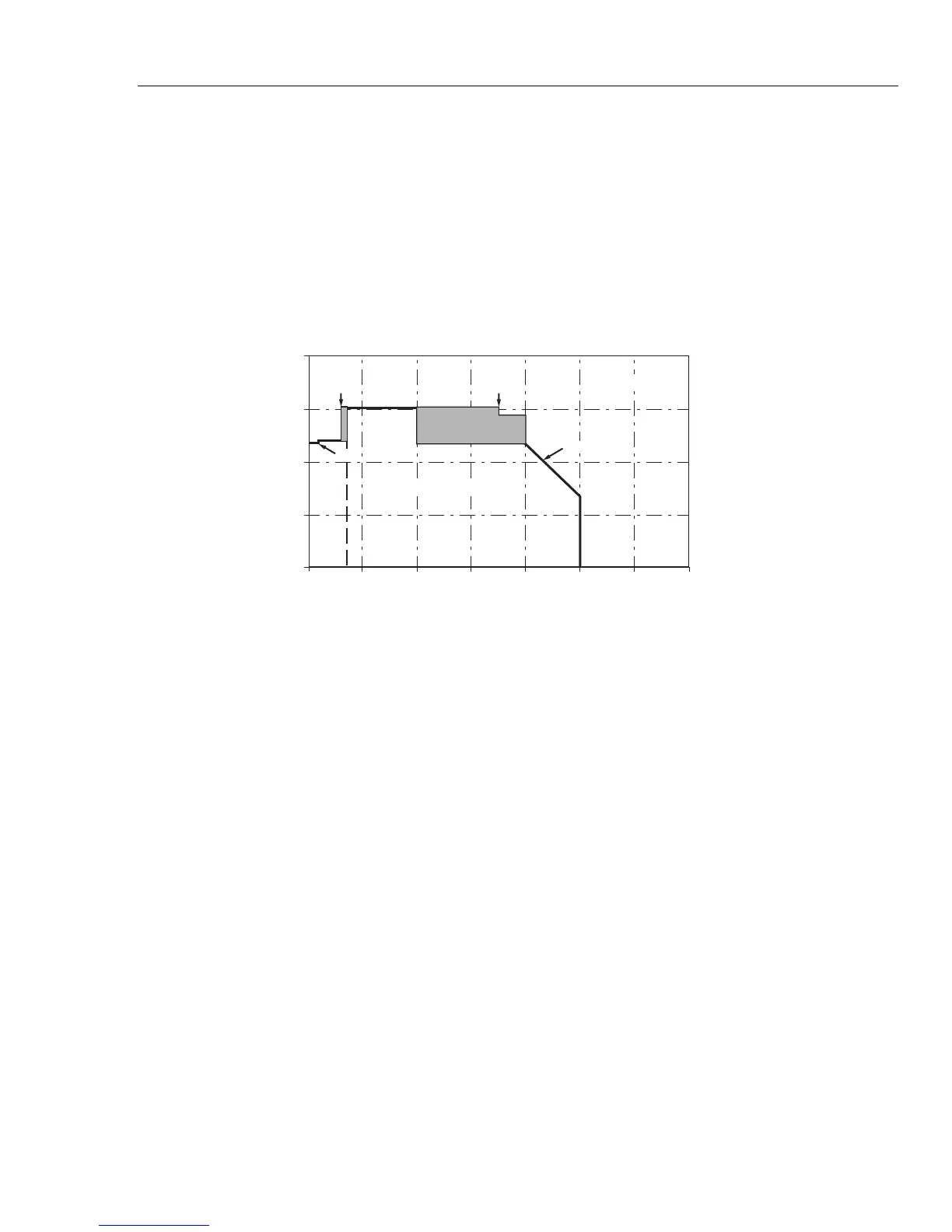

Volt-Hertz Capability
ahp160f.eps
Figure A.
