Front-Panel Operation
Connect the Calibrator to a UUT 4
4-9
INPUT
SENSE
Ω4-WIRE
HI
LO
A
HI
LO
GUARD
INPUT
DC
LO
AC
HI LO
Shielded Twisted Pair
Shielded Twisted Pair
UUT Calibrator
UUT
UUT
Calibrator
Calibrator
External
Sense
OFF
External
Guard
OFF
External
Sense
ON
External
Guard
ON
External
Sense
OFF
External
Guard
ON
A
B
C
hhp011.eps

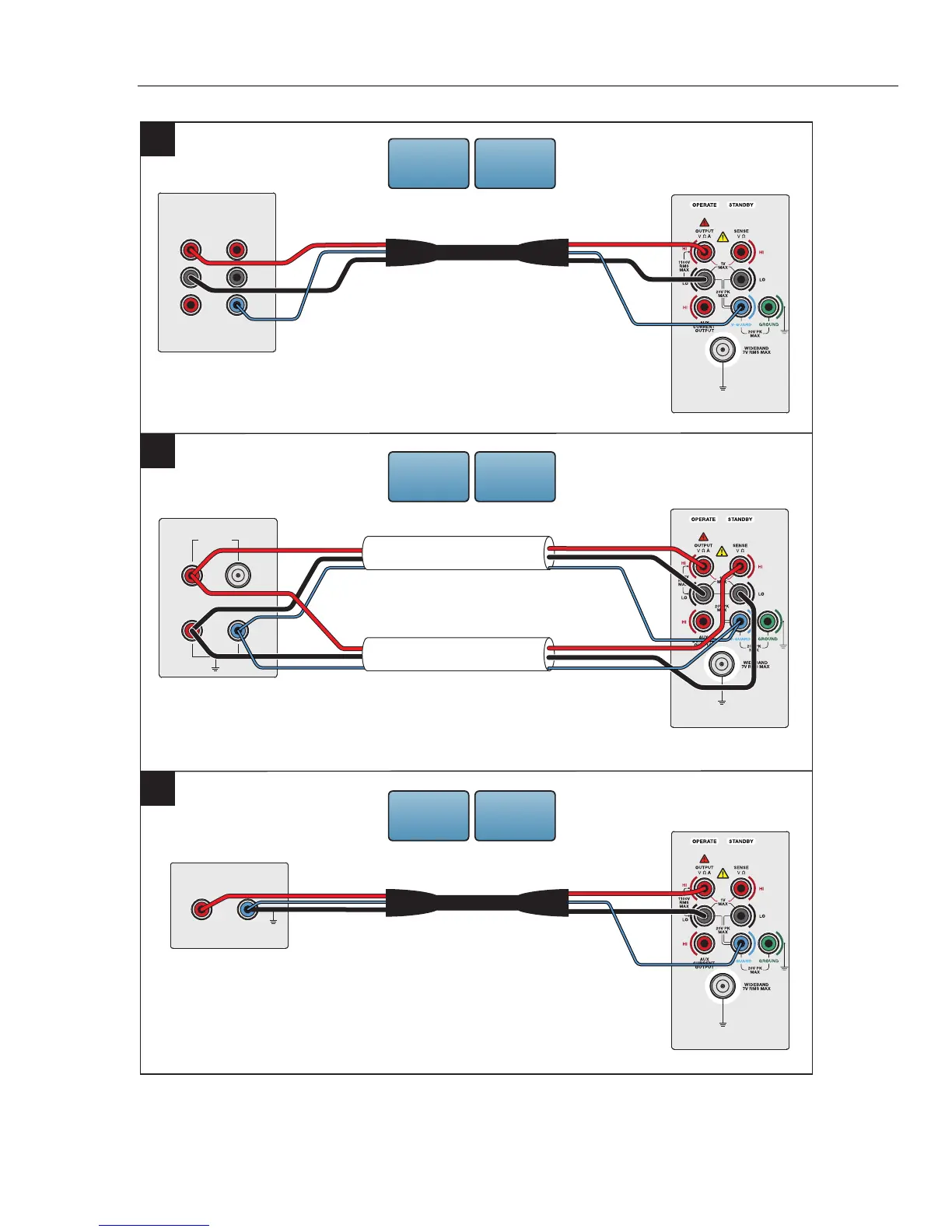

Figure 4-1. UUT Connections: DC Voltage, AC Voltage ≤10 kHz
