NOTE
For wideband meters with higher than 50 Ω input impedence, use the 50 Ω
feedthrough terminator at the meter connection end. For all wideband
applications, take care to achieve a good 50 Ω impedence match (use cable
and connectors with a characteristic input impedence of 50 Ω).
50 Ω Feedthrough Terminator
supplied with the 5700A-03 option
Cable supplied with
the 5700A-03 option
hhp016.eps

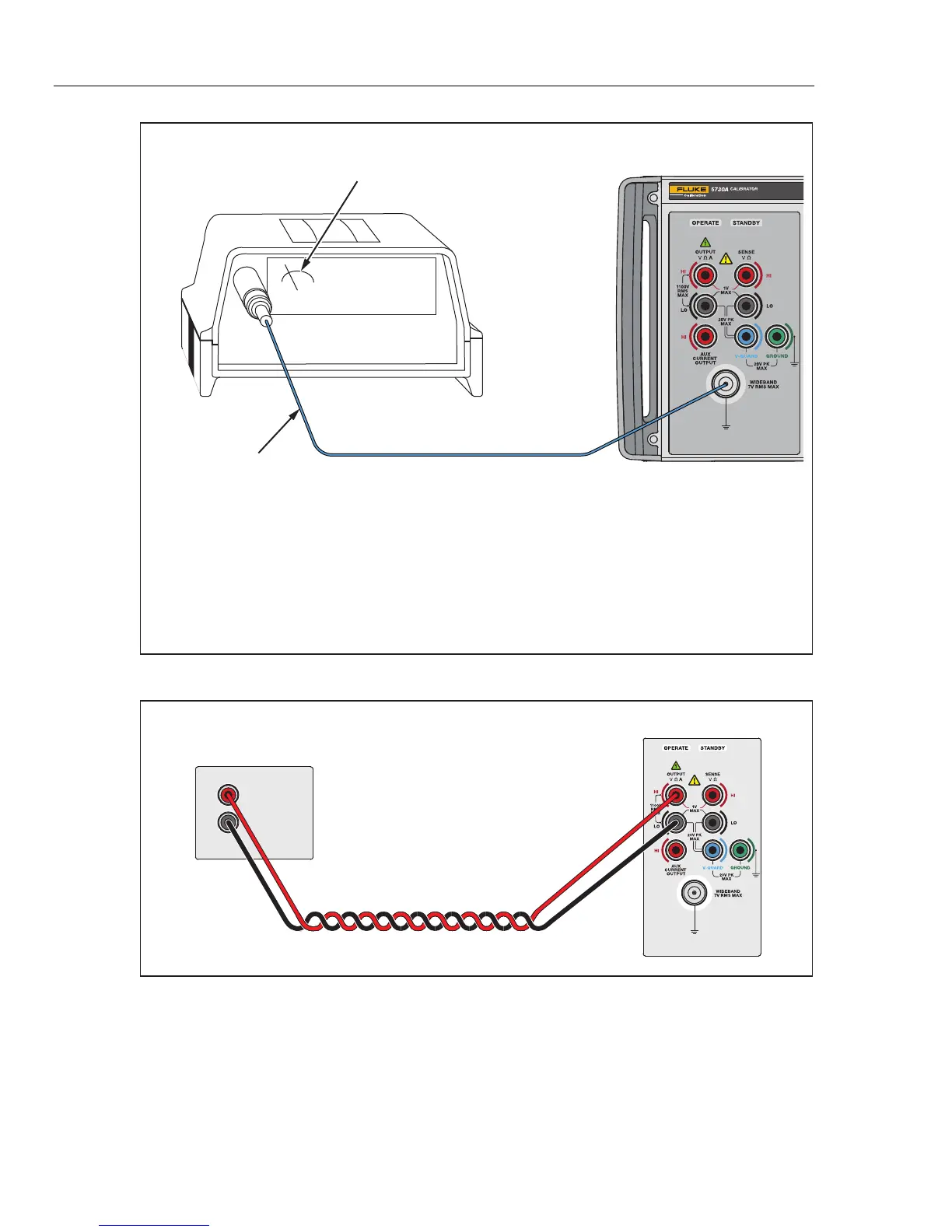

Figure 4-5. UUT Wideband AC Voltage Output (5700A-03 Option)
UUT
HI
LO
5725A
hhp017.eps
Figure 4-6. UUT Connections: 5725A Amplified Current Output
