Replacing the Battery and Fuse
XWWarning
To avoid shock, injury, or damage to the Meter:
• Remove test leads from the Meter before opening the case or battery door.
• Use ONLY a fuse with the amperage, interrupt voltage, and speed ratings
specified.
Fuse
Battery
erc011f.emf

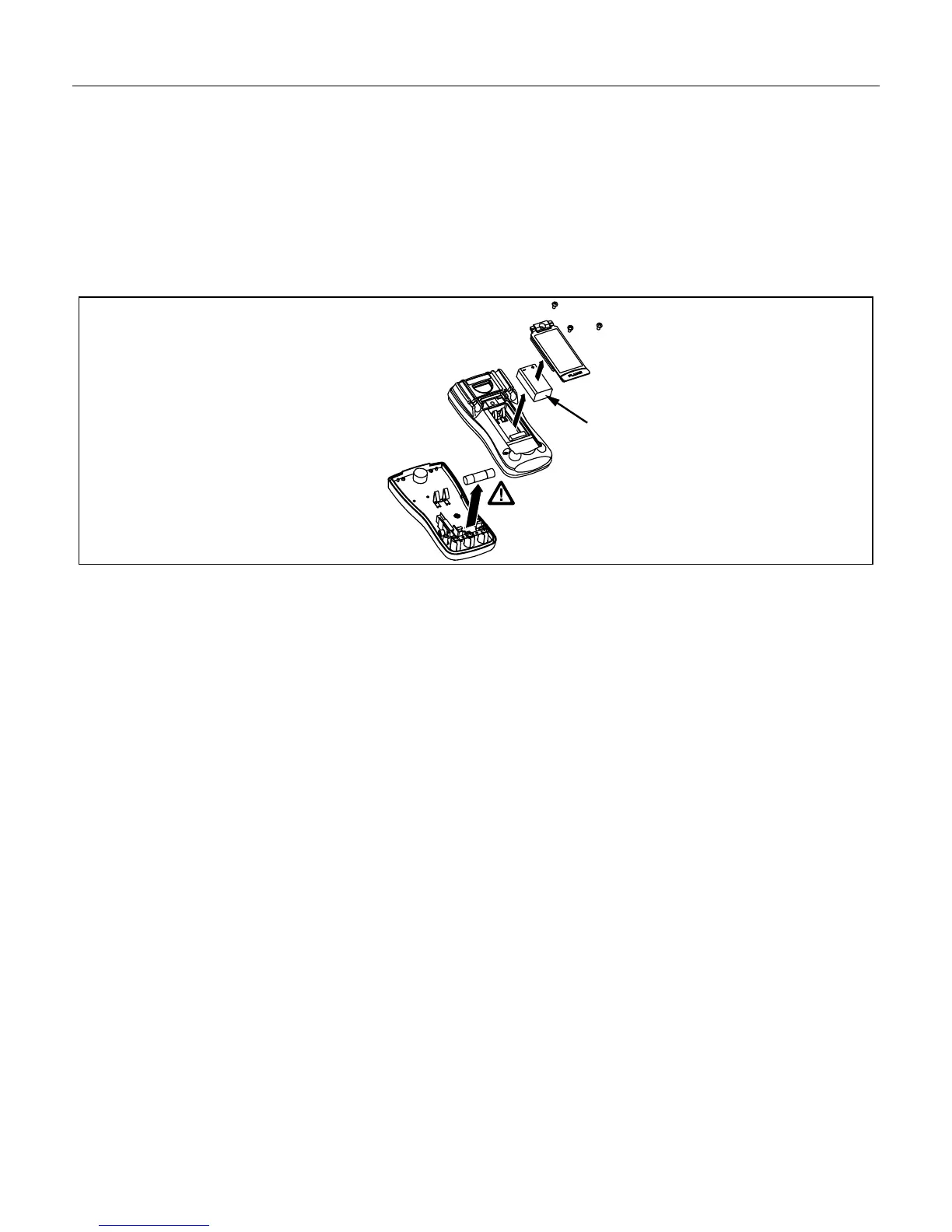

Figure 2. Battery and Fuse Replacement
To remove the battery door for battery replacement, refer to Figure 2 while performing the following:
1. Remove the test leads from the Meter.
2. Remove the battery door screw.
3. Use the finger recess to lift the door slightly.
4. Lift the door straight up to separate it from the case.
5. The battery fits inside the battery door, which is then inserted into the case, bottom edge first, until it is
fully seated. Do not attempt to install the battery directly into the case.
6. Install and tighten battery door screw.
To open the case for fuse replacement, refer to Figure 2 while performing the following:
1. Remove the test leads from the Meter.
2. Remove the Meter from its holster.
3. Remove two screws from the case bottom.
4. Separate the case bottom from the case top.
5. Remove the fuse from its holder and replace with an 11 A, 1000 V, FAST fuse having a minimum
interrupt rating of 17,000 A. Use only Fluke PN 803293.
6. To re-assemble the Meter, attach the case bottom to the case top and secure with the two screws. Insert
the Meter into its holster.

Fluke 114 Specifications

General

Frequency range	0.005 - 50 kHz
Continuity check	Yes
DC voltage range	0.0001 - 600 V
Resistance range	1 - 600 Ω
Resistance resolution	1 Ω
Resolution (DC voltage)	0.0001 mV
Basic accuracy (DC voltage)	1.0% + 3 (DC, 45 Hz to 500 Hz)
Temperature measurement range	-40 - 400 °C
Battery type	9V
Battery voltage	9 V
Number of batteries supported	1

Weight and Dimensions

Depth	46 mm
Width	84 mm
Height	167 mm
Weight	550 g
