Fluke 114 Calibration Information

114, 115, 116, and 117
Calibration Information
8
Table 2. Required Equipment (cont)
Recommended Equipment Measurement Function Accuracy
5500A Multi-product Calibrator (or
equivalent)
Frequency (115, 116, and 117) 2 V, 50 kHz
±0.025 %
Fluke 80 AK
K-type Thermocouple Adapter Accessory
Temperature (116)
K-type Thermocouple, mini-plug on both
ends
Temperature (116)
Double Banana plug VoltAlert (117)

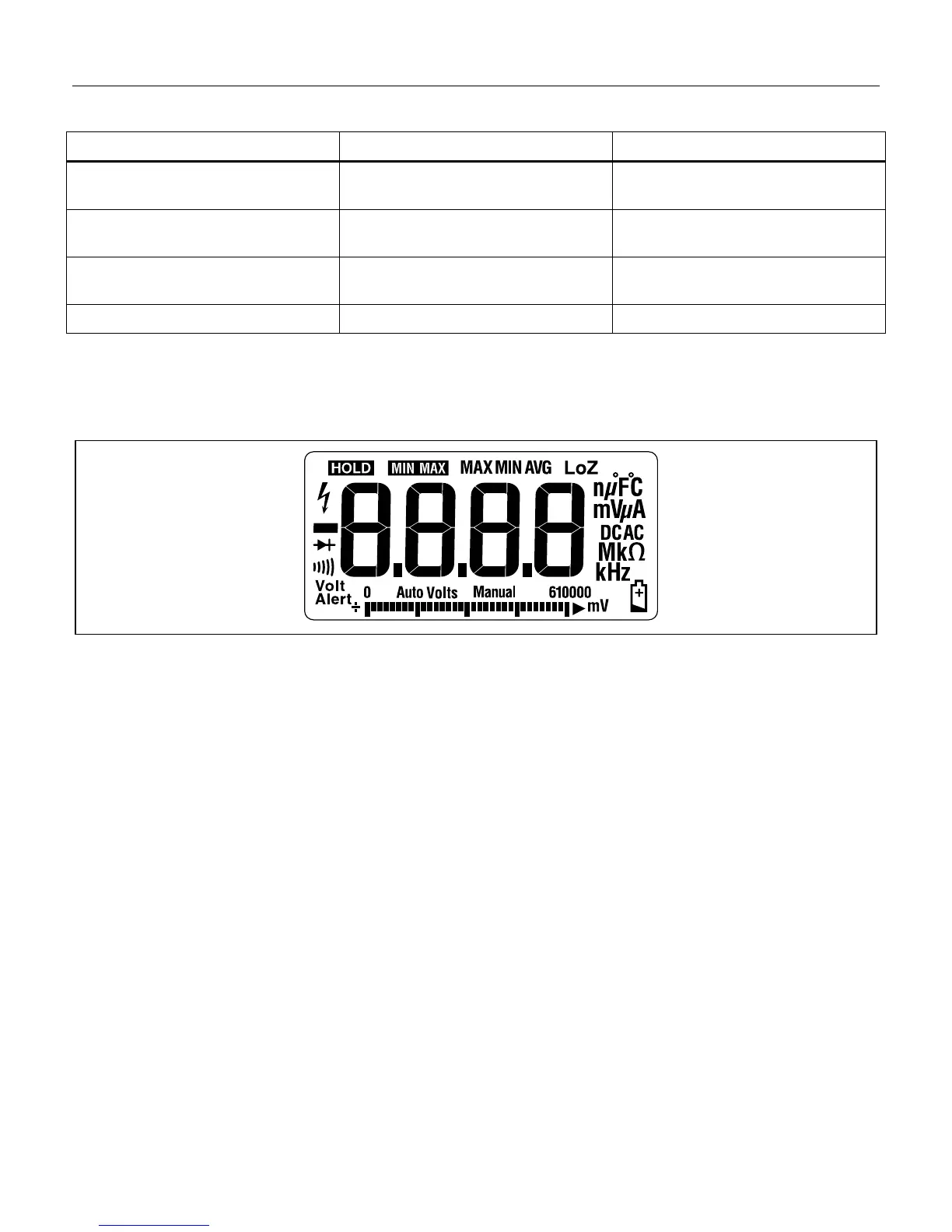

Testing the Display
Push K and turn the rotary switch to the e position. Compare the display with the example in Figure 3.
Check all segments for clarity and contrast.
erc022f.emf
Figure 3. Display Segments
Backlight Test
To Test the Backlight, press the Q button and verify that the backlight comes on.
Keypad Test
To test the keypad, turn the Meter to ACV and push each button separately. Each button push should cause the
Meter to beep and activate a display annunciator.
Reset the Meter by turning it Off and then back to an On position.
Preparing for the Performance Tests
XWWarning
To avoid possible electric shock or personal injury:
• Do not perform the following procedures unless qualified to do so. Some
procedures involve the use of high voltages.
• Before handling the test connections and in between tests, make sure
the calibrator is in standby mode (STBY).
To prepare for the performance test:
1. Make sure that you have the required equipment (refer to Table 4).

Fluke 114 Specifications

General

Frequency range	0.005 - 50 kHz
Continuity check	Yes
DC voltage range	0.0001 - 600 V
Resistance range	1 - 600 Ω
Resistance resolution	1 Ω
Resolution (DC voltage)	0.0001 mV
Basic accuracy (DC voltage)	1.0% + 3 (DC, 45 Hz to 500 Hz)
Temperature measurement range	-40 - 400 °C
Battery type	9V
Battery voltage	9 V
Number of batteries supported	1

Weight and Dimensions

Depth	46 mm
Width	84 mm
Height	167 mm
Weight	550 g
