Fluke 1630 Calibration Information

1630
Earth Ground Clamp
10
IEC 6LR61
BATTERY
IEC 6LR61
BATTERY
Press tab and lift
to remove battery
holder from PCA.
Do not remove shield
during adjustment.
VR1
VR2
Shield removed for demonstration
purposes only. Do not remove
during adjustment.
VR10
VR6 is not used
VR3
VR20
VR11
fcy02.eps

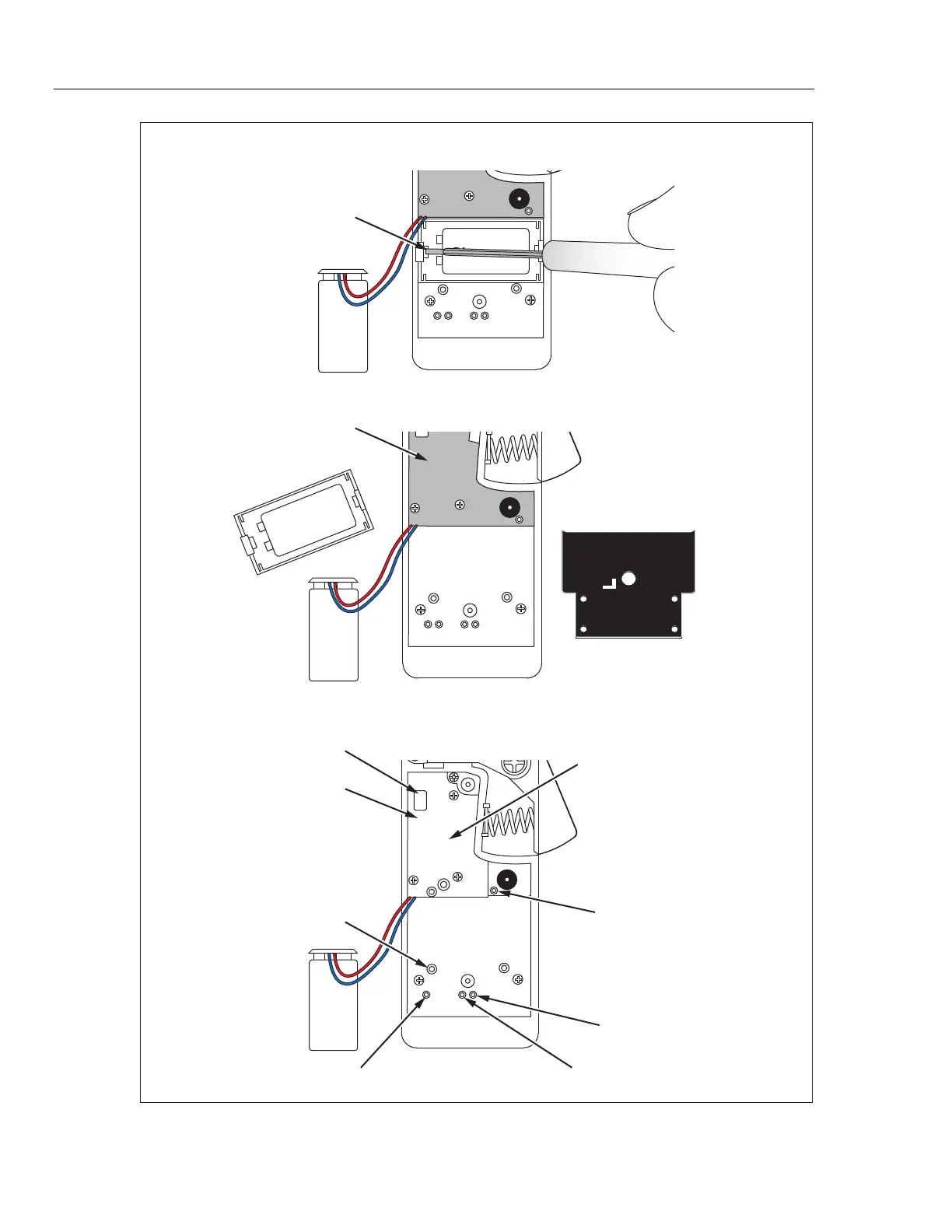

Figure 2. Disassembly and Adjustment Locations

Fluke 1630 Specifications

General

Control type	Buttons
Housing color	Red, Black, Yellow
Maximum voltage	1000 V
Built-in display	Yes
Display technology	LCD
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Battery size	AA
Battery technology	Alkaline
Battery life (measurements)	15
Number of batteries supported	4

Weight and Dimensions

Depth	48 mm
Width	105 mm
Height	283 mm
Weight	880 g
