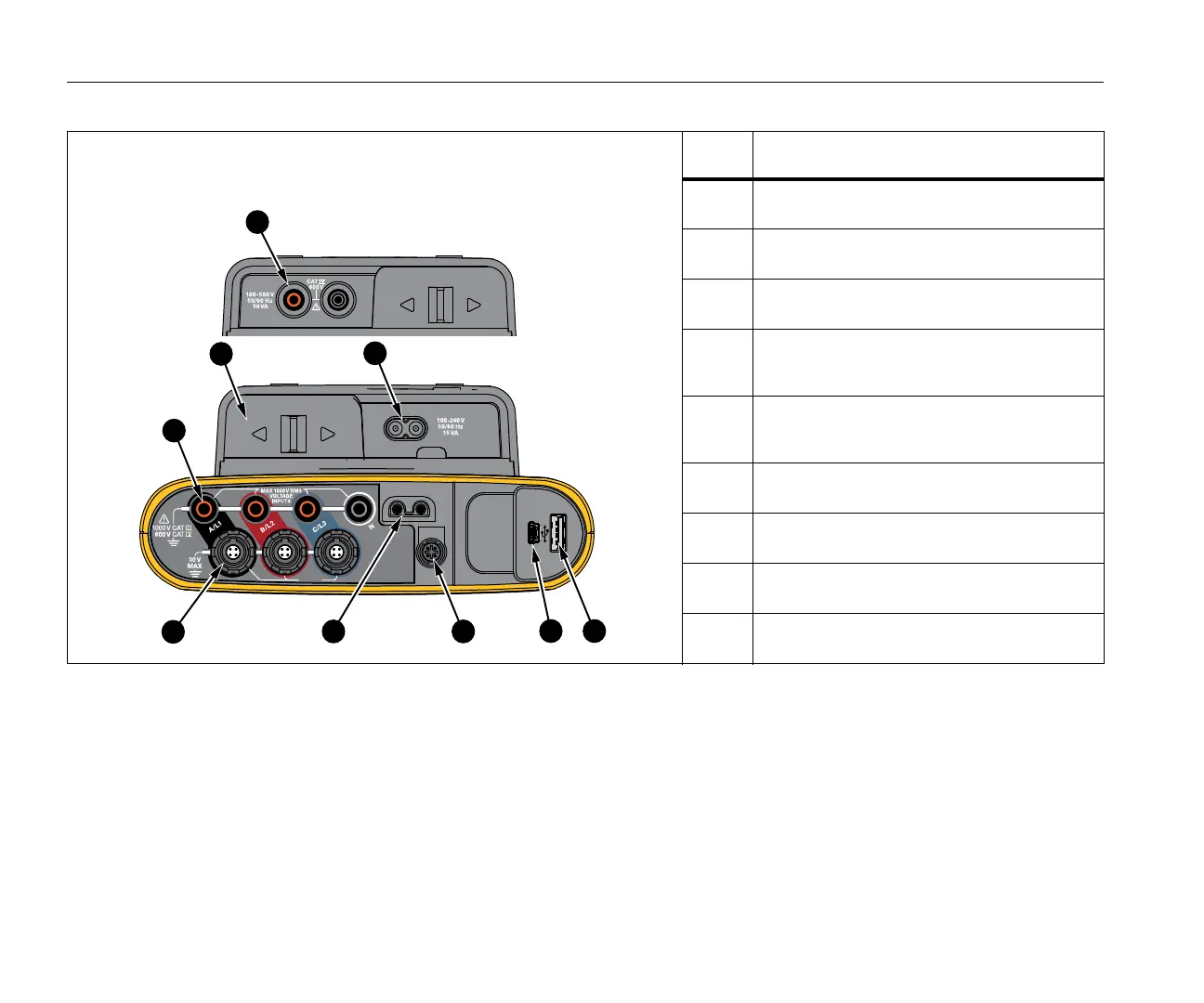

Table 5. Connector Panel
Item Description

Current measurement inputs (3 phases)

Voltage measurement inputs (3 phases + N)

Power Cord/Measurement Line Slide-Cover

Power Cord AC Input
100-240 V 50/60 Hz 15 VA

Measurement Line AC Input
100-500 V 50/60 Hz 50 VA

USB connector

Mini-USB connector

Aux 1/2 Connector

DC Power Input
CURRENT
INPUTS
1
8
7
6
2
3
4
9
5
