Phase shift...............................................................< ±0.5°

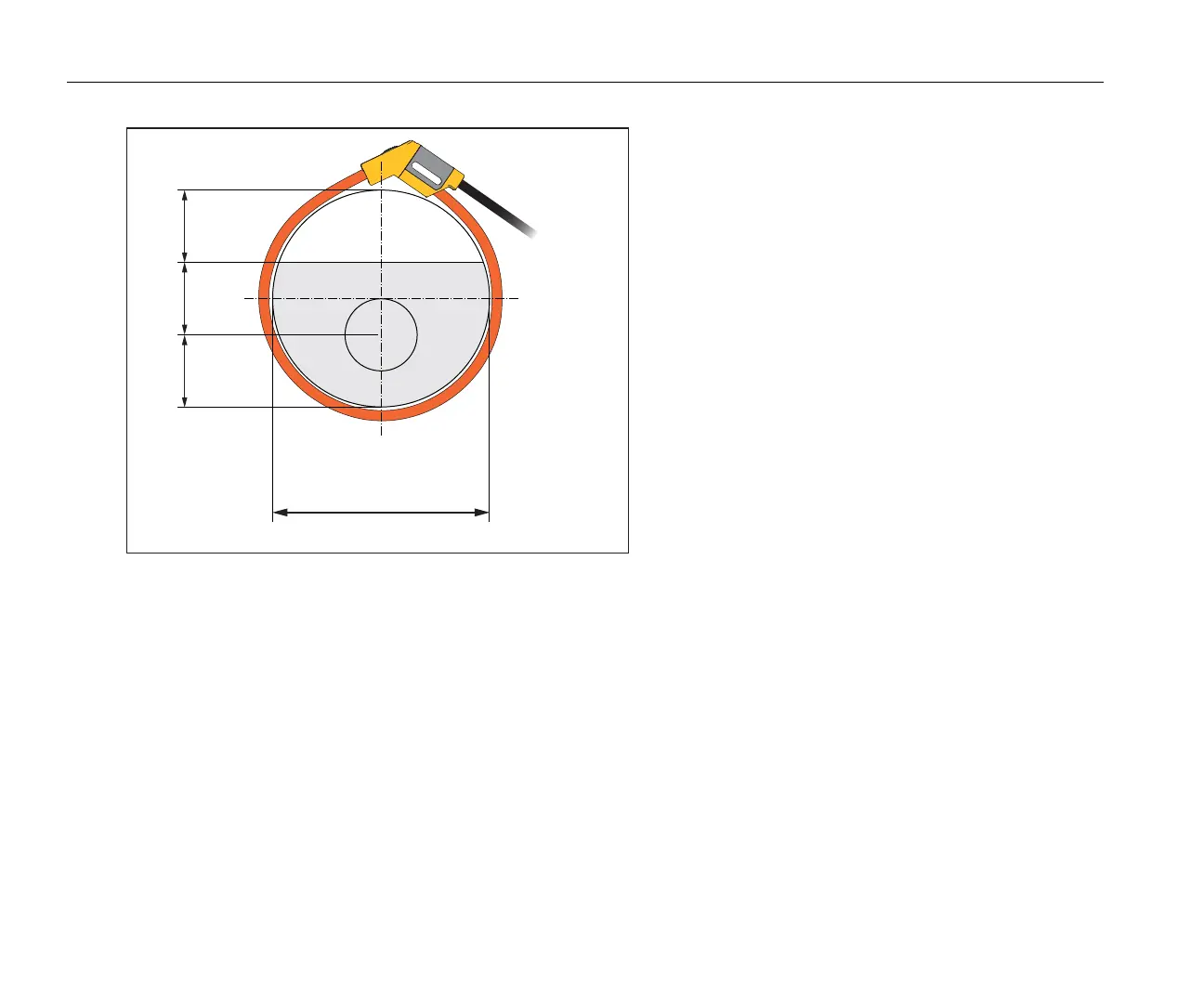

Figure 9. iFlex Probe Window
Bandwidth................................................................10 Hz to 23.5 kHz
Frequency derating .................................................I x f
≤385 kA Hz
Working Voltage......................................................1000 V CAT III, 600 V CAT IV
[1] Reference Condition:
• Environmental: 23 °C ±5 °C, no external electrical/magnetic field, RH 65 %
• Primary conductor in center position
Transducer length
iFlex 1500-12 ......................................................305 mm (12 in)
iFlex 3000-24 ......................................................610 mm (24 in)
iFlex 6000-36 ......................................................915 mm (36 in)
Transducer cable diameter......................................7.5 mm (0.3 in)
iFlex1500-12: 88mm
iFlex3000-24: 185mm
iFlex6000-36: 282mm
C
B
A
1/31/31/3
