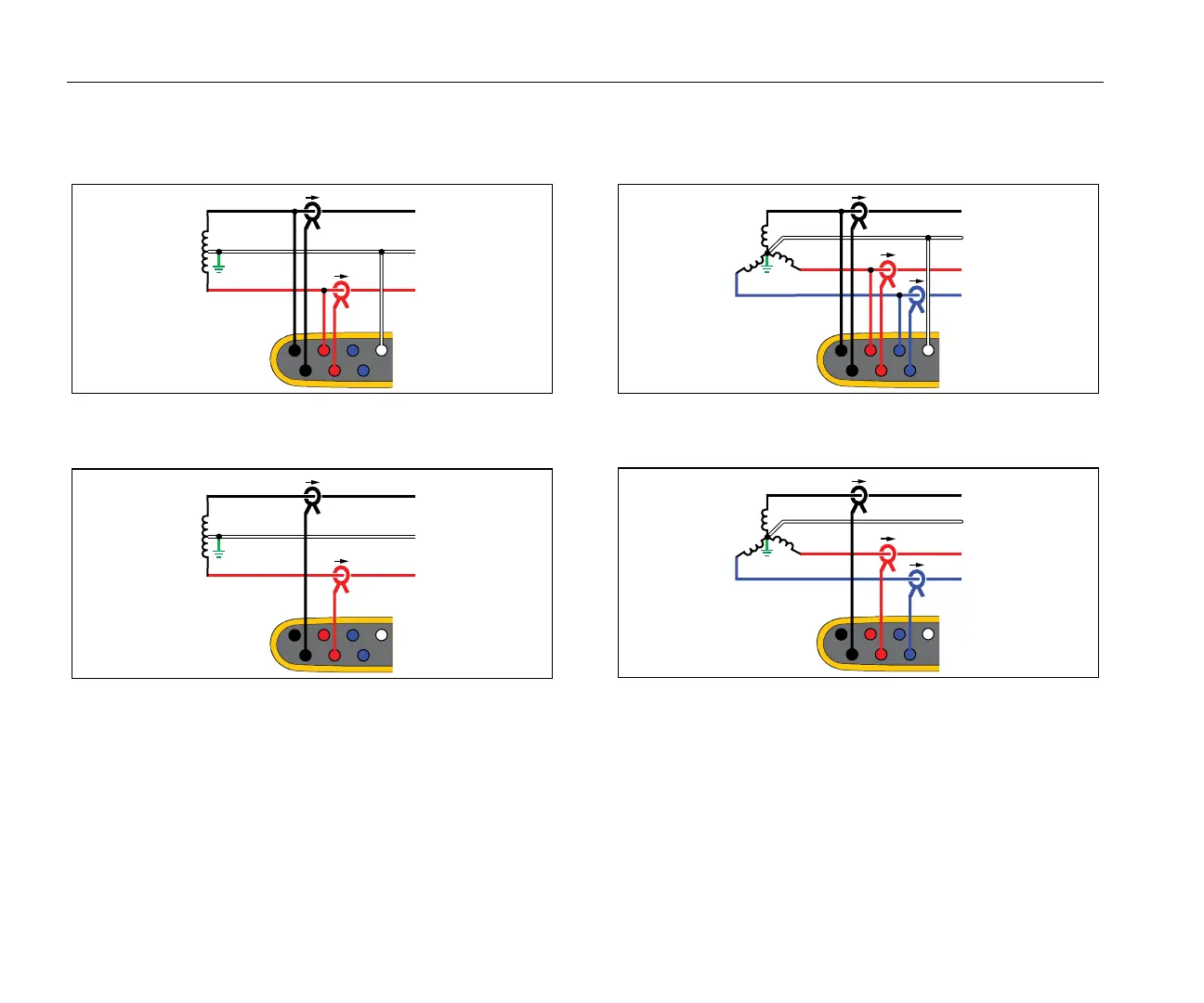

Split Phase
Example: A North American residential installation at the service
entrance.
Energy Study
Load Study (no voltage measurement)
3-Ф Wye
Example: Also called “Star” or four-wire connection. Typical
commercial building power.
Energy Study
Load Study (no voltage measurement)
A/L1
N
B/L2
A/L1
N
B/L2
A/L1
C/L3
B/L2
N
A/L1
C/L3
B/L2
N
