Use the wire clips for easy identification of the four current probes. Apply the clips that are
appropriate for your local wiring codes on both ends of the current probe cable. See Figure 6.

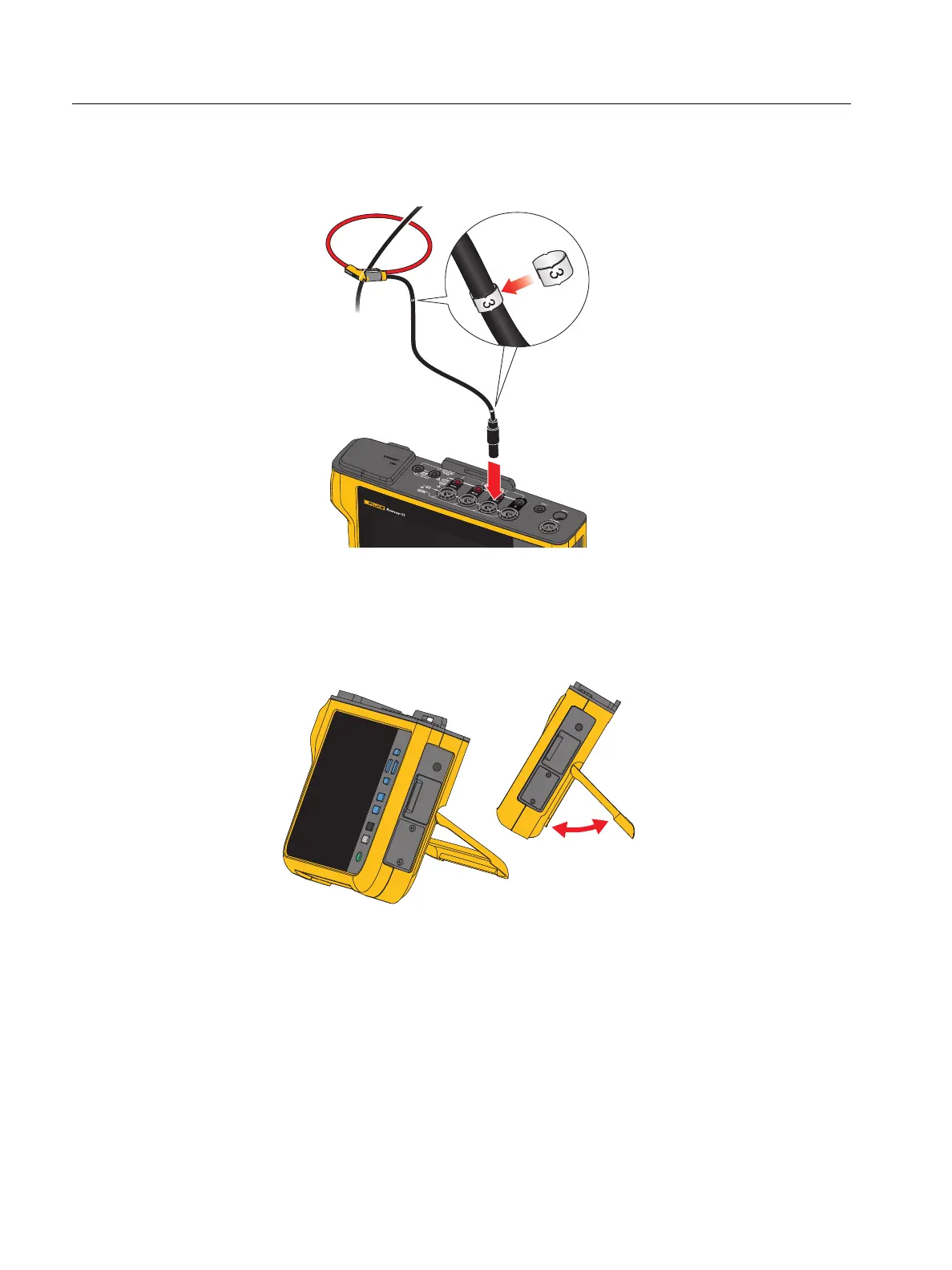

Figure 6. Wire Clips
Tilt Stand
The Product includes a tilt stand that positions the display at a good angle for use on a tabletop
surface. See Figure 7.
Figure 7. Tilt Stand
Storage
When not in use, keep the Analyzer in the protective storage bag/case. The bag/case has
sufficient space for the Analyzer and all the accessories.
If the Analyzer is stored for an extended period of time or is not in use for a long time, you
should charge the battery at least once every six months. For more information, see
Maintenance.

Fluke 1777 Specifications

General

Category	Power Quality Analyzer
Safety Rating	CAT IV 600 V, CAT III 1000 V
Warranty	3 years
Voltage Measurement Range	1000 V AC/DC
Harmonics	Up to 50th harmonic
Display	LCD color display
Communication	USB
Operating Temperature	-10°C to +50°C
Battery Type	Lithium-ion battery pack
