Fluke 2052R - Page 19

Wire Tracer Receiver and Transmitter
Connect the Transmitter
15

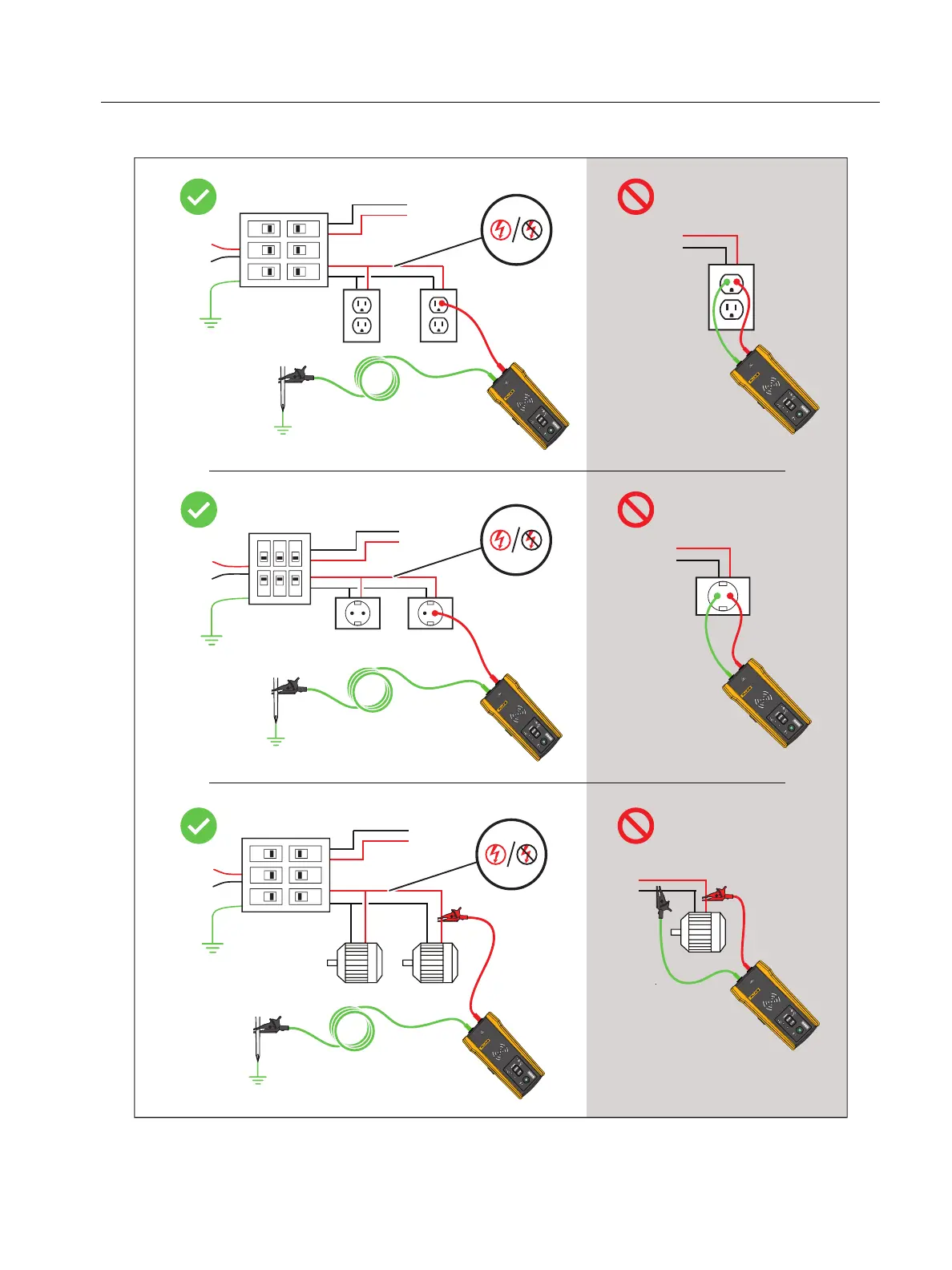

Figure 2. Wire not Connected to a GFI Device or RCD
