5. To trace a wire connected to a GFI outlet:
a. Remove the protective receptacle wall plate.
b. Connect the red alligator clip to the screw of the hot wire.
c. Connect the alligator clip of the green test lead to a separate ground such as a metal
water pipe, a metal grounded structure of the building, a grounded screwdriver, or a
grounded stake. See Figure 3.

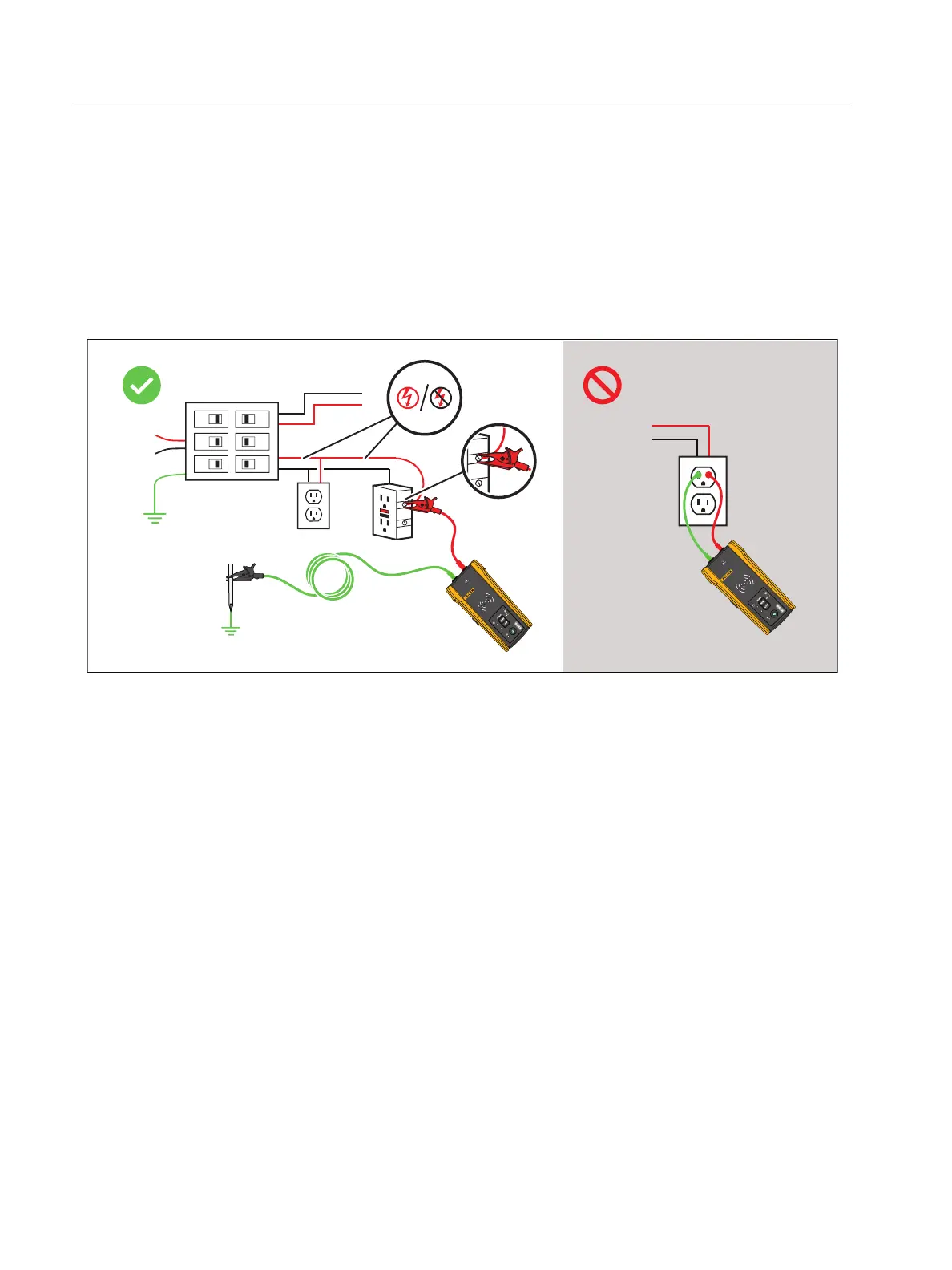

Figure 3. Wire Connected to a GFI Outlet
