Fluke 2052R - Page 29

Wire Tracer Receiver and Transmitter
Use the Receiver
25

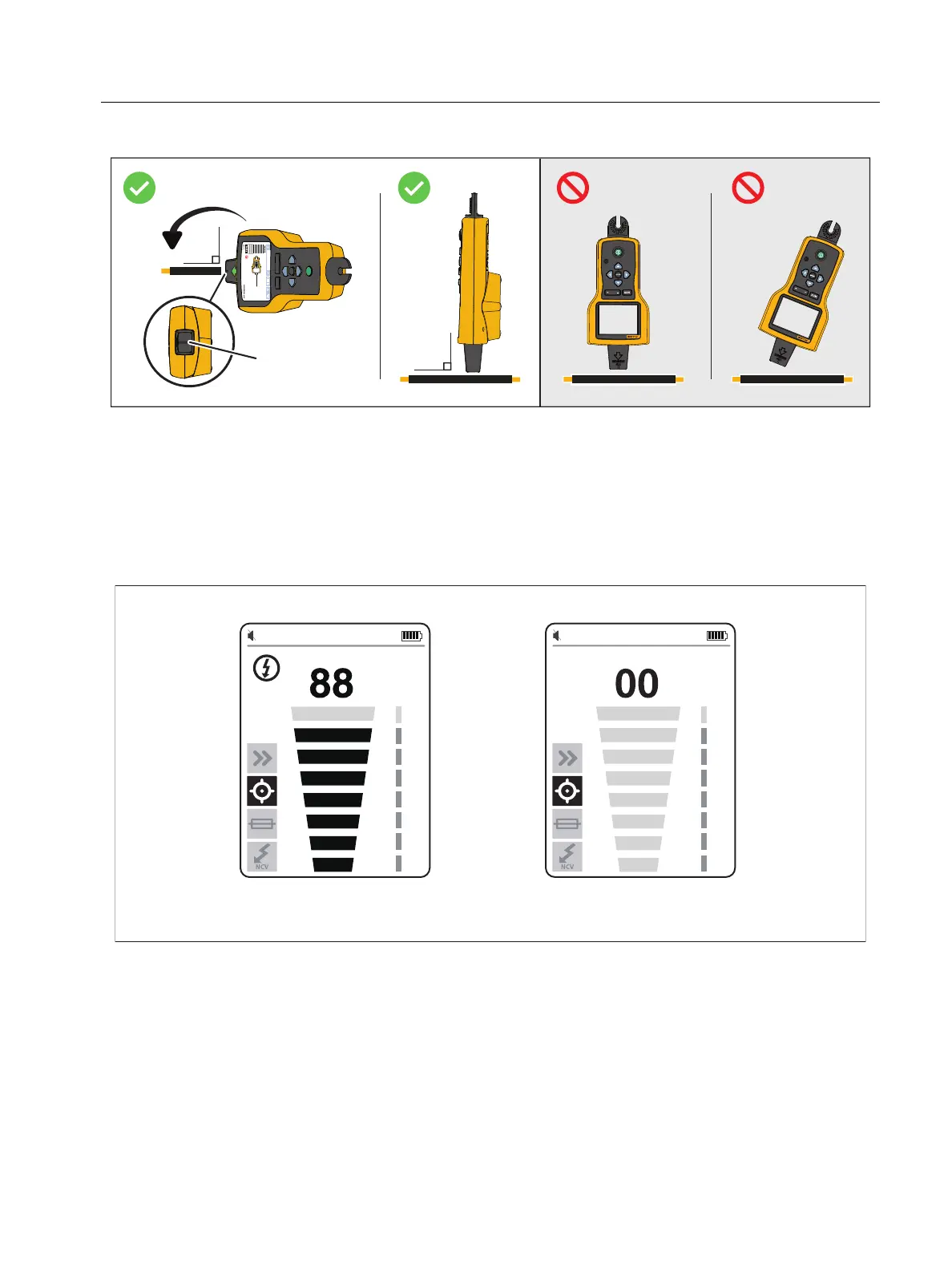

Figure 9. Tip Sensor Alignment
4. Periodically adjust the sensitivity to keep the signal strength near 75 %.
The signal strength indicator on the display changes. For the 2052R display, see Figure 10.
For the 2062R display, see Figure 11.
5. If the signal is too strong to precisely locate the wire, change the Transmitter to low mode.
Figure 10. Tip Sensor Signal Strength (2052R)
90q
90q
RECEIVER
2062R
R
ECE
I
V
E
R
2
0
6
2
R
Groove
Signal Detected Signal not Detected
