Wire Tracer Receiver and Transmitter
Use the Receiver
27

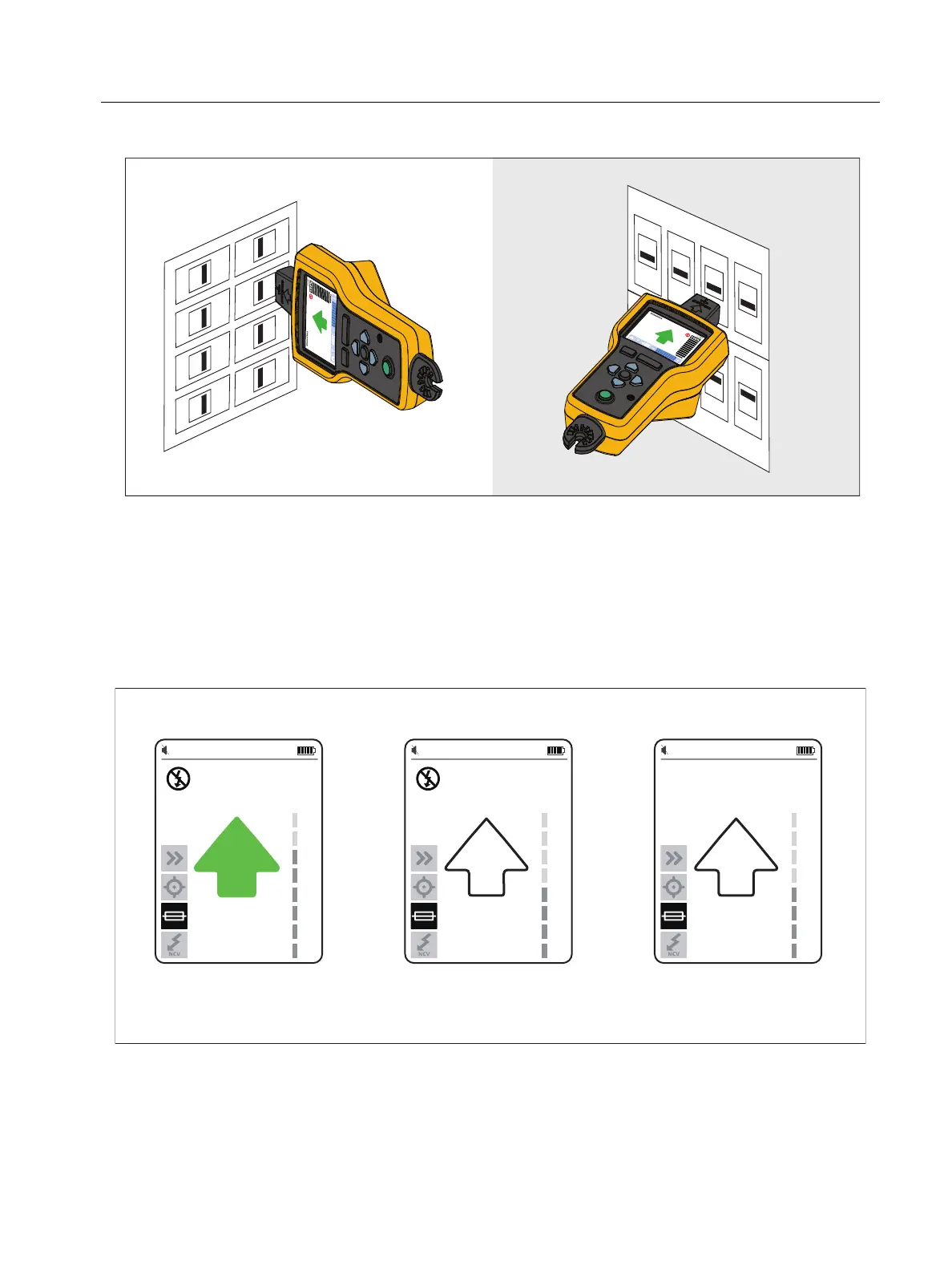

Figure 12. Breaker Mode Alignment
3. Scan each breaker or fuse multiple times until the arrow on the display shows solid green
for only one breaker or fuse. For best results, scan at the output of the breaker or fuse. The
order you scan the breakers or fuses does not matter.
The signal strength indicator on the display changes. For the 2052R display, see Figure 13.
For the 2062R display, see Figure 14. For a breaker mode application, see Figure 15.
Figure 13. Breaker Signal Strength (2052R)
Strongest Signal Detected Signal Detected Signal not Detected
