Wire Tracer Receiver and Transmitter
Special Applications
35

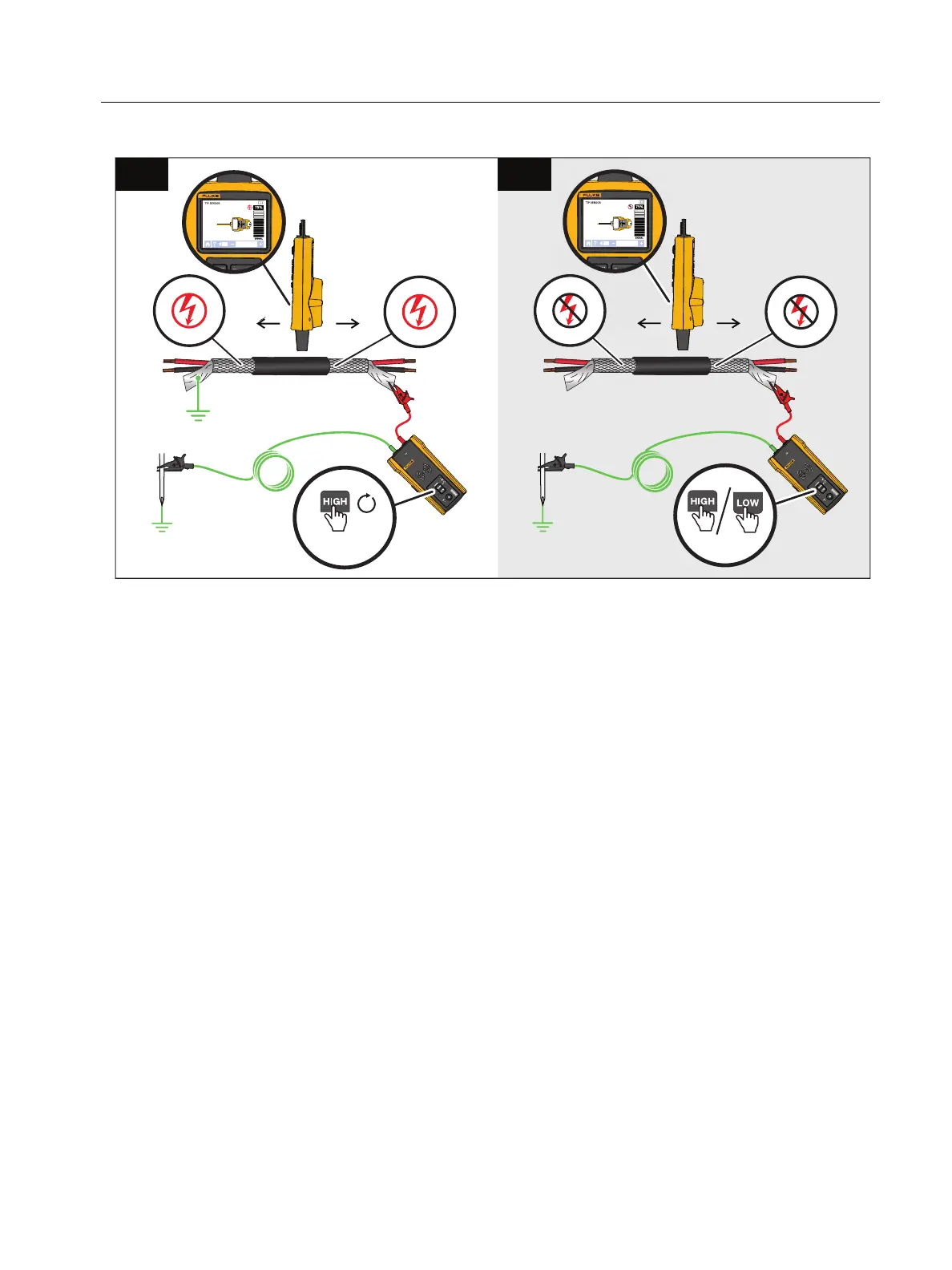

Figure 20. Trace a Shielded Wire
3. On the Transmitter:
With a wire grounded at the far-end, select loop mode. See Figure 20 A. The loop mode LED
lights.
Or,
With a wire not grounded at the far-end, select high or low mode. See Figure 20 B. The high
or low mode LED lights.
4. On the Receiver, select tip sensor mode to trace the wire.
B
<1 s
A
≥2 s
