Fluke 5730A Getting Started Manual

5730A
Getting Started Manual
16
54
14
6
12
11
3
7
16
1
2
8
9
15
13
19 1718
21
20
10
hhp006.eps

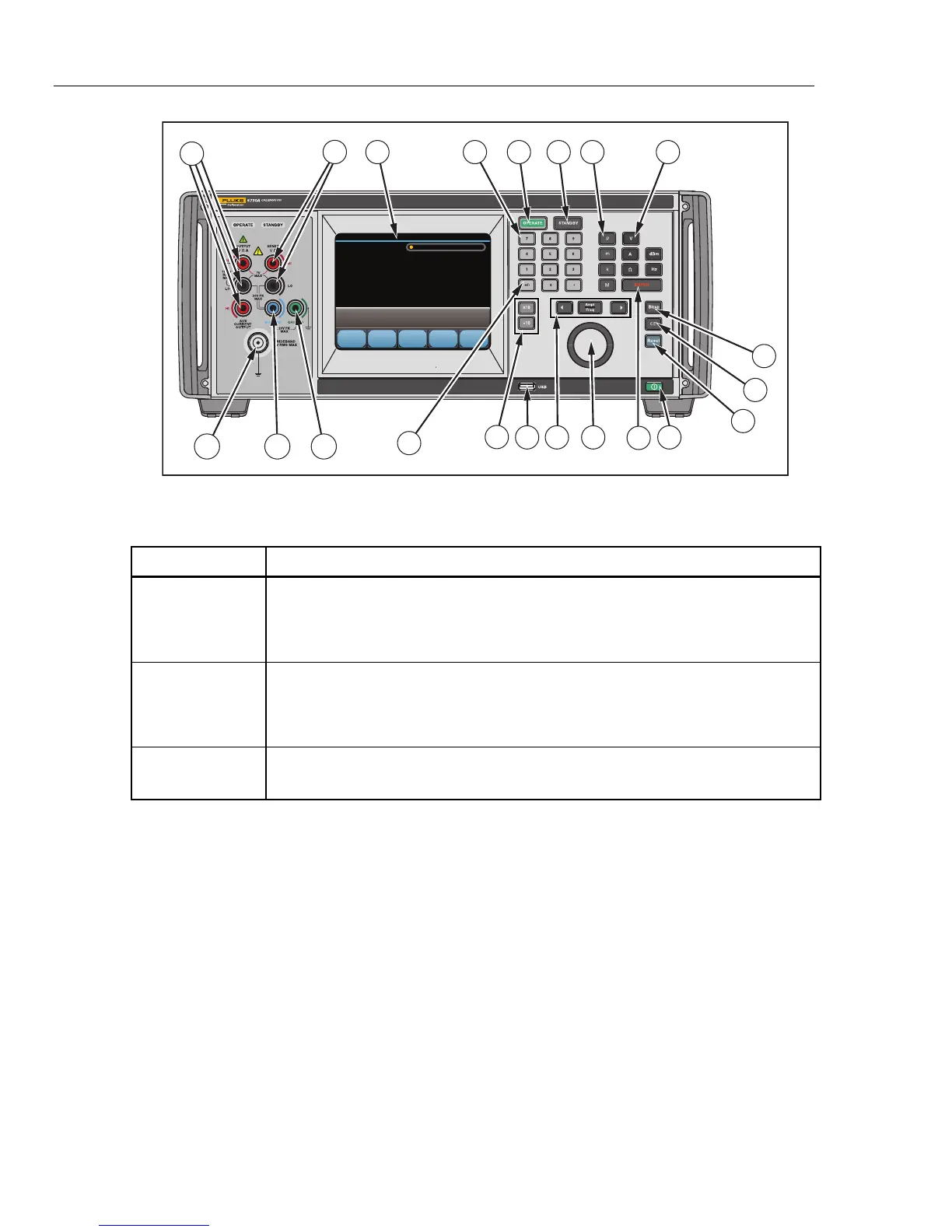

Figure 3. Front-Panel Features
Table 5. Front-Panel Features
Item Description

The color touch-sensitive display shows the output amplitude, frequency, and other
active conditions and messages. The display provides controls not available with
the keys alone. The Calibrator interface is made up of multiple menus, described in
Chapter 4 of the Operators Manual.

Numbered keys to enter the output amplitude, frequency, and other data such as
the time and date. To enter a value, push the digits of the output value, a multiplier
key (if necessary), and an output function key. Then push
. For example,
for an output of 20 mV, push
    .


 activates the programmed output.

Fluke 5730A Specifications

General

Type	Multifunction Calibrator
Resistance Range	0 to 1 GΩ
AC Voltage Frequency	10 Hz to 1 MHz
Display	Color LCD
Interfaces	RS-232, Ethernet
Weight	18 kg
DC Voltage Range	0 to ±1100 V
Dimensions	172 mm H x 432 mm W x 457 mm D (6.8 in H x 17 in W x 18 in D)
