Fluke 705
Calibration Information
4
Case, Top
Lens
Keypad Assembly
Actuator Switch
Main PCA
Foot
LCD
Elastomeric Strip
Elastomeric Strip
(LCD to PCA)
Switch Support Assembly
Case, Bottom
Battery Door
Battery
Screw, THD Form, PH.P.STL,
5-14 x .750
AAK10F.EPS

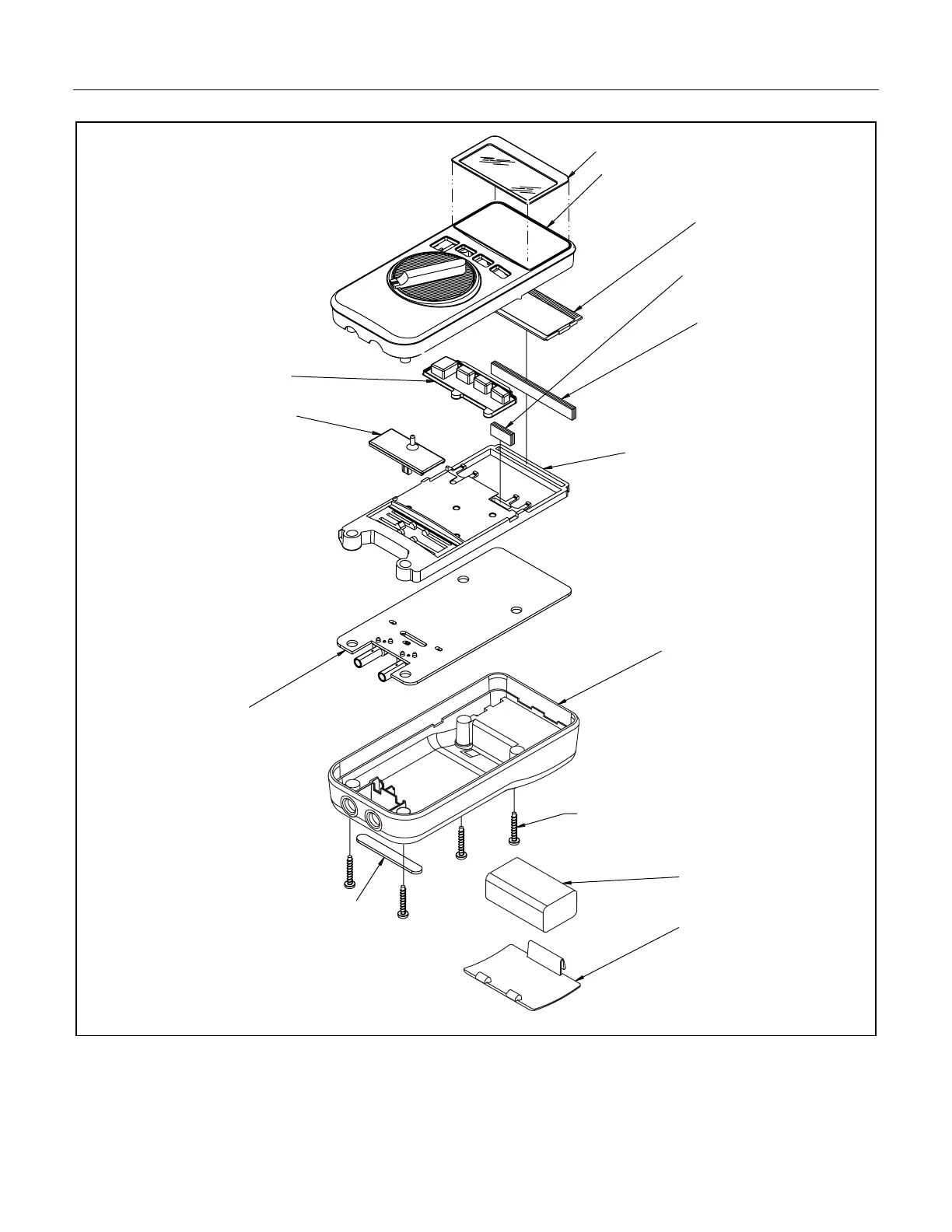

Figure 2. Disassembled Loop Calibrator
