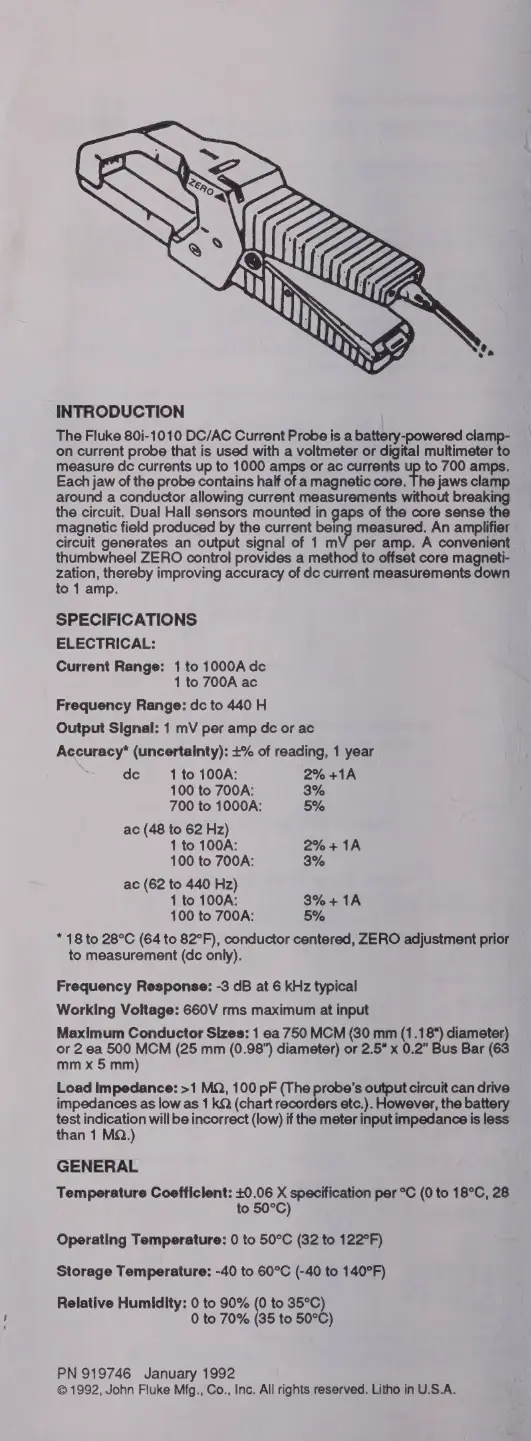

INTRODUCTION
The
Fluke
80i-1010
DC/AC
Current
Probe
is
a
battery-powered
clamp-
on
current
probe
that
is
used
with
a
voltmeter
or
digital
multimeter
to
measure
de
currents
up
to
1000
amps
or
ac
currents
up
to
700
amps.
Each
jaw
of
the
probe
contains
half
ofa
magnetic
core.
The
jaws
clamp
around
a
conductor
allowing
current
measurements
without
breaking
the
circuit.
Dual
Hall
sensors
mounted
in
gaps
of
the
core
sense
the
magnetic
field
produced
by
the
current
being
measured.
An
amplifier
circuit
generates
an
output
signal
of
1
mV
per
amp.
A
convenient
thumbwheel
ZERO
control
provides
a
method
to
offset
core
magneti-
zation,
thereby
improving
accuracy
of
de
current
measurements
down
to
1
amp.
SPECIFICATIONS
ELECTRICAL:
Current
Range:
1
to
1000A
dc
1
to
700A
ac
Frequency
Range:
dc
to
440
H
Output
Signal:
1
mV
per
amp
dc
or
ac
Accuracy*
(uncertalnty):
+%
of
reading,
1
year
dc
1
to
100A:
2%
+1A
100
to
700A:
3%
700
to
1000A:
5%
ac
(48
to
62
Hz)
1
to
100A:
2%+1A
100
to
700A:
3%
ac
(62
to
440
Hz)
1
to
100A:
3%
+1A
100
to
700A:
5%
*
18
to
28°C
(64
to
82°F),
conductor
centered,
ZERO
adjustment
prior
to
measurement
(de
only).
Frequency
Response:
-3
dB
at
6
kHz
typical
Working
Voltage:
660V
rms
maximum
at
input
Maximum
Conductor
Sizes:
1
ea
750
MCM
(30
mm
(1.18)
diameter)
or
2
ea
500
MCM
(25
mm
(0.98”)
diameter)
or
2.5“
x
0.2”
Bus
Bar
(63
mm
x
5
mm)
Load
Impedance:
>1
MQ,
100
pF
(The
probe's
output
circuit
can
drive
impedances
as
low
as
1
kQ
(chart
recorders
etc.).
However,
the
battery
test
indication
will
be
incorrect
(low)
if
the
meter
input
impedance
is
less
than
1
MQ.)
GENERAL
Temperature
Coefticlent:
+0.06
X
specification
per
°C
(0
to
18°C,
28
to
50°C)
Operating
Temperature:
0
to
50°C
(32
to
122°F)
Storage
Temperature:
-40
to
60°C
(-40
to
140°F)
Relative
Humidity:
0
to
90%
(0
to
35°C)
0
to
70%
(35
to
50°C)
PN
919746
January
1992
©
1992,
John
Fluke
Mfg.,
Co.,
Inc.
All
rights
reserved.
Litho
in
U.S.A.
