752A
ERRATA 14

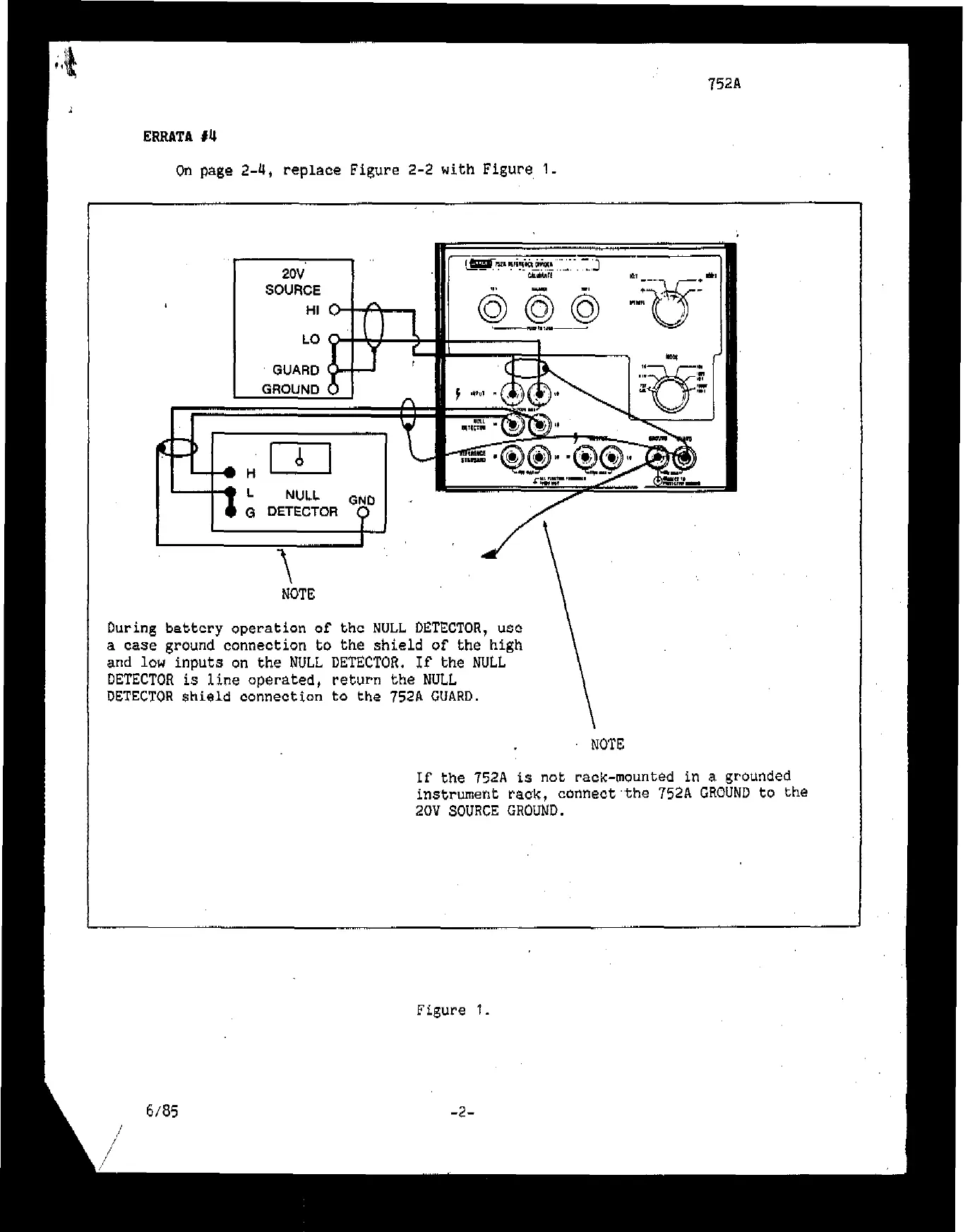

On page 2-4, replace Figure 2-2 with Figure 1.
NbTE
During battery operation of the NULL DETECTOR, use
a case ground connection to the shield of the high
and low inputs on the NULL DETECTOR. If the NULL
DETECTOR is line operated, return the NULL
DETECTOR shield connection to the 7528 GUARD.
If the 752A is not rack-mounted in a grounded
instrument rack, connect.,the 752A GROUND to the
2OV SOURCE GROUND.
Figure 1.
6/85
-2-
/
