C9970 Voltage Detector
Users Guide
Physical Description
The Voltage Detector, shown in Figure 1, is a yellow, plastic, two-piece, unit
that weighs approximately one pound.
The front housing includes the carbide probe tip and two LEDs (one green
and one red) along with a check contact and a ground terminal. These and
the battery are attached to the front housing.
The rear housing, which acts as a handle, includes a set of concentric rings
(called the flashguard), the on/off switch (called the trigger), an instruction
label, and a belt clip.
EMU01.EPS

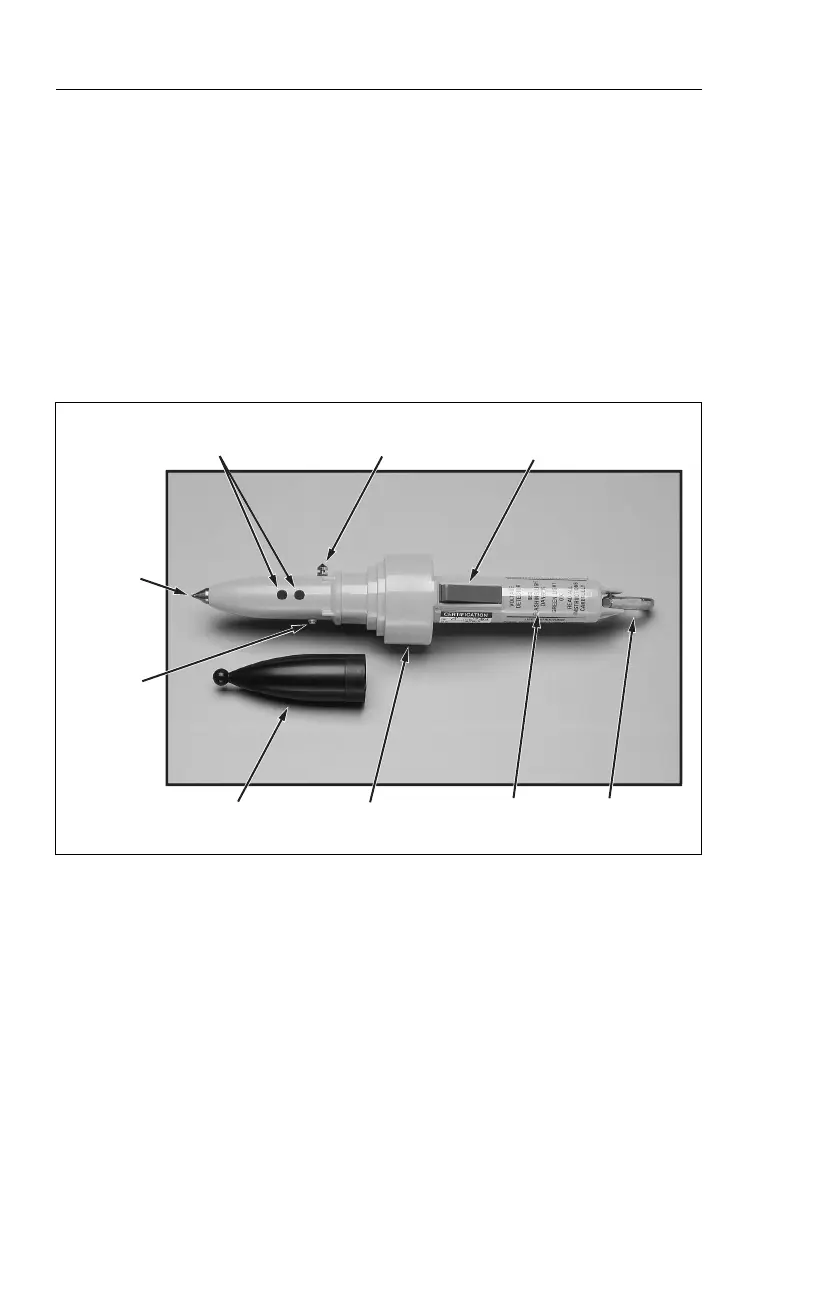

Figure 1. Voltage Detector
LEDs
(red and green)
Ground terminal Trigger
Flashguard
Check
contact
Conductive
end cap
Probe
tip
Instruction
label
Belt
clip
