Link Interface Adapter Features
Figure 2-9 explains the features of the standard link interface adapters.
DSP-LIA011
DSP-LIA012
2
1
3
o
71f.ep
1
DSP-LIA011 cable
and plug
Shielded Cat 5 twisted pair cable with a shielded Cat 5 RJ45
plug for testing basic link installations.
2 DSP-LIA012 jack Shielded Cat 5 RJ45 jack for testing channel installations.
3 Latch and 60-pin
connector
Latch and connector for attaching the LIA to a DSP-4100 test
tool.

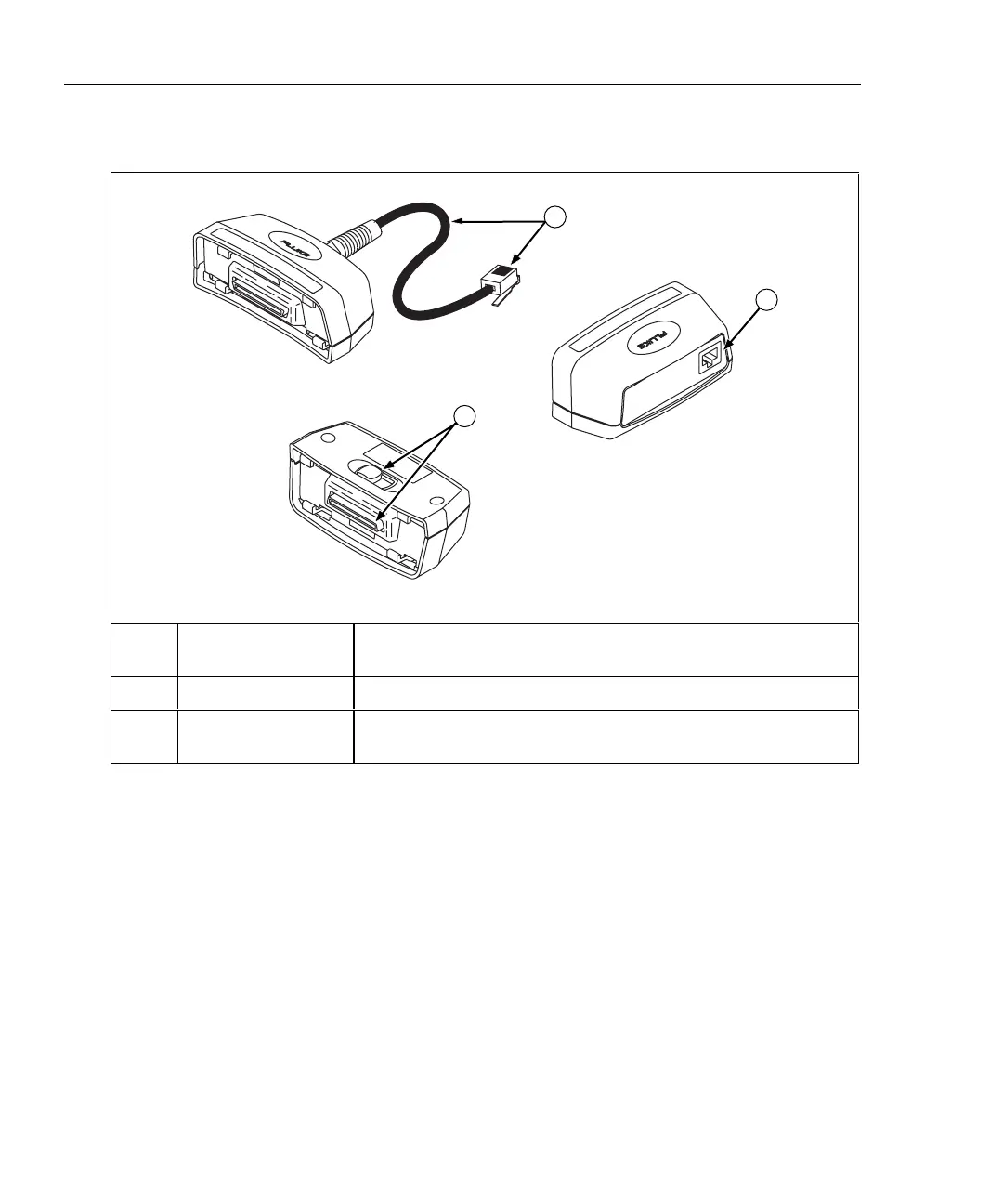

Figure 2-9. Link Interface Adapter Features
