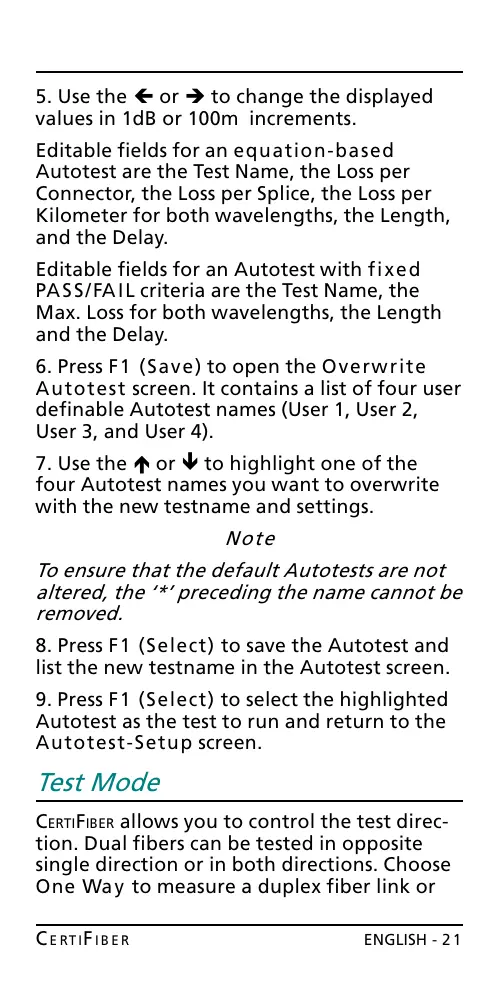

CERTIFIBER ENGLISH - 21
5. Use the ç or è to change the displayed
values in 1dB or 100m increments.
Editable fields for an equation-based
Autotest are the Test Name, the Loss per
Connector, the Loss per Splice, the Loss per
Kilometer for both wavelengths, the Length,
and the Delay.
Editable fields for an Autotest with fixed
PASS/FAIL criteria are the Test Name, the
Max. Loss for both wavelengths, the Length
and the Delay.
6. Press F1 (Save) to open the Overwrite
Autotest screen. It contains a list of four user
definable Autotest names (User 1, User 2,
User 3, and User 4).
7. Use the é or ê to highlight one of the
four Autotest names you want to overwrite
with the new testname and settings.
Note
To ensure that the default Autotests are not
altered, the * preceding the name cannot be
removed.
8. Press F1 (Select) to save the Autotest and
list the new testname in the Autotest screen.
9. Press F1 (Select) to select the highlighted
Autotest as the test to run and return to the
Autotest-Setup screen.
Test Mode
CERTIFIBER allows you to control the test direc-
tion. Dual fibers can be tested in opposite
single direction or in both directions. Choose
One Way to measure a duplex fiber link or
