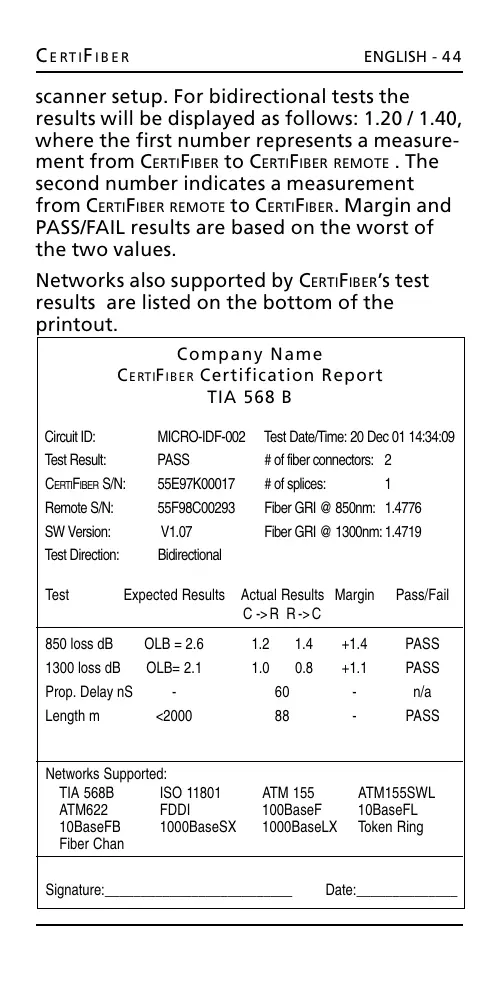

CERTIFIBER ENGLISH - 44
scanner setup. For bidirectional tests the
results will be displayed as follows: 1.20 / 1.40,
where the first number represents a measure-
ment from CERTIFIBER to CERTIFIBER REMOTE . The
second number indicates a measurement
from CERTIFIBER REMOTE to CERTIFIBER. Margin and
PASS/FAIL results are based on the worst of
the two values.
Networks also supported by CERTIFIBERs test
results are listed on the bottom of the
printout.
Company Name
CERTIFIBER Certification Report
TIA 568 B
Circuit ID: MICRO-IDF-002 Test Date/Time: 20 Dec 01 14:34:09
Test Result: PASS # of fiber connectors: 2
CERTIFIBER S/N: 55E97K00017 # of splices: 1
Remote S/N: 55F98C00293 Fiber GRI @ 850nm: 1.4776
SW Version: V1.07 Fiber GRI @ 1300nm: 1.4719
Test Direction: Bidirectional
Test Expected Results Actual Results Margin Pass/Fail
C ->R R ->C
850 loss dB OLB = 2.6 1.2 1.4 +1.4 PASS
1300 loss dB OLB= 2.1 1.0 0.8 +1.1 PASS
Prop. Delay nS - 60 - n/a
Length m <2000 88 - PASS
Networks Supported:
TIA 568B ISO 11801 ATM 155 ATM155SWL
ATM622 FDDI 100BaseF 10BaseFL
10BaseFB 1000BaseSX 1000BaseLX Token Ring
Fiber Chan
Signature:__________________________ Date:______________
