DTX-MFM2/GFM2/SFM2 Fiber Modules
Users Manual
8
amd37f.eps

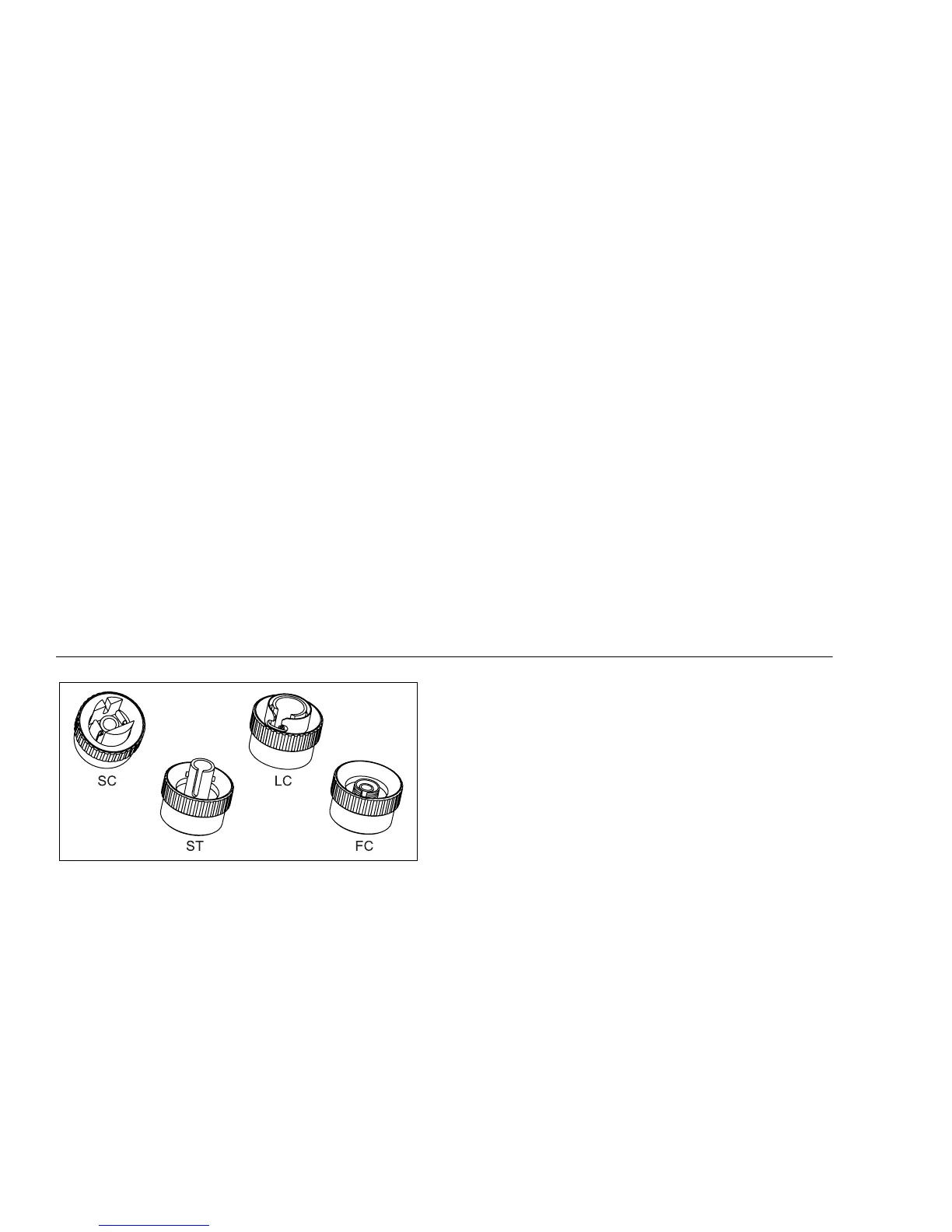

Figure 3. SC, ST, LC, and FC Connector Adapters
Installing the Connector Adapter
You can change the fiber module's input connector
adapter to connect to SC, ST, LC, and FC fiber connectors.
Additional adapter styles may be available. Check the
Fluke Networks web site for updates.
WCaution
•
Cover all connectors with dust caps when not in
use.
•
Store the connector adapters for the fiber module
in the canisters provided.
•
Do not touch the photodiode lens (see Figure 4).
•
Do not overtighten the adapter or use tools to
tighten the adapter.
To install a connector adapter, refer to Figure 4 and do the
following:
1
Locate the slot in the fiber module connector and the
key on the adapter ring.
2
Holding the adapter so it does not turn in the nut,
align the adapter's key with the module connector's
slot and slide the adapter onto the connector.
3
Screw the nut onto the module connector.
