7
The Product Series can accept the following connection cables:
• FEV300-CON-TY2 - Type 2 plug for test adapter EV charging
• FEV300-CON-TY1 - Type 1 plug for test adapter EV charging
Steps for connecting the test adapter to the charging station:
1. Connect the appropriate test cable to the Product.
2. Connect above assembly to the charging station to be tested.

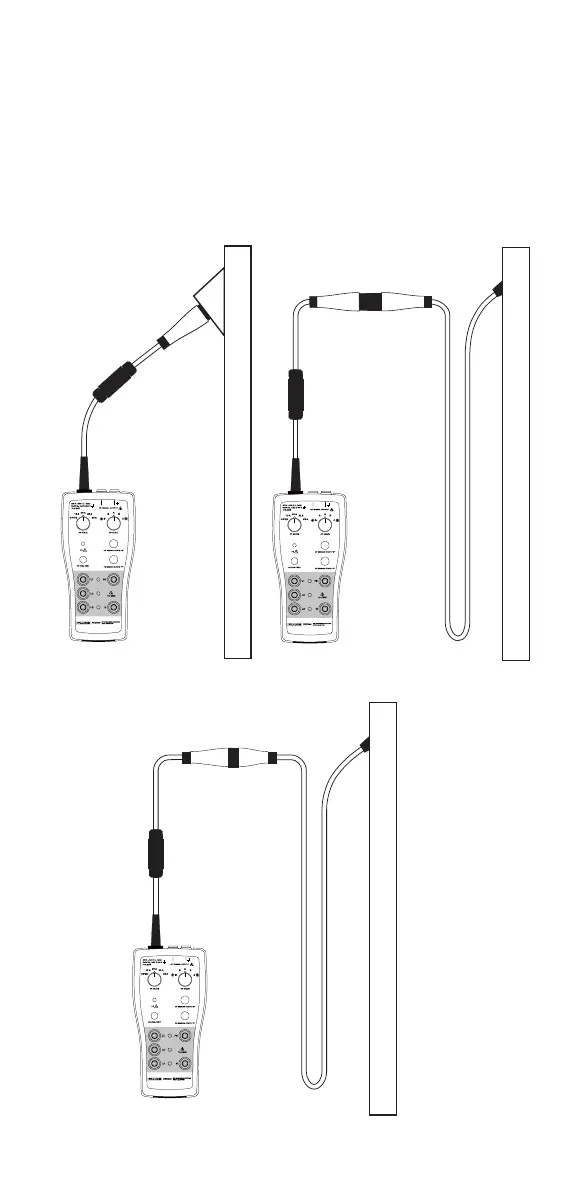

Proper test adapter connection to the charging station is shown in Figures 6,
7, and 8.
FEV300-CON-TY2
Type 2
(with panel mount
socket outlet)
Figure 6. Test adapter to Type 2
with panel
FEV300-CON-TY2
Charging Station Type 2
(with fixed cable)
Figure 7. Test adapter to Type 2
with xed cable
FEV300-CON-TY1
Charging Station Type 1
(with fixed cable)
Figure 8. Test adapter to Type 1 with xed cable
