Fluke II Series Service Manual

Introduction and Specifications
SPECIFICATIONS

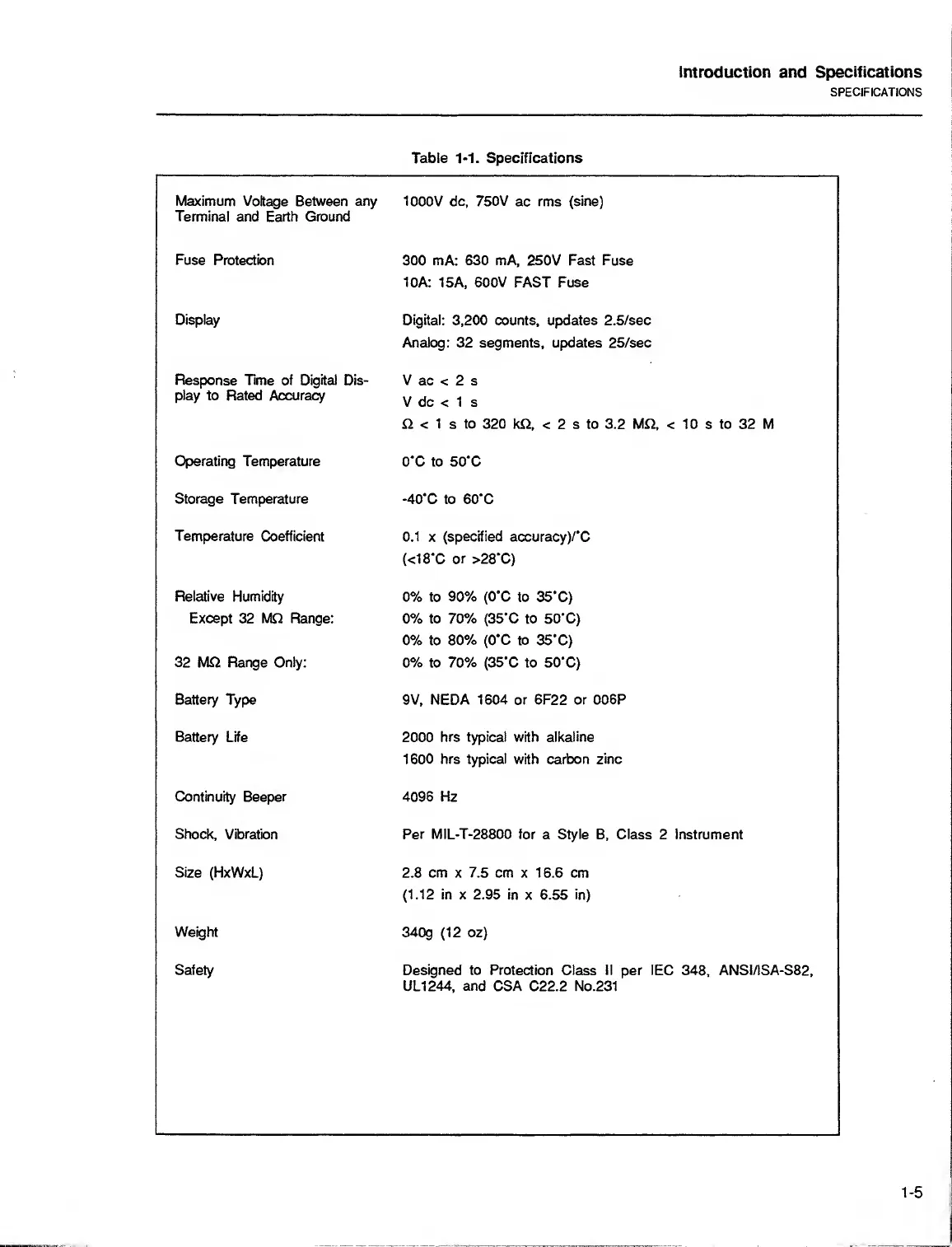

Table
1-1.
Specifications
Maximum Voltage Between any
Terminal and Earth Ground
1000V
dc, 750V
ac rms
(sine)
Fuse Protection
300 mA: 630 mA,
250V
Fast Fuse
10A: 15A,
600V
FAST Fuse
Display Digital:
3,200 counts, updates 2.5/sec
Analog: 32 segments, updates 25/sec
Response Time of Digital Dis-
play
to Rated Accuracy
V
ac < 2 s
V dc
<
1 s
n
< 1
s
to 320
k£2, <
2
s to 3.2 M£2, < 10
s
to 32 M
Operating Temperature
0*C to 50'C
Storage Temperature
-40‘C to 60*
C
Temperature
Coefficient 0.1
x
(specified
accuracy)/*C
(<18*C
or >28*C)
Relative Humidity
0% to
90%
(0*C to 35*C)
Except 32 Mfi Range:
0%
to
70%
(35’C to
50*
C)
0% to
80%
(0*C to 35’C)
32 M£2 Range Only:
0% to
70%
(35‘C to
50*C)
Battery Type
9V, NEDA 1604 or 6F22
or 006P
Battery
Life
2000
hrs typical
with
alkaline
1600 hrs typical with carbon zinc
Continuity
Beeper
4096
Hz
Shock, Vibration Per MIL-T-28800 for
a Style B, Class 2 Instrument
Size (HxWxL)
2.8
cm
x
7.5
cm x 16.6 cm
(1.12
in x 2.95 in
x 6.55
in)
Weight
340g (12
oz)
Safety Designed to Protection Class II
per IEC
348,
ANSI/ISA-S82,
UL1244,
and
CSA C22.2 No.231
1-5
