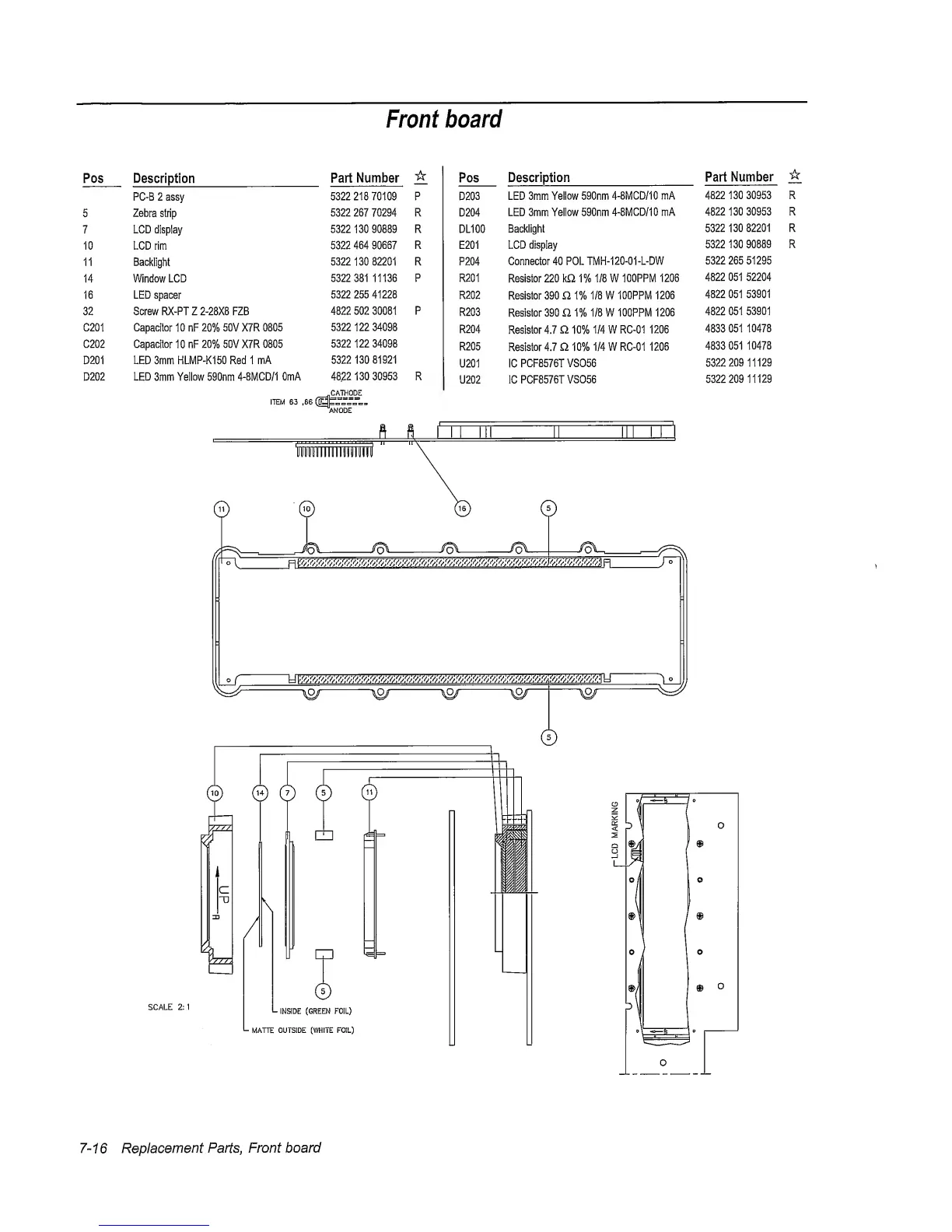

Front board
Pos
Description
Part
Number
PC-B 2 assy
5322 218 70109 P
5
Zebra
strip
5322
267
70294 R
7
LCD
display
5322 130 90889 R
10 LCD rim
5322 464
90667
R
11
Backlight
5322 130 82201 R
14
Window
LCD
5322 381 11136 P
16
LED
spacer
5322 255 41228
32 Screw RX-PTZ 2-28X8 FZB
4822 502 30081 P
C201
Capacitor 10
nP 20% 50V
X7R
0805
5322 122 34098
C202
Capacitor
10 nF 20% 50V
X7R
0805
5322 122 34098
D201 LED 3mm HLMP-K150 Red 1 mA
5322
130
81921
D202
LED
3mm
Yellow
590nm
4-8MCD/1 0mA
ITEM 63
4822
130 30953
CATHODE
.66
^NODE
R
Pos
Description
Part
Number
D203
LED 3mm Yellow 590nm
4-8MCD/10 mA
4822 130 30953 R
D204
LED
3mm
Yellow 590nm
4-8MCD/10 mA
4822
130 30953 R
DL100
Backlight
5322
130 82201 R
E201 LCD
display
5322 130
90889
R
P204
Connector 40 POL
TMH-120-01-L-DW
5322 265 51295
R201
Resistor 220 kO
1%
1/8 W
100PPM
1206
4822
051
52204
R202
Resistor 390 Q.
1%
1/8 W 100PPM
1206
4822
051
53901
R203
Resistor 390 Q.
1%
1/8 W 100PPM
1206
4822 051
53901
R204
Resistor
4J
Q
10%
1/4
W RC-01 1206
4833 051
10478
R205
Resistor
4.7
Q
10% 1/4
W RC-01
1206
4833 051
10478
U201 1C PCF8576T
VS056
5322
209 11129
U202 1C
PCF8576TVS056
5322 209 11129
7-16
Replacement
Parts,
Front board
