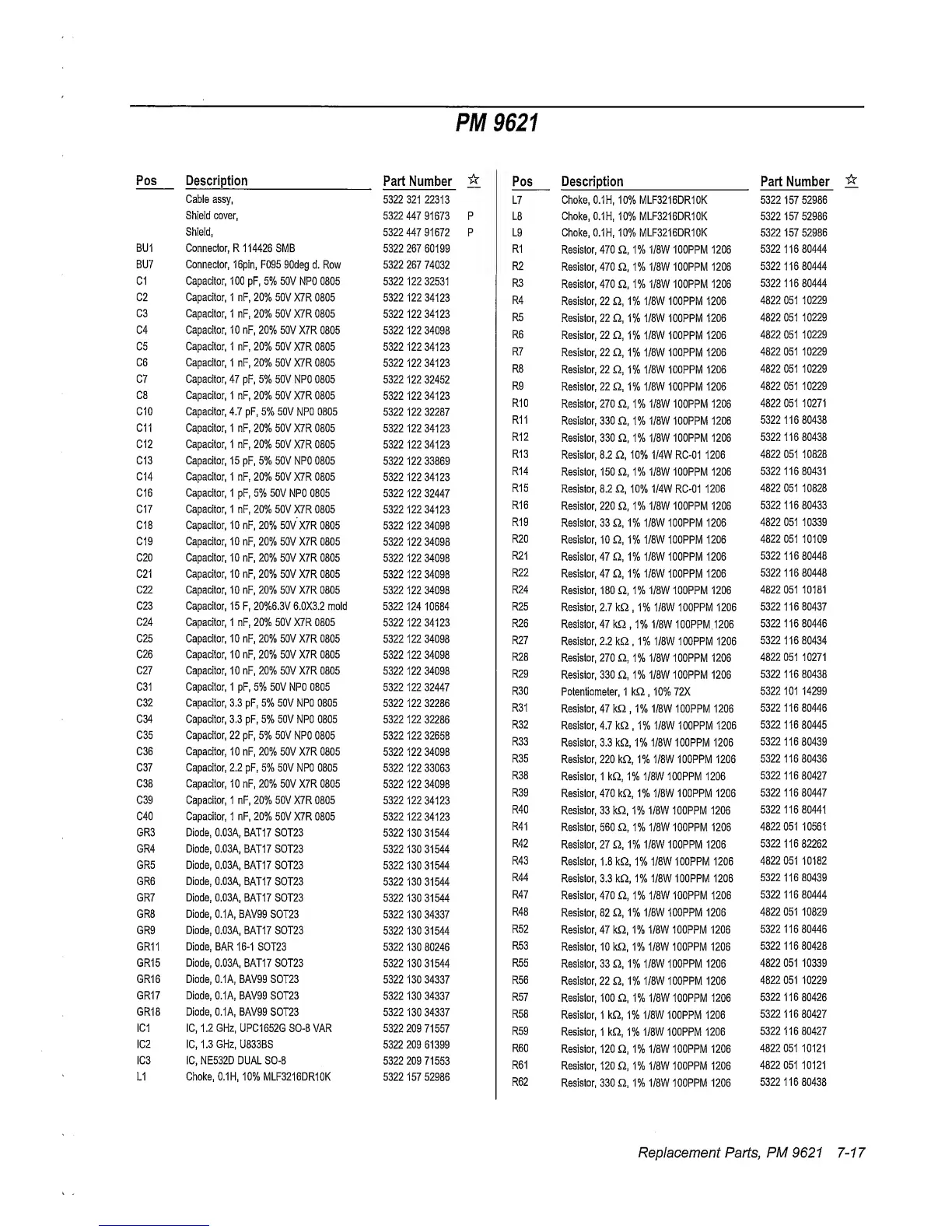

Fluke PM6681 - Page 95

PM
9621
Pos
Description
Part Number
Cable assy,
5322
321 22313
Shield
cover,
5322
447 91673 P
Shield,
5322
447 91672 P
BU1
Connector,
R 114426 SMB
5322 267 60199
BU7 Connector,
16pin,
F095
90deg
d. Row 5322
267
74032
C1 Capacitor,
100
pF. 5% 50V NPO 0805 5322 122
32531
C2 Capacitor, 1 nF,
20% 50V X7R 0805 5322 122
34123
C3
Capacitor,
1 nF,
20%
50V X7R 0805
5322 122 34123
C4 Capacitor, 10 nF,
20% 50V X7R 0805 5322 122
34098
C5 Capacitor, 1 nF,
20%
50V
X7R
0805
5322 122
34123
C6 Capacitor,
1 nF, 20% 50V X7R 0805
5322
122 34123
C7 Capacitor,
47
pF. 5% 50V NPO 0805 5322
122 32452
C8
Capacitor,
1 nF,
20%
50V X7R 0805
5322 122 34123
C10 Capacitor,
4.7
pF.
5%
50V
NPO 0805
5322 122 32287
C11
Capacitor,
1 nF,
20%
50V X7R 0805
5322 122 34123
C12 Capacitor, 1 nF,
20%
50V
X7R
0805
5322 122
34123
C13 Capacitor,
15
pF,
5%
50V NPO 0805
5322 122 33869
C14
Capacitor,
1 nF,
20%
50V X7R 0805
5322 122 34123
C16 Capacitor,
1
pF,
5% 50V NPO 0805 5322
122 32447
C17 Capacitor, 1 nF,
20% 50V X7R 0805 5322 122
34123
C18 Capacitor, 10 nF,
20% 50V X7R 0805 5322 122
34098
C19
Capacitor, 10
nF,
20%
50V X7R 0805
5322 122 34098
C20 Capacitor,
10
nF,
20%
50V X7R 0805
5322
122 34098
C21
Capacitor,
10 nF,
20%
50V
X7R
0805
5322 122 34098
C22
Capacitor,
10 nF,
20%
50V X7R 0805
5322 122 34098
C23 Capacitor,
15
F, 20%6.3V 6.0X3.2 mold
5322
124 10684
C24
Capacitor,
1 nF,
20%
50V X7R 0805
5322 122 34123
C25 Capacitor, 10 nF,
20%
50V
X7R
0805
5322 122
34098
C26 Capacitor, 10 nF,
20%
50V X7R 0805
5322 122 34098
C27
Capacitor,
10 nF,
20%
50V X7R 0805
5322 122 34098
C31 Capacitor,
1
pF,
5%
50V
NPO
0805
5322 122
32447
C32 Capacitor,
3.3
pF,
5%
50V NPO 0805
5322 122 32286
C34 Capacitor,
3.3
pF, 5% 50V NPO 0805 5322
122 32286
C35 Capacitor.
22
pF,
5%
50V
NPO 0805 5322 122 32658
C36
Capacitor,
10 nF,
20%
50V X7R 0805
5322 122 34098
C37
Capacitor,
2.2
pF,
5%
50V NPO 0805
5322 122 33063
C38
Capacitor,
10 nF,
20%
50V X7R 0805
5322 122 34098
C39 Capacitor, 1 nF,
20% 50V X7R 0805 5322
122
34123
C40 Capacitor,
1
nF.
20% 50V X7R 0805 5322
122
34123
GR3 Diode. 0.03A, BAT17 SOT23
5322 130
31544
GR4 Diode, 0.03A,
BAT17 SOT23
5322 130
31544
GR5 Diode,
0.03A,
BAT17
SOT23 5322
130 31544
GR6 Diode, 0.03A,
BAT17
SOT23 5322
130
31544
GR7
Diode,
0.03A, BAT17 SOT23
5322
130 31544
GR8 Diode,
0.1A,
BAV99
SOT23 5322
130 34337
GR9
Diode,
0.03A, BAT17 SOT23
5322 130 31544
GR11
Diode,
BAR
16-1
SOT23 5322
130 80246
GR15 Diode, 0.03A, BAT17 SOT23
5322 130
31544
GR16 Diode, 0.1A, BAV99 SOT23
5322 130
34337
GR17 Diode, 0.1A, BAV99 SOT23
5322 130 34337
GR18
Diode, 0.1A,
BAV99
SOT23 5322
130 34337
IC1
1C,
1.2
GHz,
UPC1652G SO-8VAR
5322
209 71557
IC2 IC,1.3
GHz,
U833BS
5322 209 61399
ICS 1C, NE532D DUAL SO-8
5322 209
71553
L1 Choke. 0.1H,
10% MLF3216DR10K
5322 157 52986
Pos
Description
Part Number
L7 Choke,
0.1H,10%MLF3216DR10K
5322
157
52986
L8
Choke.
0.1H, 10%MLF3216DR10K 5322 157 52986
L9
Choke,
0.1H, 10%
MLF3216DR10K
5322 157
52986
R1
Resistor, 470
Q,
1%
1/8W 100PPM 1206
5322
116
80444
R2
Resistor, 470
Q., 1%
1/8W 100PPM 1206
5322
116
80444
R3
Resistor, 470
Q,
1%
1/8W 100PPM 1206
5322
116 80444
R4
Resistor, 22
Q.
1%
1/8W 100PPM 1206
4822 051
10229
R5
Resistor,
22 Cl,
1%
1/8W 100PPM
1206
4822 051
10229
R6
Resistor, 22 Cl,
1%
1/8W 100PPM
1206
4822
051
10229
R7
Resistor, 22 Cl,
1%
1/8W 100PPM
1206
4822 051 10229
R8
Resistor, 22 Cl,
1%
1/8W 100PPM
1206
4822 051 10229
R9
Resistor,
22
0. 1%
1/8W 100PPM 1206
4822 051 10229
RIO
Resistor,
270 Cl,
1%
1/8W 100PPM
1206
4822 051 10271
R11
Resistor, 330 Cl,
1%
1/8W 100PPM
1206
5322 116 80438
R12
Resistor. 330 Cl,
1%
1/8W 100PPM 1206
5322 116 80438
R13
Resistor, 8.2 Cl,
10%
1/4W
RC-01
1206
4822
051
10828
R14
Resistor. 150 Cl,
1%
1/8W 100PPM 1206
5322 116 80431
R15
Resistor,
8,2 Cl,
10%
1/4W RC-01
1206
4822 051 10828
R16
Resistor. 220 Cl,
1%
1/8W 100PPM 1206
5322
116 80433
R19
Resistor. 33 Cl,
1%
1/8W 100PPM 1206
4822 051 10339
R20
Resistor, 10 Cl,
1%
1/8W 100PPM
1206
4822
051
10109
R21
Resistor, 47 Cl,
1%
1/8W 100PPM 1206
5322
116 80448
R22
Resistor. 47 Cl,
1%
1/8W
100PPM
1206
5322 116 80448
R24
Resistor. 180 Cl,
1%
1/8W 100PPM 1206
4822 051 10181
R25
Resistor, 2.7 kCl
,
1%
1/8W
100PPM
1206
5322
116
80437
R26
Resistor. 47 ka
,
1%
1/8W 100PPM.1206
5322 116 80446
R27
Resistor, 2.2 kCl
.
1% 1/8W 100PPM 1206
5322
116 80434
R28
Resistor. 270 Cl,
1%
1/8W 100PPM 1206
4822 051 10271
R29
Resistor. 330 Cl,
1%
1/8W 100PPM 1206
5322 116 80438
R30
Potentiometer,
1 kQ
,
10%
72X
5322 101 14299
R31
Resistor,
47 kQ
,
1%
1/8W 100PPM
1206
5322
116
80446
R32
Resistor,
4.7 kQ
,
1%
1/8W 100PPM
1206
5322
116
80445
R33
Resistor. 3.3 kQ,
1%
1/8W 100PPM 1206
5322
116
80439
R35
Resistor. 220 kQ,
1%
1/8W 100PPM 1206
5322 116 80436
R38
Resistor, 1 kQ,
1%
1/8W 100PPM 1206
5322
116
80427
R39
Resistor. 470 kQ,
1%
1/8W 100PPM 1206
5322 116 80447
R40
Resistor,
33
kQ,
1%
1/8W 100PPM 1206
5322 116
80441
R41
Resistor, 560
Cl,
1%
1/8W 100PPM 1206
4822 051 10561
R42
Resistor. 27
Q,
1%
1/8W 100PPM 1206
5322
116
82262
R43
Resistor, 1.8 kQ,
1%
1/8W
100PPM
1206
4822
051
10182
R44
Resistor. 3.3 kQ.
1%
1/8W 100PPM 1206
5322
116 80439
R47
Resistor,
470
Q,
1%
1/8W
100PPM
1206
5322 116
80444
R48
Resistor, 82
Q,
1%
1/8W 100PPM 1206
4822 051 10829
R52
Resistor. 47 kQ,
1%
1/8W 100PPM 1206
5322 116 80446
R53
Resistor. 10 kQ,
1%
1/8W 100PPM 1206
5322 116 80428
R55
Resistor. 33
Q,
1%
1/8W 100PPM 1206
4822 051 10339
R56
Resistor, 22
Q,
1%
1/8W 100PPM 1206
4822 051 10229
R57
Resistor, 100
Q,
1%
1/8W 100PPM 1206
5322 116
80426
R58
Resistor,
1
kQ,
1%
1/8W 100PPM
1206
5322 116
80427
R59
Resistor,
1 kQ,
1%
1/8W 100PPM
1206
5322
116
80427
R60
Resistor. 120
Q,
1%
1/8W 100PPM 1206
4822 051 10121
R61
Resistor, 120
Q,
1%
1/8W 100PPM
1206
4822
051 10121
R62
Resistor,
330
Q.
1%
1/8W 100PPM 1206
5322 116 80438
Replacement Parts,
PM
9621
7-17
