Fluke T5-1000 Instruction Sheet

Measuring AC Current (A)
0.5"(12.9 mm)
maximum
A
AC
ex1.eps
• Range: 0 A to 100.0 A;
45 Hz to 66 Hz
• Remove probes from test
points.

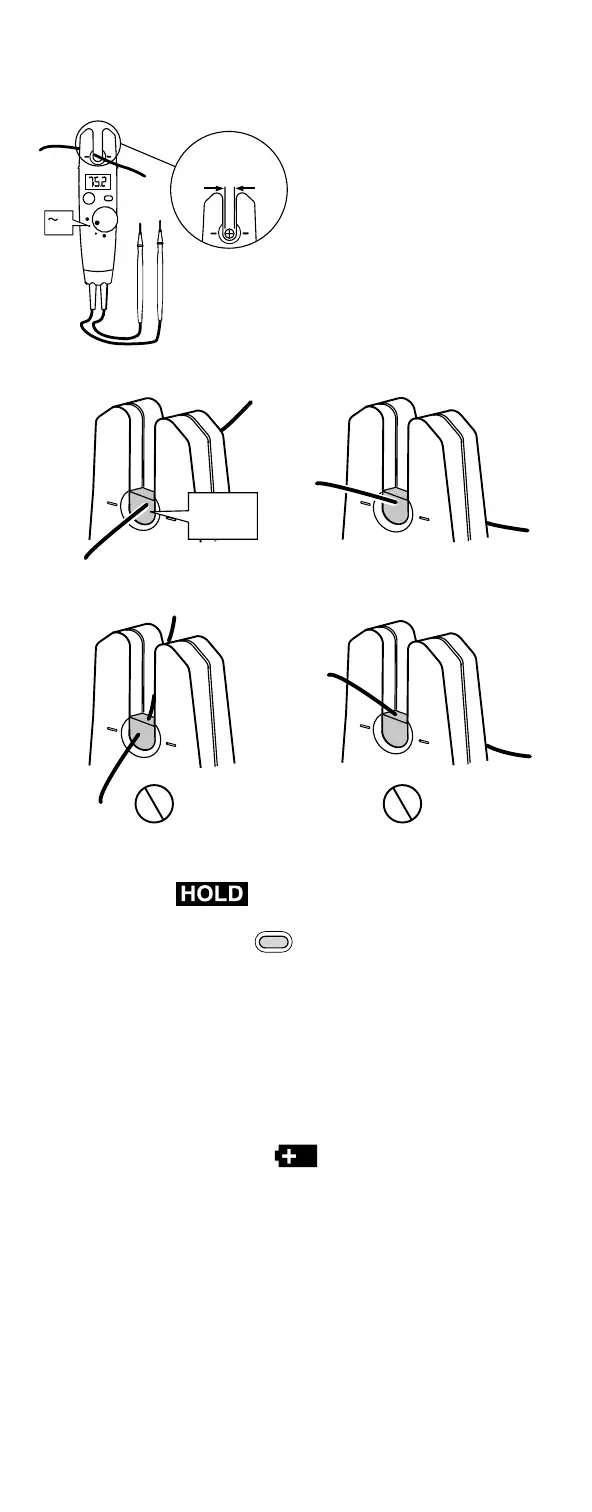

• Place conductor anywhere
within the sensor zone
(shaded area shown below).
OKOK
OK
OK
Sensor
Zone
ex5.eps
Display Hold
To hold the reading on the display, press and release HOLD.
The voltage indicator LED (
) continues to operate.
To exit the display hold mode, press and release HOLD again, or
turn the rotary switch to a new position.
Automatic Power Down
The tester turns off automatically if you do not turn the rotary
switch or press HOLD for approximately 34 minutes. To resume
operation, turn the tester off, wait two seconds, then turn the
tester on.
Low Battery Indicator
W
Warning
To avoid false readings, which could lead to
possible electric shock or personal injury, replace
the battery as soon as the low battery indicator
(M) appears.

Fluke T5-1000 Specifications

General

Safety Rating	CAT III 1000 V, CAT IV 600 V
Display Type	Digital
Continuity Beeper	Yes
OpenJaw Current Measurement	Yes
Resistance Measurement Range	1000 Ω
Dimensions	203 x 51 x 30 mm (8.0 x 2.0 x 1.2 in)
