T5-600/T5-1000
Electrical Tester
6
21 cm
(~8.25")
10 turns of #14
single-conductor
magnet wire
Separate into two 5-turn coils.
Use cable ties to
hold coils together
Connect to Calibrator
Mount Banana
plugs on wire end
qp7f.eps

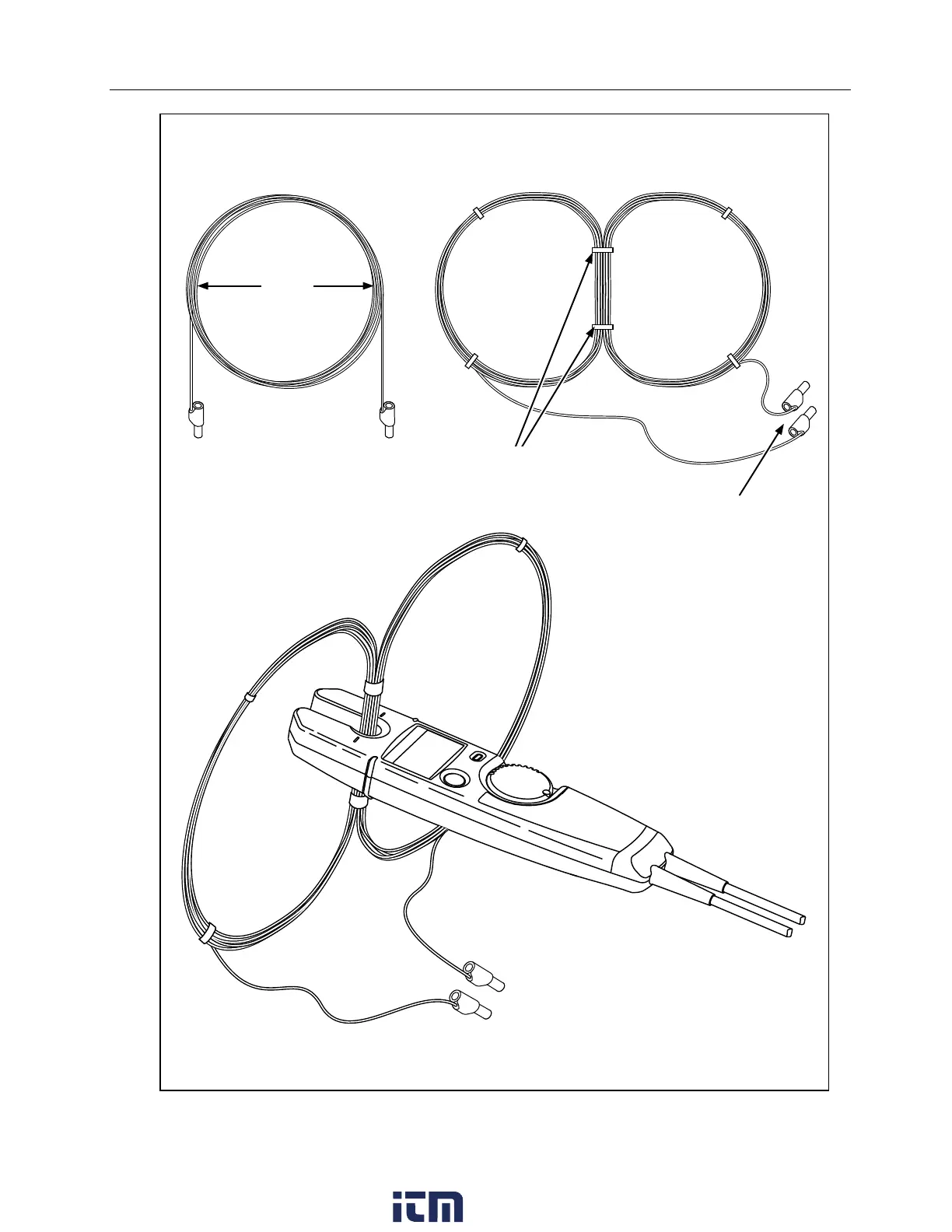

Figure 1. Making the Butterfly Coil
