14. When you encounter any malfunction in use of the machine, contact the retailer or send the
machine to the nearest service center.
15. In case of parts replacements, order ORIGINAL replacement parts from a concessionaire or
authorized retailer.
16. Tampering with any part of the machine will cause invalidation of the warranty.
3. Assembly
Unpacking
Carefully take all parts out of the box, check the device for missing and/or damaged parts. When this
is the case, please contact your supplier/retailer immediately.

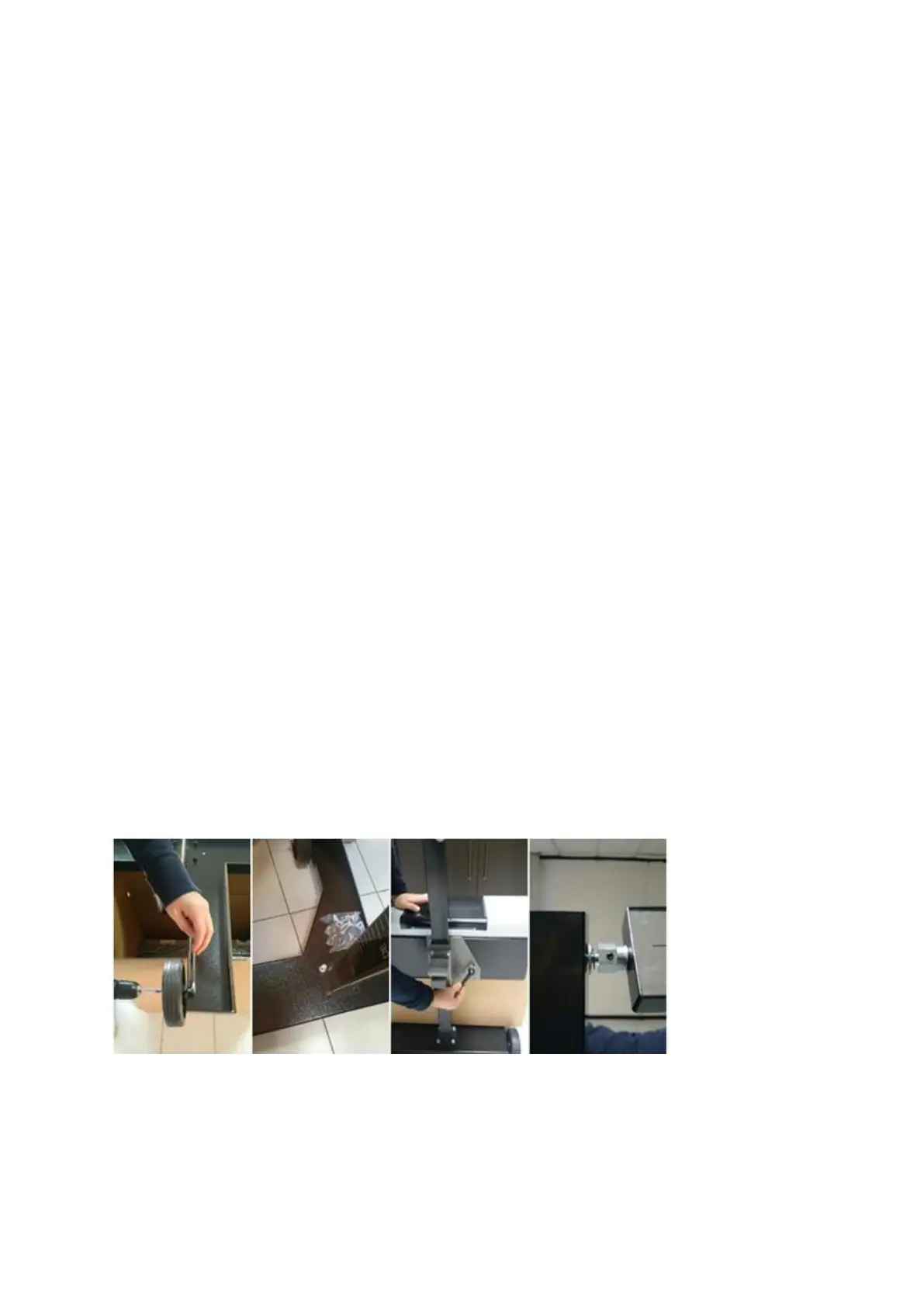

Assembly
1. Mount the wheels to the base (1).
2. Mount the column to the base using the 4 M8 bolts, washers and M8 nuts. CAUTION! When
standing in front of the base, the height meter must be on the right side! Align the holes of
the column and base, place a washer over the bolt and put the bolts through the holes from
above. Now slide a washer over the bolt and turn the nut on hand tight, repeat for the other
three bolts. Now tighten the bolts firmly crosswise (2).
3. Now place the sliding runner over the column, squeeze the lever in order to slide the sliding
runner over the column, make sure the sliding runner is placed in the correct direction (The
lever on the right side of the meter). Now mount the optical chamber to the sliding device,
use the M8 Allen bolt and M8 washer to mount the chamber on the left upper side of the
sliding device. Use the M8 bolt with trip lever and M8 washer to mount the lower right side
of the optical chamber to the sliding device (3).
4. Now the mirror is to be mounted, remove the spring from the bolt, place the M8 bolt with
small washer inside the column. Place the spring over the bolt inside the column and place
the big washer over the bolt, now mount the mirror by turning the mirror onto the bolt, then
secure with Allen bolt (4).
