Fly Sky FS-i6 - FS-iA6 B Receiver and Servo Connections

9.02. FS-IA6B接收机与伺服器连接 Receiver and servo connections
为了让发射及接收距离更远，请注意以下几点：
1、尽量保证双天线笔直，否则将会减小控制范围；
2、双天线的夹角保持在90°(如图三种方式)， 这并不是精确的垂直角度，重要的是尽可能保持天线互相远离；
3、天线应该尽可能远离金属导体，至少要有l.5cm左右的距离。轴电缆段不受此限制，但不要过度弯曲；
4、尽可能保持天线远离电动机、调速器，和其它的噪声源。
接收机
Receiver
( Pic 11.1 )
( Pic 11.2 )

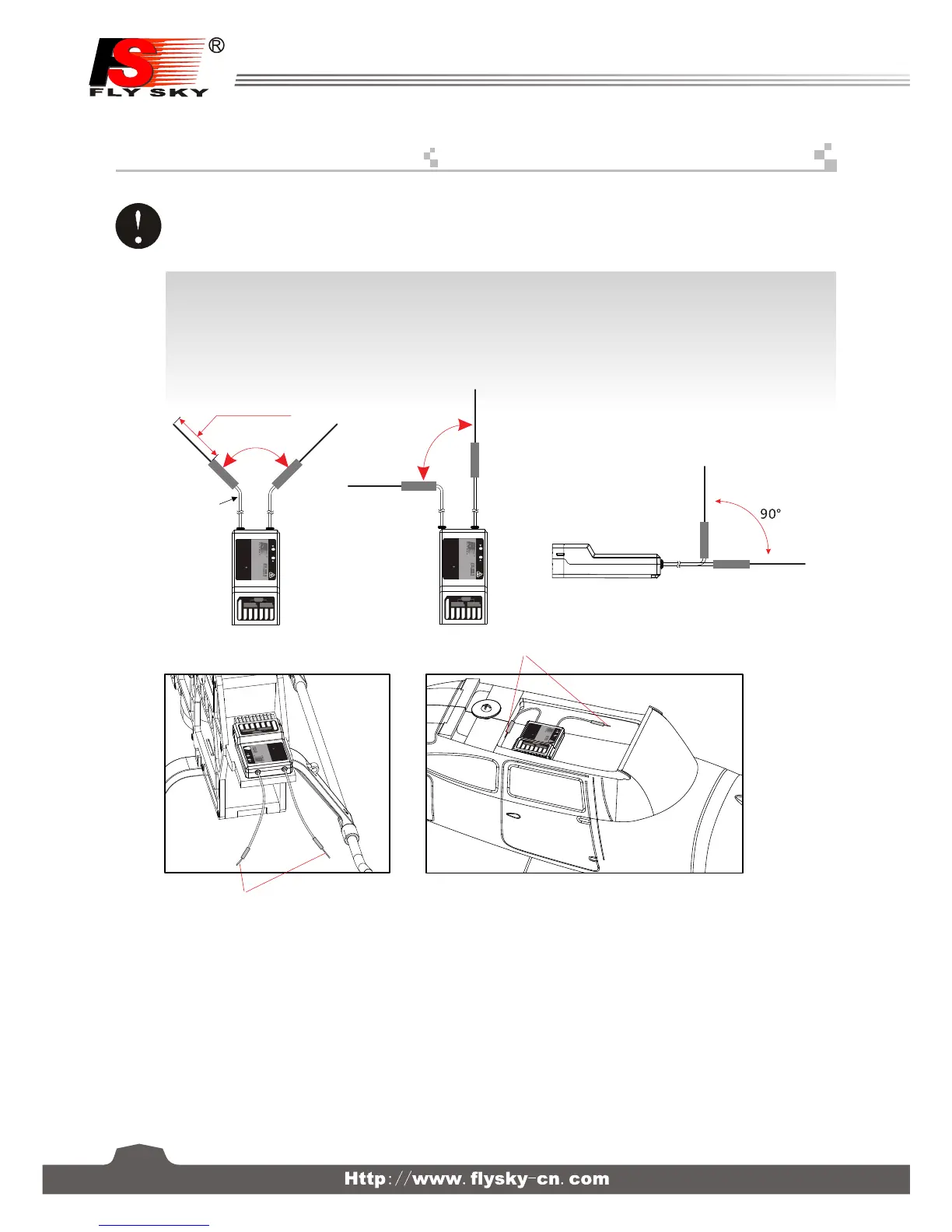

In order to make sure maximum distance between the transmitter and receive can be obtained please follow the
directions below:
1. The two antennas must be kept as straight as possible. Otherwise, control range will be reduced.
2. The two antennas should be placed at a 90 degree angle to each other, as illustrated in the three pictures below.
3. The antennas must be kept away from conductive materials, such as metal and carbon. A distance of at least 15 cm
is required for safe operation. Conductive materials will not affect the coaxial part of the antenna, but it is important
that the coaxials are not bent to a severe radius.
4. Keep antennas away from the motor, speed controller and other noise souces as much as possible.
天线(26mm)
同轴电缆
90°
90°
接收机
Receiver
( Pic 11.3 )
接收机
Receiver
Coaxial cable
天线
天线 Antenna
Antenna
SER VOSEN S
CH5
CH6
B/VC C
CH2
CH3
CH4
PPM/ CH1
i-B US
A
LED
UPDATE
FS-IA6B
6 CHANNELS RECEI VER
2.4
GHz
4.0 -6.5V /DC
SER VOSEN S
CH5
CH6
B/VC C
CH2
CH3
CH4
PPM/ CH1
i-B US
A
LED
UPDATE
FS-IA6B
6 CHANNELS RECEI VER
2.4
GHz
4.0 -6.5V /DC
SERVOSENS
CH5
CH6
B/VCC
CH2
CH3
CH4
PPM/CH1
i-BUS
A
LED
UPDATE
FS-IA6B
6 CHANNELS RECEI VER
2.4
GHz
4.0-6.5V/DC
SERVOSENS
CH5
CH6
B/VCC
CH2
CH3
CH4
PPM/CH1
i-BUS
A
LED
UPDATE
FS-IA6B
6 CHANNELS RECEI VER
2.4
GHz
4.0-6.5V/DC
11
